MAN86 Series

Catalog

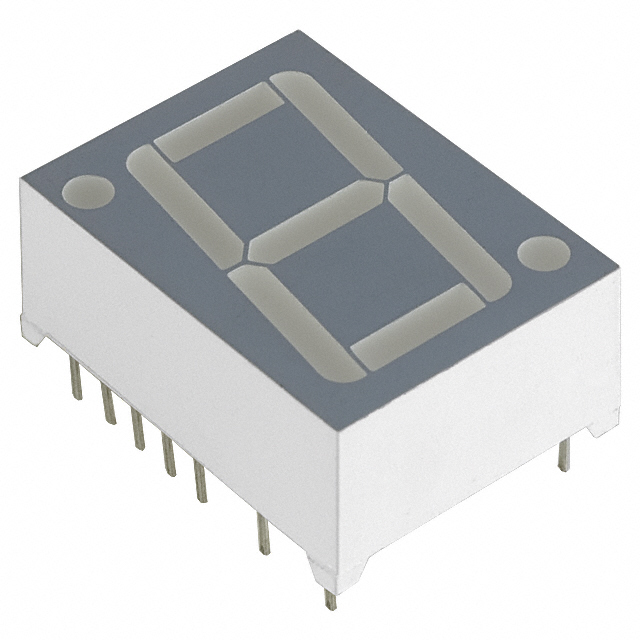

DISP 7SEG 0.8" SGL ORG-RED 18DIP

Part	Current - Test	Color	Voltage - Forward (Vf) (Typ) [Max]	Power Dissipation (Max) [Max]	Millicandela Rating	Digit/Alpha Size	Digit/Alpha Size	Package / Case	Package / Case	Package / Case	Display Type	Common Pin	Number of Characters [custom]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Wavelength - Peak
ON Semiconductor MAN8640	20 mA	Orange-Red	2.5 V	600 mW	2.2 mcd	20.32 mm	0.8 in	0.6 in 14 Leads	18-DIP	15.24 mm	7-Segment	Common Cathode	1	0.985 in	10.54 mm	18.67 mm	0.415 in	25.02 mm	0.735 in	630 nm
ON Semiconductor MAN8610	20 mA	Orange-Red	2.5 V	600 mW	2.2 mcd	20.32 mm	0.8 in	0.6 in 14 Leads	18-DIP	15.24 mm	7-Segment	Common Anode	1	0.985 in	10.54 mm	18.67 mm	0.415 in	25.02 mm	0.735 in	630 nm
