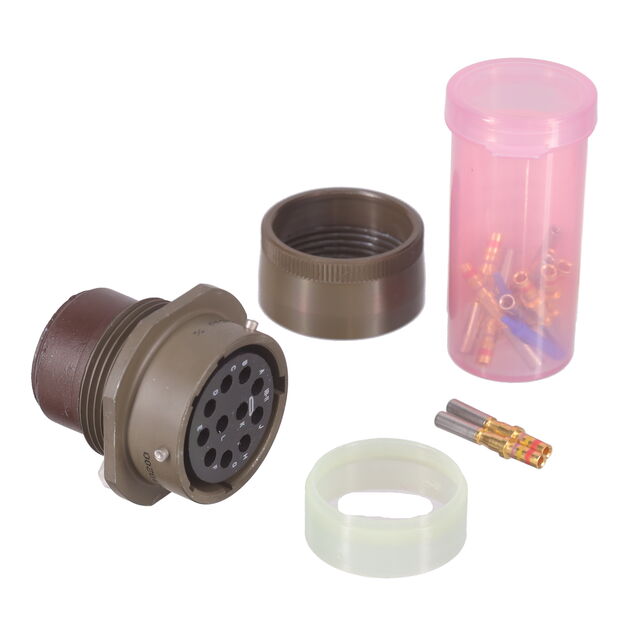

MS3121E18 Series
Manufacturer: Amphenol Industrial Operations
Catalog
RECEPT
| Part | Contact Finish - Mating | Orientation | Color | Primary Material | Shell Finish | Shell Material | Shell Size - Insert | Backshell Material, Plating | Voltage Rating | Qualification | Ingress Protection | Contact Material | Insert Material | Fastening Type | Termination | Shielding | Features | Connector Type | Mounting Type | Grade | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Number of Positions | Current Rating (Amps) | Shell Size - Insert [Max] | Shell Size - Insert [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations | |||||||||||||||||||||||||||
 Amphenol Industrial Operations | Gold | N | Olive Drab | Metal | Olive Drab Chromate over Cadmium | Aluminum | 18-11 | Aluminum Olive Drab Chromate over Cadmium | 1000 VAC | MIL-DTL-26482 Series I | Environment Resistant | Copper Alloy | Neoprene | Bayonet Lock | Crimp | Unshielded | Backshell | Receptacle Female Sockets | Free Hanging (In-Line) | Military | -55 °C | 125 °C | Aerospace Communication Systems Industrial Instrumentation Mass Transit Military | 11 | 13 A | ||
Amphenol Industrial Operations | Gold | N | Olive Drab | Metal | Olive Drab Chromate over Cadmium | Aluminum | Aluminum Olive Drab Chromate over Cadmium | MIL-DTL-26482 Series I | Environment Resistant | Copper Alloy | Neoprene | Bayonet Lock | Crimp | Unshielded | Backshell | Male Pins Receptacle | Free Hanging (In-Line) | Military | -55 °C | 125 °C | Aerospace Communication Systems Industrial Instrumentation Mass Transit Military | 32 | 18 |
