745073 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

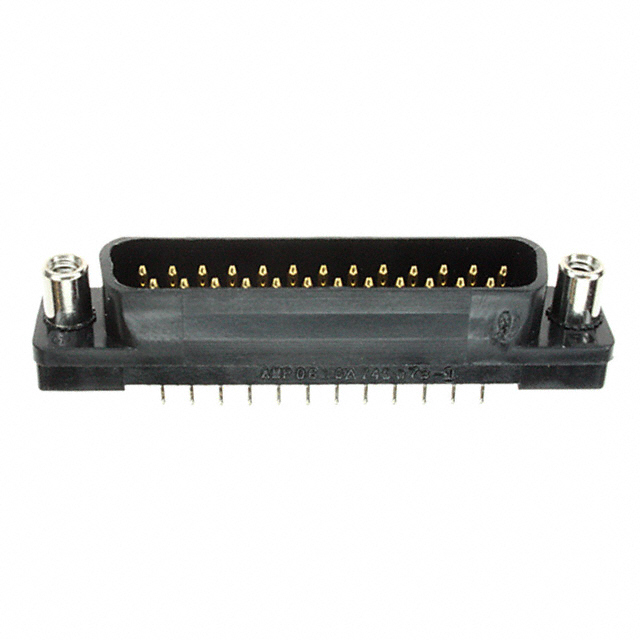

CONN D-SUB PLUG 25POS VERT SLDR
| Part | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Color | Dielectric Material | Contact Material | Mounting Type | Contact Type | Connector Type | Termination | Number of Rows [custom] | Number of Positions | Connector Style | Material Flammability Rating | Contact Finish | Current Rating (Amps) | Flange Feature | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Contact Finish Thickness | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 125 VDC | -55 C | 105 ░C | Black | Polyester | Brass | Through Hole | Signal | Plug Male Pins | Solder | 2 | 25 | D-Sub | UL94 V-0 | Gold | 6 A | 4-40 Mating Side Female Screwlock | B DB | 3 | Flash | ||
 TE Connectivity AMP Connectors | 125 VDC | -55 C | 105 ░C | Black | Polyester | Brass | Through Hole | Signal | Plug Male Pins | Solder | 2 | 25 | D-Sub | UL94 V-0 | Gold | 6 A | 4-40 Mating Side Female Screwlock | B DB | 3 | Flash | ||
 TE Connectivity AMP Connectors | 125 VDC | -55 C | 105 ░C | Black | Polyester | Brass | Through Hole | Signal | Plug Male Pins | Solder | 2 | 25 | D-Sub | UL94 V-0 | Gold | 6 A | 4-40 Mating Side Female Screwlock | B DB | 3 | 30 Áin | 0.76 Ám |
