MLW3012 Series

Catalog

SNAP-IN MINIATURE ROCKER

Part	Electrical Life	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Switch Function	Actuator Type	Approval Agency	Circuit	Mounting Type	Features	Actuator Marking	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Current Rating (Amps)	Voltage Rating - DC	Termination Style	Illumination Voltage (Nominal)	Illumination Type, Color	Color - Actuator/Cap	Panel Cutout Dimensions	Panel Cutout Dimensions [custom]

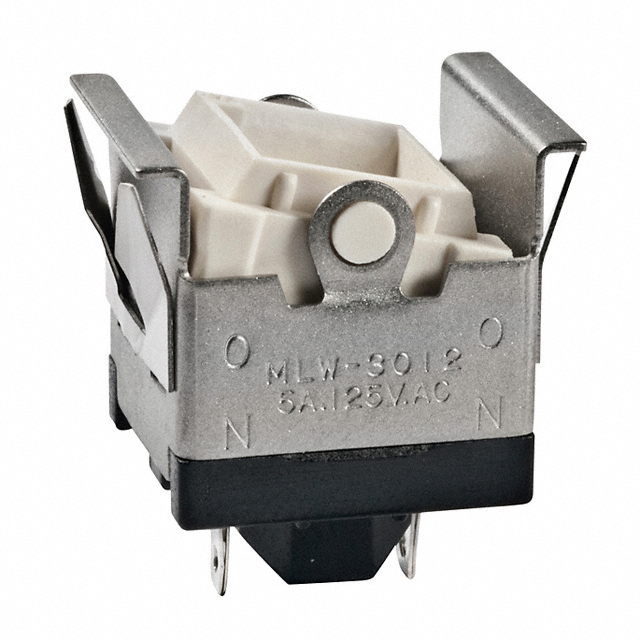

NKK Switches MLW3012/U	10000 Cycles	30000 Steps	50 °C	-10 °C	125 V	On-On	Actuator Arm Cap Required	UL	SPDT	Panel Mount Snap-In	Epoxy Sealed Terminals	Varies by Cap	16.7 mm	18.7 mm	5 A	30 V	Solder Lug
NKK Switches MLW3012-12-PC-1A	10000 Cycles	30000 Steps	50 °C	-10 °C	125 V	On-On	Paddle - Illuminated	UL	SPDT	Panel Mount Snap-In	Epoxy Sealed Terminals	No Marking	16.7 mm	18.7 mm	3 A 5 A	30 V	Solder Lug	12 VAC	Incandescent Red	Red
NKK Switches MLW3012-00-PA-1A	10000 Cycles	30000 Steps	50 °C	-10 °C	125 V	On-On	Paddle	UL	SPDT	Panel Mount Snap-In	Epoxy Sealed Terminals	No Marking	16.7 mm	18.7 mm	3 A 5 A	30 V	Solder Lug			Black
NKK Switches MLW3012-F-SC-1A	10000 Cycles	30000 Steps	50 °C	-10 °C	125 V	On-On	Sculptured - Illuminated	UL	SPDT	Panel Mount Snap-In	Epoxy Sealed Terminals	No Marking	16.7 mm	18.7 mm	3 A 5 A	30 V	Solder Lug	1.85 VDC	Green LED	Red
NKK Switches MLW3012-E-SC-1A	10000 Cycles	30000 Steps	50 °C	-10 °C	125 V	On-On	Sculptured - Illuminated	UL	SPDT	Panel Mount Snap-In	Epoxy Sealed Terminals	No Marking	16.7 mm	18.7 mm	3 A 5 A	30 V	Solder Lug	1.85 VDC	LED Yellow	Red
NKK Switches MLW3012-F-LB-1A	10000 Cycles	30000 Steps	50 °C	-10 °C	125 V	On-On	Concave (Curved) - Illuminated	UL	SPDT	Panel Mount Snap-In	Epoxy Sealed Terminals	No Marking	16.7 mm	18.7 mm	3 A 5 A	30 V	Solder Lug	2.1 VDC	Green LED	White
NKK Switches MLW3012-28-RD-2A	10000 Cycles	30000 Steps	50 °C	-10 °C	125 V	On-On	Concave (Curved) - Illuminated	UL	SPDT	Panel Mount Snap-In	Epoxy Sealed Terminals	No Marking			3 A 5 A	30 V	Solder Lug	28 VAC	Incandescent Orange	Orange	19.2 mm²
NKK Switches MLW3012-C-SC-1A	10000 Cycles	30000 Steps	50 °C	-10 °C	125 V	On-On	Sculptured - Illuminated	UL	SPDT	Panel Mount Snap-In	Epoxy Sealed Terminals	No Marking	16.7 mm	18.7 mm	3 A 5 A	30 V	Solder Lug	1.85 VDC	LED Red	Red

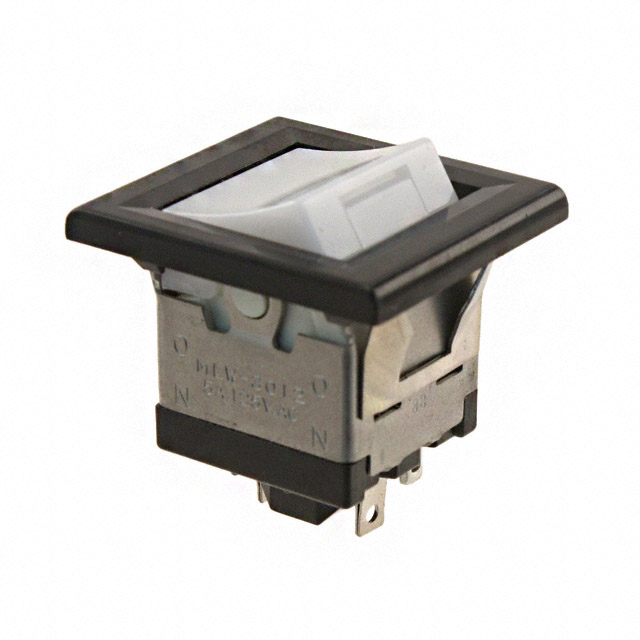

NKK Switches MLW3012-28-RB-2A	10000 Cycles	30000 Steps	50 °C	-10 °C	125 V	On-On	Concave (Curved) - Illuminated	UL	SPDT	Panel Mount Snap-In	Epoxy Sealed Terminals	No Marking			3 A 5 A	30 V	Solder Lug	28 VAC	Incandescent White	White	19.2 mm²	19.2 mm˛
NKK Switches MLW3012-28-RE-2A	10000 Cycles	30000 Steps	50 °C	-10 °C	125 V	On-On	Concave (Curved) - Illuminated	UL	SPDT	Panel Mount Snap-In	Epoxy Sealed Terminals	No Marking			3 A 5 A	30 V	Solder Lug	28 VAC	Incandescent Yellow	Yellow	19.2 mm²	19.2 mm˛
