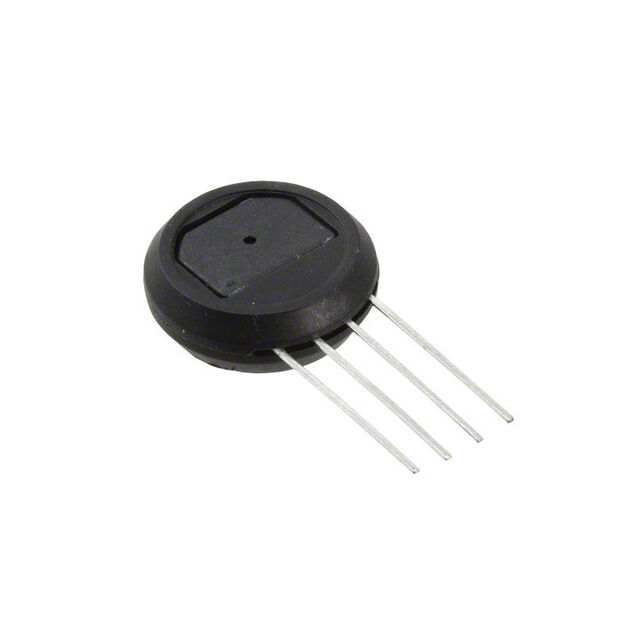

SSCSMNN Series

Catalog

SENSOR 1.45PSIG 4.7V 4SIP

Part	Termination Style	Port Style	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Maximum Pressure	Maximum Pressure	Accuracy	Operating Pressure	Operating Pressure	Features	Mounting Type	Supplier Device Package	Output Type	Applications	Pressure Type	Output [Max]	Output [Min]
Honeywell Sensing and Productivity Solutions SSCSMNN010KGAF5	PC Pin	No Port	85 °C	-40 C	4-SIP Module	4.75 V	5.25 V	85 kPa	12.33 PSI	0.25 %	1.45 PSI	10 kPa	Amplified Output Temperature Compensated	Through Hole	4-SIP	Analog Voltage	Board Mount	Vented Gauge
Honeywell Sensing and Productivity Solutions SSCSMNN001BGAA5	PC Pin	No Port	85 °C	-40 C	4-SIP Module	4.75 V	5.25 V	200 kPa	29.01 PSI	0.25 %	14.5 PSI	1 bar	Amplified Output Temperature Compensated	Through Hole	4-SIP	Analog Voltage	Board Mount	Vented Gauge	4.5 V	0.5 V
