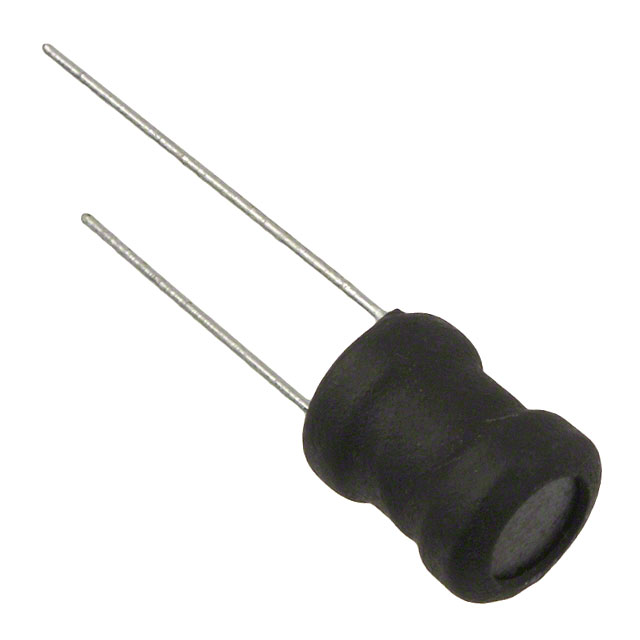

RLB1014 Series
Manufacturer: Bourns Inc.
Beta
⌘K
INDUCTOR POWER WIREWOUND 27000UH 10% 79.6KHZ 45Q-FACTOR FERRITE 0.082A 62OHM DCR RDL BAG
| Part | Tolerance | Operating Temperature [Max] | Operating Temperature [Min] | DC Resistance (DCR) [Max] | Current - Saturation (Isat) | Size / Dimension [diameter] | Size / Dimension [diameter] | Frequency - Self Resonant | Inductance | Package / Case | Q @ Freq [custom] | Q @ Freq [custom] | Type | Material - Core | Inductance Frequency - Test | Height - Seated (Max) [Max] | Height - Seated (Max) | Shielding | Mounting Type | Current Rating (Amps) | Q @ Freq | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 10 % | 125 °C | -40 C | 62 Ohm | 85 mA | 8.7 mm | 0.343 in | 200 kHz | 27 mH | Radial Vertical Cylinder | 79.6 kHz | 45 | Drum Core Wirewound | Ferrite | 79.6 kHz | 0.472 in | 12 mm | Unshielded | Through Hole | 82 mA | ||||
 Bourns Inc. | 10 % | 125 °C | -40 C | 4.1 Ohm | 0.6 A | 8.7 mm | 0.343 in | 900 kHz | 1 mH | Radial Vertical Cylinder | Drum Core Wirewound | Ferrite | 252 kHz | Unshielded | Through Hole | 360 mA | 50 252 kHz | 0.512 " | 13 mm | |||||
Bourns Inc. | 10 % | 125 °C | -40 C | 58 Ohm | 95 mA | 8.7 mm | 0.343 in | 220 kHz | 22 mH | Radial Vertical Cylinder | 79.6 kHz | 45 | Drum Core Wirewound | Ferrite | 79.6 kHz | Unshielded | Through Hole | 0.092 A | 0.512 " | 13 mm | ||||
Bourns Inc. | 10 % | 125 °C | -40 C | 10.5 Ohm | 8.7 mm | 0.343 in | 450 kHz | 3300 µH | Radial Vertical Cylinder | Drum Core Wirewound | Ferrite | 252 kHz | Unshielded | Through Hole | 0.22 A | 50 252 kHz | 0.512 " | 13 mm | ||||||
 Bourns Inc. | 10 % | 125 °C | -40 C | 1.3 Ohm | 1.45 A | 8.7 mm | 0.343 in | 2.1 MHz | 220 µH | Radial Vertical Cylinder | Drum Core Wirewound | Ferrite | 0.796 MHz | 0.472 in | 12 mm | Unshielded | Through Hole | 0.62 A | 40 796 kHz | |||||
 Bourns Inc. | 10 % | 125 °C | -40 C | 90 Ohm | 75 mA | 8.7 mm | 0.343 in | 180 kHz | 33 mH | Radial Vertical Cylinder | 79.6 kHz | 45 | Drum Core Wirewound | Ferrite | 79.6 kHz | Unshielded | Through Hole | 0.074 A | 0.512 " | 13 mm | ||||
Bourns Inc. | 10 % | 125 °C | -40 C | 2.85 Ohm | 850 mA | 8.7 mm | 0.343 in | 1.15 MHz | 680 µH | Radial Vertical Cylinder | Drum Core Wirewound | Ferrite | 0.796 MHz | Unshielded | Through Hole | 0.42 A | 35 796 kHz | 0.512 " | 13 mm | |||||
Bourns Inc. | 10 % | 125 °C | -40 C | 250 mA | 8.7 mm | 0.343 in | 500 kHz | 2.7 mH | Radial Vertical Cylinder | Drum Core Wirewound | Ferrite | 252 kHz | Unshielded | Through Hole | 0.24 A | 50 252 kHz | 0.512 " | 13 mm | 9.6 Ohm | |||||
Bourns Inc. | 10 % | 125 °C | -40 C | 36 Ohm | 130 mA | 8.7 mm | 0.343 in | 280 kHz | 12 mH | Radial Vertical Cylinder | 79.6 kHz | 50 | Drum Core Wirewound | Ferrite | 79.6 kHz | Unshielded | Through Hole | 0.125 Amps | 0.512 " | 13 mm |
