CABLE 348 Series

Manufacturer: GCT

Catalog

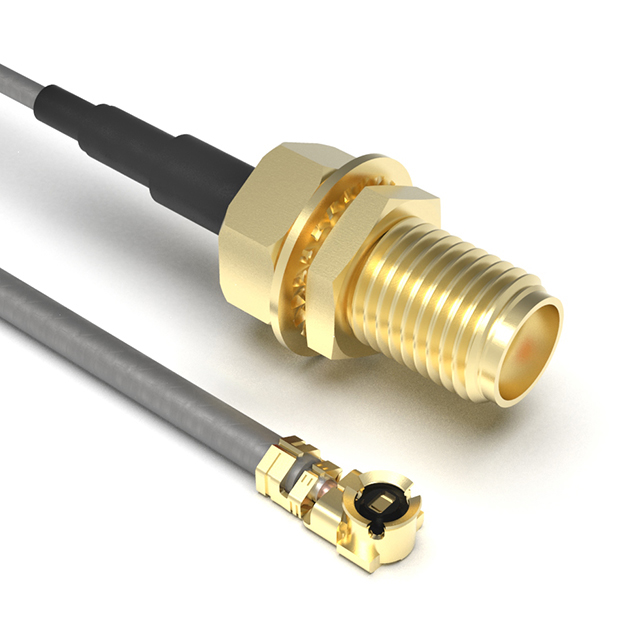

CBL ASY IPEX MHF1-SMA J-P 3.937"

Part	Operating Temperature [Max]	Operating Temperature [Min]	Style	2nd Contact Gender	Cable Impedance	1st Connector Mounting Feature	1st Connector Mounting Type	2nd Connector	Cable Type	Cable Type [diameter]	2nd Connector Mounting Type	Overall Impedance	1st Contact Gender	Length	Length	1st Connector	Color	Frequency - Max [Max]	Length [x]	Length [x]
GCT CABLE 348 RF-100-A-1	85 °C	-40 C	IPEX MHF1 to SMA	Female	50 Ohms	Bulkhead - Front Side Nut	Panel Mount	IPEX MHF1 Plug Right Angle	Coaxial Cable	1.13 mm	Free Hanging (In-Line)	50 Ohms	Female	3.937 in	100 mm	SMA Jack	Gray	6000 MHz
GCT CABLE 348 RF-150-A-1	85 °C	-40 C	IPEX MHF1 to SMA	Female	50 Ohms	Bulkhead - Front Side Nut	Panel Mount	IPEX MHF1 Plug Right Angle	Coaxial Cable	1.13 mm	Free Hanging (In-Line)	50 Ohms	Female	5.906 in	150 mm	SMA Jack	Gray	6000 MHz
GCT CABLE 348 RF-150-A-1	85 °C	-40 C	I-PEX MHF1 to SMA	Female	50 Ohms	Bulkhead - Front Side Nut	Panel Mount	I-PEX MHF1 Plug Right Angle	Coaxial Cable	1.13 mm	Free Hanging (In-Line)	50 Ohms	Female	5.906 in	150 mm	SMA Jack	Gray	6000 MHz
GCT CABLE 348 RF-050-A-1	85 °C	-40 C	I-PEX MHF1 to SMA	Female	50 Ohms	Bulkhead - Front Side Nut	Panel Mount	I-PEX MHF1 Plug Right Angle	Coaxial Cable	1.13 mm	Free Hanging (In-Line)	50 Ohms	Female			SMA Jack	Gray	6000 MHz	50 mm	1.969 in
GCT CABLE 348 RF-050-A-1	85 °C	-40 C	IPEX MHF1 to SMA	Female	50 Ohms	Bulkhead - Front Side Nut	Panel Mount	IPEX MHF1 Plug Right Angle	Coaxial Cable	1.13 mm	Free Hanging (In-Line)	50 Ohms	Female			SMA Jack	Gray	6000 MHz	50 mm	1.969 in
GCT CABLE 348 RF-100-A-1	85 °C	-40 C	I-PEX MHF1 to SMA	Female	50 Ohms	Bulkhead - Front Side Nut	Panel Mount	I-PEX MHF1 Plug Right Angle	Coaxial Cable	1.13 mm	Free Hanging (In-Line)	50 Ohms	Female	3.937 in	100 mm	SMA Jack	Gray	6000 MHz
