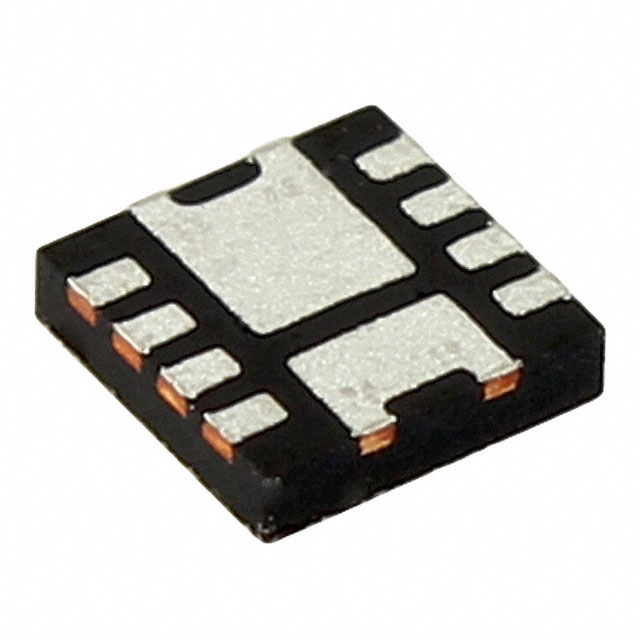

FDPC8011S Series

25V Asymmetric Dual N-Channel PowerTrench® Power Clip MOSFET

Catalog

25V Asymmetric Dual N-Channel PowerTrench® Power Clip MOSFET

Part	Input Capacitance (Ciss) (Max) @ Vds	Drain to Source Voltage (Vdss)	Configuration	Current - Continuous Drain (Id) @ 25°C	Rds On (Max) @ Id, Vgs	Power - Max	Gate Charge (Qg) (Max) @ Vgs	Gate Charge (Qg) (Max) @ Vgs	Mounting Type	Vgs(th) (Max) @ Id	Technology	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case
ON Semiconductor FDPC8011S	1240 pF 4335 pF	25 V	2 N-Channel (Dual) Asymmetrical	13 A 20 A 27 A 60 A	1.8 mOhm 6 mOhm	800 mW 900 mW	64 nC	19 nC	Surface Mount	2.2 V 2.2 V	MOSFET (Metal Oxide)	-55 °C	150 °C	8-PowerWDFN

Catalog

25V Asymmetric Dual N-Channel PowerTrench® Power Clip MOSFET

Key Features

• Q1 N-ChannelMax. RDS(on)= 7.3 mΩ at VGS= 4.5 V, ID= 12 A

• Q2 N-ChannelMax. RDS(on)= 2.1 mΩ at VGS= 4.5 V, ID= 12 A

• Low inductance packaging shortens rise/fall times, resulting in lower switching losses

• MOSFET integration enables optimum layout for lower circuit inductance and reduced switch node ringing

• RoHS Compliant

Description

This device includes two specialized N-Channel MOSFETs in a dual package. The switch node has been internally connected to enable easy placement and routing of synchronous buck converters. The control MOSFET (Q1) and synchronous SyncFET™ (Q2) have been designed to provide optimal power efficiency.
