EV20 Series

Catalog

EV200HJANA=RELAY, SPST-NO WITH

Part	Termination Style	Coil Voltage [Min]	Coil Voltage [Max]	Features	Switching Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Operate Time	Mounting Type	Contact Form	Must Operate Voltage	Release Time	Contact Rating (Current)	Must Release Voltage	Coil Resistance	Coil Current	Coil Voltage
TE Connectivity Aerospace, Defense and Marine EV200HJANA	Stud Wire Leads	48 VDC	95 VDC	Sealed - Hermetically	900 VDC	85 °C	-40 °C	15 ms	Chassis Mount	SPST-NO (DM) (1 Form X)	48 VDC	12 ms	500 A	27 VDC	100 Ohms

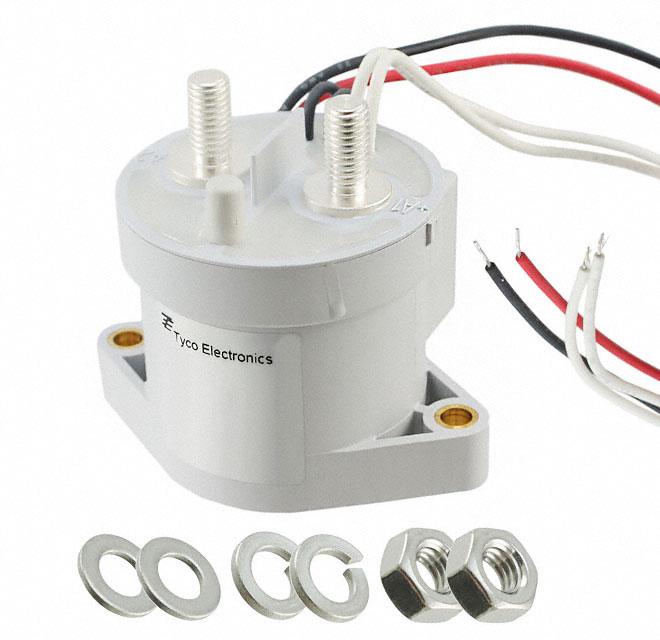

TE Connectivity Aerospace, Defense and Marine EV200HDANA	Stud Wire Leads	32 VDC	95 VDC	Sealed - Hermetically	900 VDC	85 °C	-40 °C	15 ms	Chassis Mount	SPST-NO (DM) (1 Form X)	32 VDC	12 ms	500 A	18 VDC		30 mA

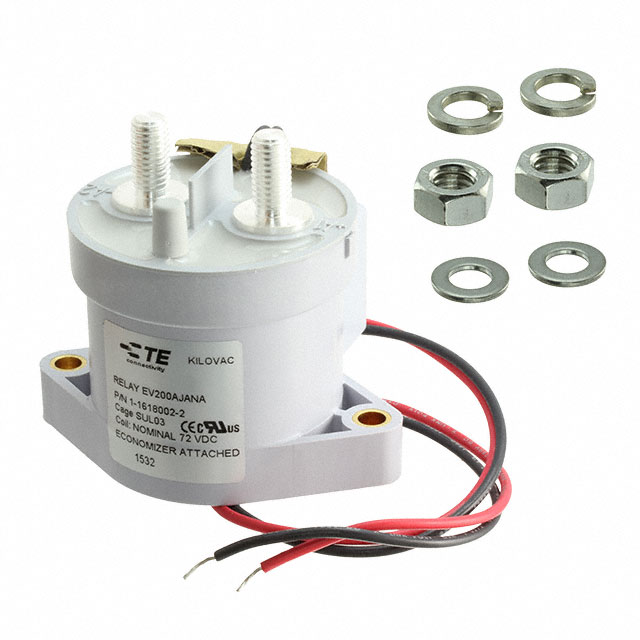

TE Connectivity Aerospace, Defense and Marine EV200AJANA	Stud Wire Leads	48 VDC	95 VDC	Sealed - Hermetically	900 VDC	85 °C	-40 °C	15 ms	Chassis Mount	SPST-NO (DM) (1 Form X)	48 VDC	12 ms	500 A	27 VDC		20 mA
TE Connectivity Aerospace, Defense and Marine EV200HRANA	Stud Wire Leads			Economizer Sealed - Hermetically	900 VDC	85 °C	-40 °C	15 ms	Chassis Mount	SPST-NO (DM) (1 Form X)		12 ms	500 A				28 VDC
