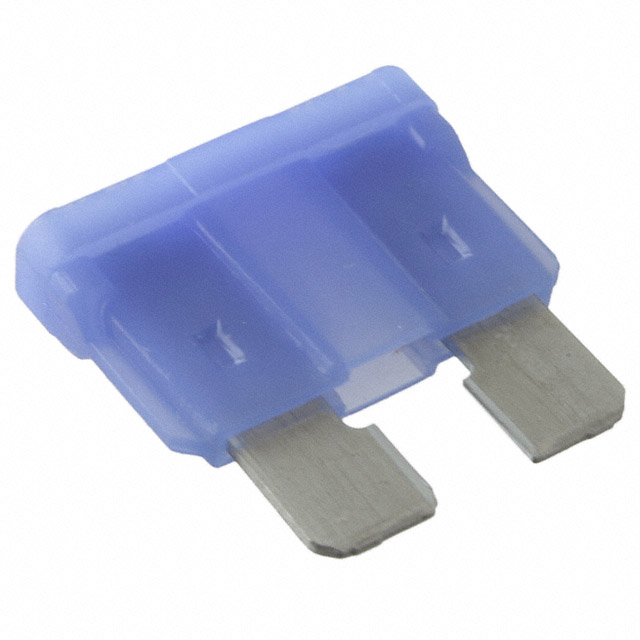

0287015.PXCN Series

Fuse - ATO 32V Nylon / Tin 15A

Catalog

Fuse - ATO 32V Nylon / Tin 15A

Part	DC Cold Resistance	Voltage Rating - DC	Fuse Type	Melting I²t	Color	Approval Agency	Mounting Type	Current Rating (Amps)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case

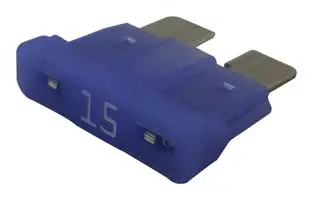

LITTELFUSE 0287015.PXCN	0.0048 Ohms	32 V	Automotive	340	Blue	CSA UL	Requires Holder	15 A	5.1 mm	19.1 mm	0.752 in	0.484 in	12.3 mm	0.201 "	-40 C	105 ░C	Blade ATO/ATC

Catalog

Fuse - ATO 32V Nylon / Tin 15A

Description

This 15 A ATOF® 32V automotive blade fuses replaced an obsolete ATO Series 257 fuse with the same ampere rating. Automakers around the world consider ATOF fuses standard equipment for protecting low-voltage circuits.
