34107 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
CONN RING CIRC 16-22AWG #6 CRIMP
| Part | Features | Stud/Tab Size | Width - Outer Edges [y] | Width - Outer Edges [y] | Length - Overall [x] | Length - Overall | Mounting Type | Contact Finish | Insulation | Contact Material | Thickness | Thickness | Terminal Type | Termination | Wire Gauge [Max] | Wire Gauge [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

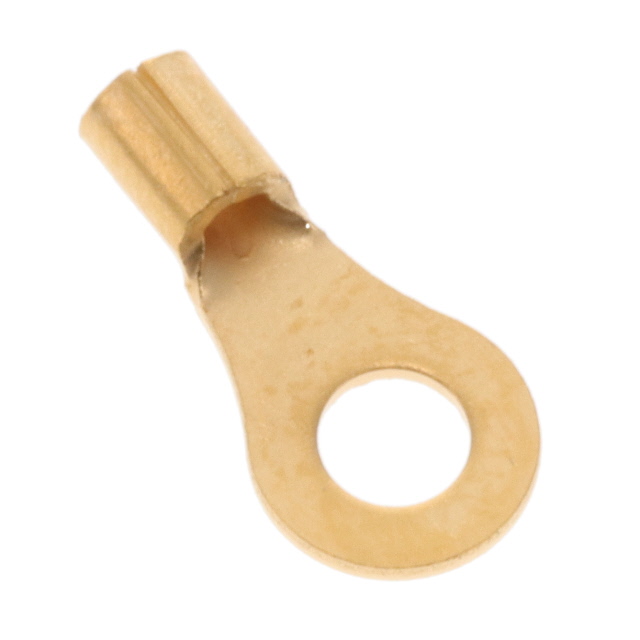

 TE Connectivity Raychem Cable Protection | Brazed Seam Serrated Termination | 6 Stud | 7.14 mm | 0.281 in | 0.574 in | 14.58 mm | Free Hanging (In-Line) | Gold | Non-Insulated | Copper | 0.031 in | 0.79 mm | Circular | Crimp | 22 AWG | 16 AWG |

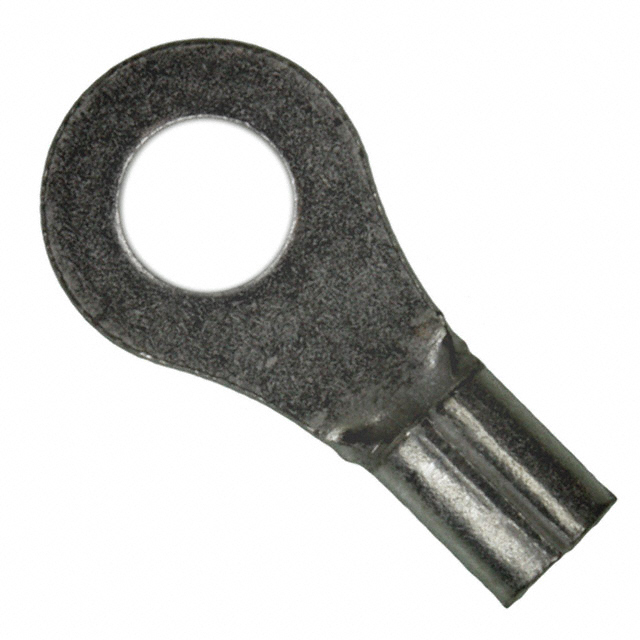

 TE Connectivity Raychem Cable Protection | Brazed Seam Serrated Termination | 6 Stud | 7.14 mm | 0.281 in | 0.574 in | 14.58 mm | Free Hanging (In-Line) | Non-Insulated | Copper | 0.031 in | 0.79 mm | Circular | Crimp | 22 AWG | 16 AWG |
