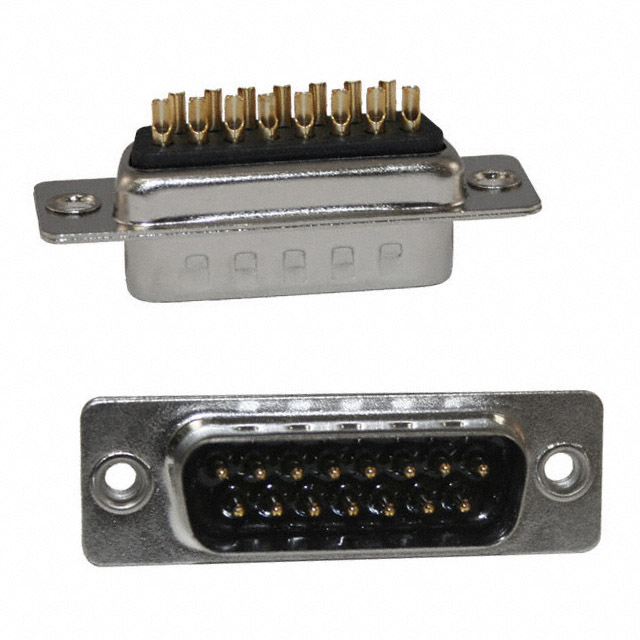

671-015 Series
Manufacturer: NorComp Inc.
Beta
⌘K
671-015-103L011 ROHS COMPLIANT: YES
| Part | Color | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Wire Gauge [Max] | Wire Gauge [Min] | Contact Form | Contact Material | Shell Size, Connector Layout | Contact Finish | Number of Positions | Connector Style | Connector Type | Number of Rows [custom] | Shell Material, Finish | Contact Type | Ingress Protection | Contact Finish Thickness | Current Rating (Amps) | Material Flammability Rating | Mounting Type | Features | Flange Feature | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Black | Polybutylene Terephthalate (PBT) | 100 °C | -50 °C | 28 AWG | 19.5 AWG | Stamped | Brass | 2 | Gold | 15 | D-Sub | Plug Male Pins | 2 | Nickel Plated Steel | Signal | IP66 - Dust Tight Water Resistant | Flash | 5 A | UL94 V-0 | Panel Mount | Grounding Indents | Cable Side (4-40) | |
NorComp Inc. | Black | Polybutylene Terephthalate (PBT) | 100 °C | -50 °C | 28 AWG | 19.5 AWG | Stamped | Brass | 2 | Gold | 15 | D-Sub | Plug Male Pins | 2 | Nickel Plated Steel | Signal | IP66 - Dust Tight Water Resistant | Flash | 5 A | UL94 V-0 | Panel Mount | Grounding Indents | Housing/Shell (Unthreaded) | |
NorComp Inc. | Black | Nylon 9T Polyamide (PA9T) | 100 °C | -50 °C | Stamped | Brass | 2 | Gold | 15 | D-Sub | Plug Male Pins | 2 | Nickel Plated Steel | Signal | IP66 - Dust Tight Water Resistant | Flash | 5 A | UL94 V-0 | Panel Mount Through Hole | Grounding Indents | Housing/Shell (Unthreaded) | Solder | ||
NorComp Inc. | Black | Nylon 9T Polyamide (PA9T) | 100 °C | -50 °C | Stamped | Brass | 2 | Gold | 15 | D-Sub | Plug Male Pins | 2 | Nickel Plated Steel | Signal | IP66 - Dust Tight Water Resistant | Flash | 5 A | UL94 V-0 | Panel Mount Through Hole | Grounding Indents | 4-40 | Solder | ||
NorComp Inc. | Black | Nylon 9T Polyamide (PA9T) | 100 °C | -50 °C | Stamped | Brass | 2 | Gold | 15 | D-Sub | Plug Male Pins | 2 | Nickel Plated Steel | Signal | IP66 - Dust Tight Water Resistant | Flash | 5 A | UL94 V-0 | Panel Mount Through Hole | Board Lock Grounding Indents | Board Side (4-40) | Solder | ||
NorComp Inc. | Black | Polybutylene Terephthalate (PBT) | 100 °C | -50 °C | 28 AWG | 19.5 AWG | Stamped | Brass | 2 | Gold | 15 | D-Sub | Plug Male Pins | 2 | Nickel Plated Steel | Signal | IP66 - Dust Tight Water Resistant | Flash | 5 A | UL94 V-0 | Panel Mount | Grounding Indents | 4-40 |
