BSA10 Series

Catalog

CONN PLG HSG FMALE 6POS INLINE

Part	Material Flammability Rating	Features	Note	Mounting Type	Shell Finish	Fastening Type	Operating Temperature (Min)	Operating Temperature (Max)	Contact Shape	Includes Total Count	Includes	Orientation	Shell Material	Housing Color	Number of Positions	Position Types	Insert Material	Shielding	Ingress Protection Description	Ingress Protection IP Rating	Type	Connector Type

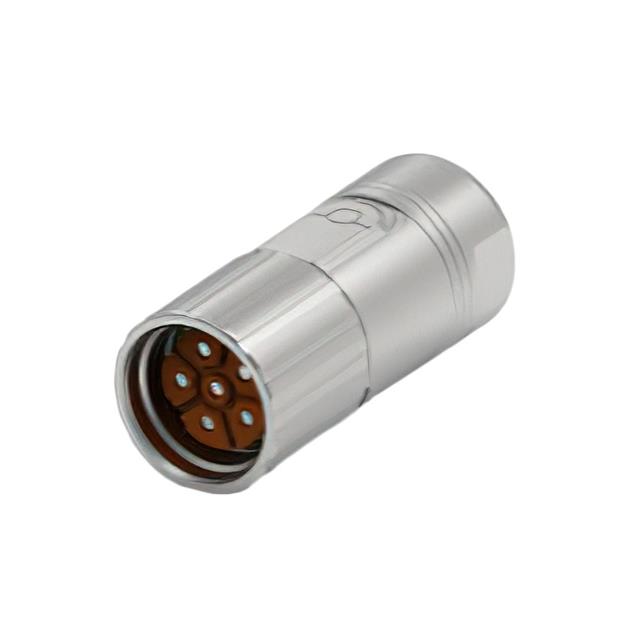

TE Intercontec BSA107N00080236000	UL94 V-0	Backshell Cable Clamp Coupling Nut	Contacts Not Included	Free Hanging (In-Line)	Nickel	Push-Twist	-20 °C	130 °C	Circular	3 pcs	Backshell Cable Clamp Connector	Keyed	Zinc Die Cast	Silver	6	PE	Nylon 6/6 PA66 Polyamide	Shielded	Dust Tight Water Resistant Waterproof	IP66 IP67	For Female Sockets	Plug Housing
TE Intercontec BSA108N00590236000	UL94 V-0	Backshell Cable Clamp Coupling Nut	Contacts Not Included	Free Hanging (In-Line)	Nickel	Push-Twist	-20 °C	130 °C	Circular	3 pcs	Backshell Cable Clamp Connector	Keyed	Zinc Die Cast	Silver	8	PE Power	Nylon 6/6 PA66 Polyamide	Shielded	Dust Tight Water Resistant Waterproof	IP66 IP67	For Female Sockets	Plug Housing
TE Intercontec BSA108N00580236000	UL94 V-0	Backshell Cable Clamp Coupling Nut	Contacts Not Included	Free Hanging (In-Line)	Nickel	Push-Twist	-20 °C	130 °C	Circular	3 pcs	Backshell Cable Clamp Connector	Keyed	Zinc Die Cast	Silver	8	PE Power	Nylon 6/6 PA66 Polyamide	Shielded	Dust Tight Water Resistant Waterproof	IP66 IP67	For Female Sockets	Plug Housing
TE Intercontec BSA107N00480136000	UL94 V-0	Backshell Cable Clamp Coupling Nut	Contacts Not Included	Free Hanging (In-Line)	Nickel	Push-Twist	-20 °C	130 °C	Circular	3 pcs	Backshell Cable Clamp Connector	Keyed	Zinc Die Cast	Silver	6	PE Power	Nylon 6/6 PA66 Polyamide	Shielded	Dust Tight Water Resistant Waterproof	IP66 IP67	For Female Sockets	Plug Housing
TE Intercontec BSA107N00590236000	UL94 V-0	Backshell Cable Clamp Coupling Nut	Contacts Not Included	Free Hanging (In-Line)	Nickel	Push-Twist	-20 °C	130 °C	Circular	3 pcs	Backshell Cable Clamp Connector	Keyed	Zinc Die Cast	Silver	6	PE Power	Nylon 6/6 PA66 Polyamide	Shielded	Dust Tight Water Resistant Waterproof	IP66 IP67	For Female Sockets	Plug Housing
TE Intercontec BSA108N00480236000	UL94 V-0	Backshell Cable Clamp Coupling Nut	Contacts Not Included	Free Hanging (In-Line)	Nickel	Push-Twist	-20 °C	130 °C	Circular	3 pcs	Backshell Cable Clamp Connector	Keyed	Zinc Die Cast	Silver	8	PE Power	Nylon 6/6 PA66 Polyamide	Shielded	Dust Tight Water Resistant Waterproof	IP66 IP67	For Female Sockets	Plug Housing
TE Intercontec BSA108N00590136000	UL94 V-0	Backshell Cable Clamp Coupling Nut	Contacts Not Included	Free Hanging (In-Line)	Nickel	Push-Twist	-20 °C	130 °C	Circular	3 pcs	Backshell Cable Clamp Connector	Keyed	Zinc Die Cast	Silver	8	PE Power	Nylon 6/6 PA66 Polyamide	Shielded	Dust Tight Water Resistant Waterproof	IP66 IP67	For Female Sockets	Plug Housing

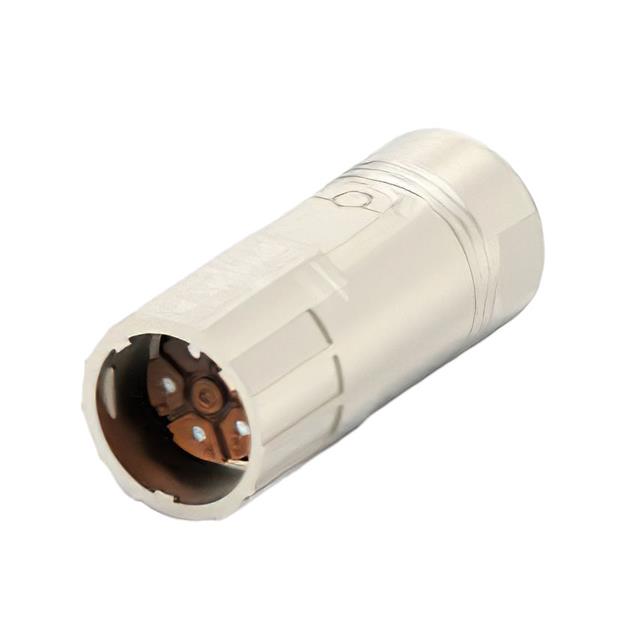

TE Intercontec BSA109N00420136000	UL94 V-0	Backshell Cable Clamp Coupling Nut	Contacts Not Included	Free Hanging (In-Line)	Nickel	Push-Twist	-20 °C	130 °C	Circular	3 pcs	Backshell Cable Clamp Connector	Keyed	Zinc Die Cast	Silver	9	PE Power	Nylon 6/6 PA66 Polyamide	Shielded	Dust Tight Water Resistant Waterproof	IP66 IP67	For Female Sockets	Plug Housing
TE Intercontec BSA107N00580236000	UL94 V-0	Backshell Cable Clamp Coupling Nut	Contacts Not Included	Free Hanging (In-Line)	Nickel	Push-Twist	-20 °C	130 °C	Circular	3 pcs	Backshell Cable Clamp Connector	Keyed	Zinc Die Cast	Silver	6	PE Power	Nylon 6/6 PA66 Polyamide	Shielded	Dust Tight Water Resistant Waterproof	IP66 IP67	For Female Sockets	Plug Housing
TE Intercontec BSA108N00420136000	UL94 V-0	Backshell Cable Clamp Coupling Nut	Contacts Not Included	Free Hanging (In-Line)	Nickel	Push-Twist	-20 °C	130 °C	Circular	3 pcs	Backshell Cable Clamp Connector	Keyed	Zinc Die Cast	Silver	8	PE Power	Nylon 6/6 PA66 Polyamide	Shielded	Dust Tight Water Resistant Waterproof	IP66 IP67	For Female Sockets	Plug Housing
