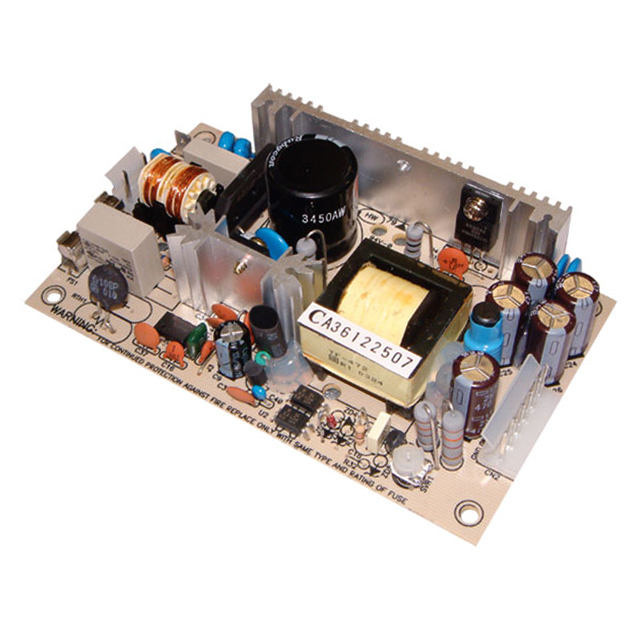

PT-45 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 5V 12V -5V 41W
| Part | Minimum Load Required | Voltage - Isolation | Approval Agency | Voltage - Input [Max] | Voltage - Input [Min] | Power (Watts) | Number of Outputs | Mounting Type | Applications | Features | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output 2 | Type | Current - Output 1 | Voltage - Output 1 | Efficiency | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Voltage - Output 2 | Voltage - Output 3 | Current - Output 3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 3000 V | CB CE cURus TUV | 264 VAC 370 VDC | 90 VAC 127 VDC | 41 W | 3 | Chassis Mount | ITE (Commercial) | Adjustable Output Universal Input | -10 °C | 60 °C | 2 A | Open Frame | 3 A | 5 V | 75 % | 76 mm | 28 mm | 127 mm | 5 " | 1.1 in | 2.99 in | 12 V | -5 V | 300 mA | |
MEAN WELL USA Inc. | 3000 V | CB CE cURus TUV | 264 VAC 370 VDC | 90 VAC 127 VDC | 43 W | 3 | Chassis Mount | ITE (Commercial) | Adjustable Output Universal Input | -10 °C | 60 °C | 2 A | Open Frame | 3 A | 5 V | 75 % | 76 mm | 28 mm | 127 mm | 5 " | 1.1 in | 2.99 in | 12 V | -12 V | 300 mA |
