C1520AA Series

Catalog

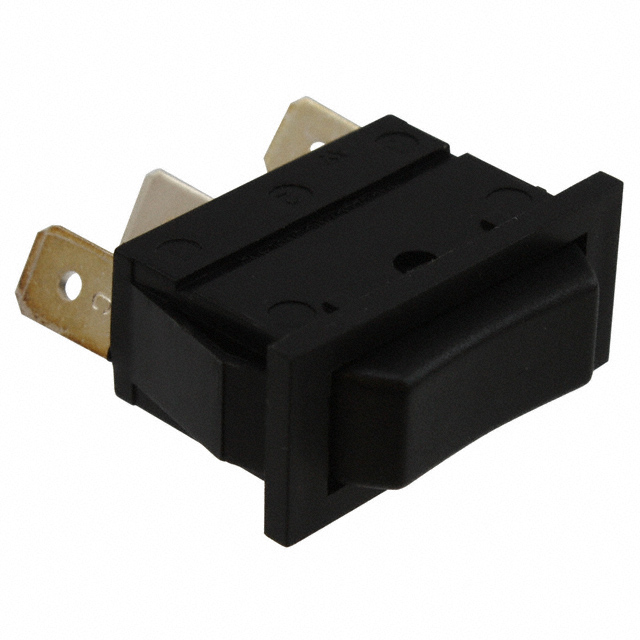

ROCKER SWITCH, ON-OFF-ON, SPDT,NON ILLUM ROHS COMPLIANT: YES

Part	Switch Function	Circuit	Approval Agency	Current Rating (Amps)	Mounting Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Actuator Marking	Voltage Rating - AC	Illumination Type, Color	Termination Style	Color - Actuator/Cap	Actuator Type	Features
BULGIN LIMITED C1520AAAAA	On-Off-On	SPDT	CSA UL	10 A 16 A	Panel Mount Snap-In	12.3 mm	27.3 mm	0 °C	85 °C	24 V	O I	250 V	Amber LED	Quick Connect - 0.250" (6.3mm)	Amber	Concave (Curved) - Illuminated
BULGIN LIMITED C1520AABB-730W	On-Off-On	SPDT	CSA UL	10 A 16 A 16 A	Panel Mount Snap-In	12.3 mm	27.3 mm			24 V	- O =	250 V		Quick Connect - 0.250" (6.3mm)	Black	Concave (Curved)
BULGIN LIMITED C1520AABB	On-Off-On	SPDT	CSA UL	10 A 16 A 16 A	Panel Mount Snap-In	12.3 mm	27.3 mm			24 V	No Marking	250 V		Quick Connect - 0.250" (6.3mm)	Black	Concave (Curved)
BULGIN LIMITED C1520AABB-B	On-Off-On	SPDT	CSA UL	10 A 16 A 16 A	Panel Mount Snap-In	12.3 mm	27.3 mm			24 V	No Marking	250 V		Quick Connect - 0.250" (6.3mm)	Black	Concave (Curved)	Antimicrobial
