OSTTC04 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K
TERM BLK 4P SIDE ENT 5.08MM PCB
| Part | Housing Material | Screw Thread | Operating Temperature [Min] | Operating Temperature [Max] | Screw Material - Plating | Clamp Material - Plating [custom] | Contact Material - Plating | Torque - Screw | Torque - Screw | Mating Orientation | Wire Gauge [Min] | Wire Gauge [Max] | Color | Voltage | Features | Wire Termination | Current | Positions Per Level | Mounting Type | Number of Levels | Pitch | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

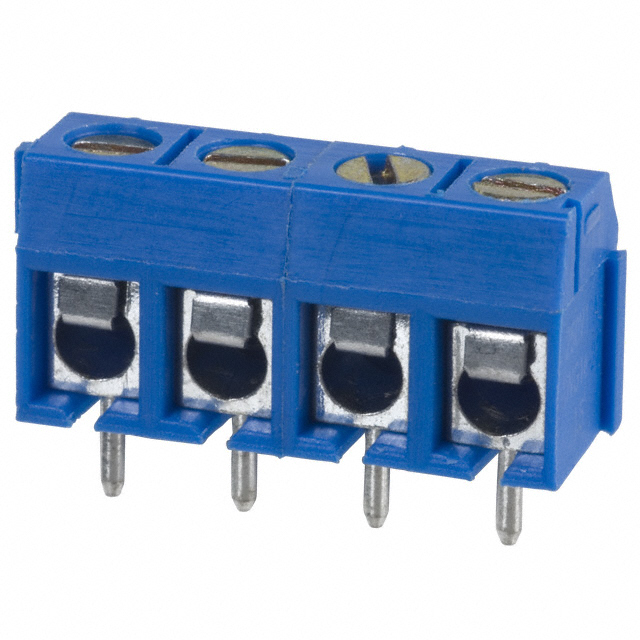

 On Shore Technology Inc. | Thermoplastic | M2.6 | -30 ░C | 105 ░C | Steel - Zinc Plated | Stainless Steel | Tin Plated | 2.6 Lb-In | 0.3 Nm | Horizontal with Board | 14 AWG | 22 AWG | Blue | 300 VDC | Interlocking (Side) | Screw - Leaf Spring Wire Guard | 15 A | 4 | Through Hole | 1 | 5.08 mm | 0.2 in |

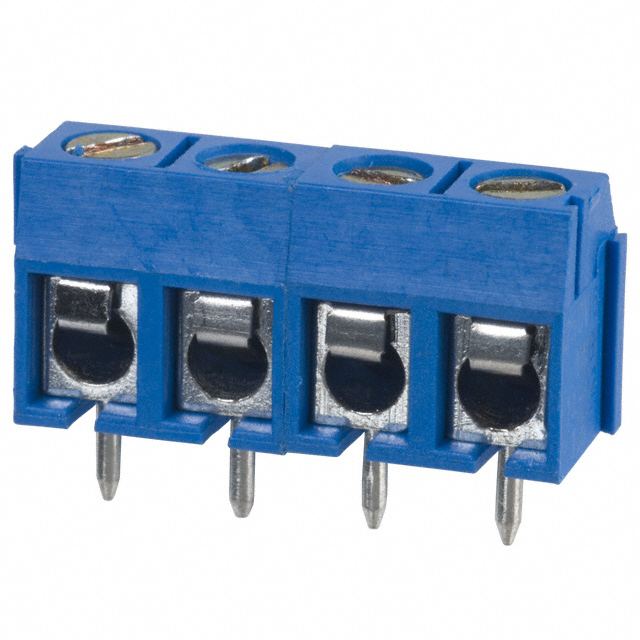

 On Shore Technology Inc. | Thermoplastic | M2.6 | -30 ░C | 105 ░C | Steel - Zinc Plated | Stainless Steel | Tin Plated | 2.6 Lb-In | 0.3 Nm | Horizontal with Board | 14 AWG | 22 AWG | Blue | 300 VDC | Interlocking (Side) | Screw - Leaf Spring Wire Guard | 15 A | 4 | Through Hole | 1 | 5 mm | 0.197 in |
