XZFVG07 Series
Manufacturer: SunLED
Beta
⌘K
DISPLAY 7SEG 0.3" DBL GRN 20SMD
| Part | Digit/Alpha Size | Digit/Alpha Size | Voltage - Forward (Vf) (Typ) | Common Pin | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Millicandela Rating | Number of Characters | Power Dissipation (Max) [Max] | Color | Package / Case | Display Type | Current - Test | Number of Characters |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

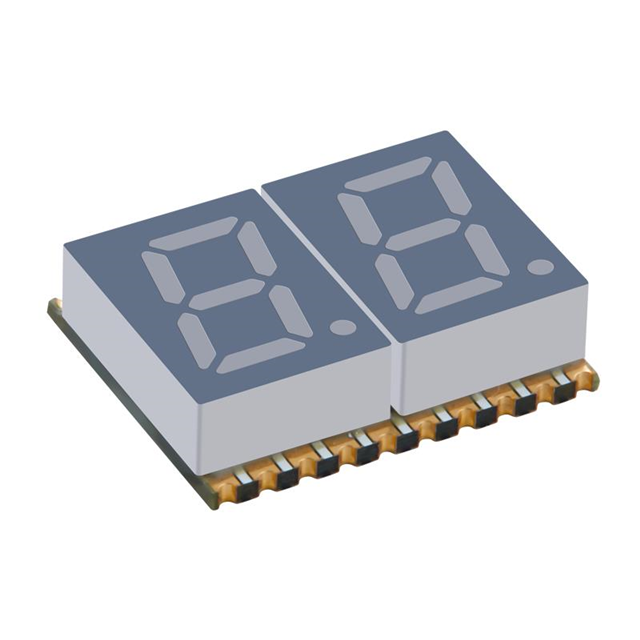

 SunLED | 7.62 mm | 0.3 in | 2 V | Common Anode | 14.8 mm | 0.583 in | 0.148 in | 0.472 in | 3.75 mm | 12 mm | 3 mcd | 2 | 75 mw | Green | 20-SMD No Lead | 7-Segment | 10 mA | |

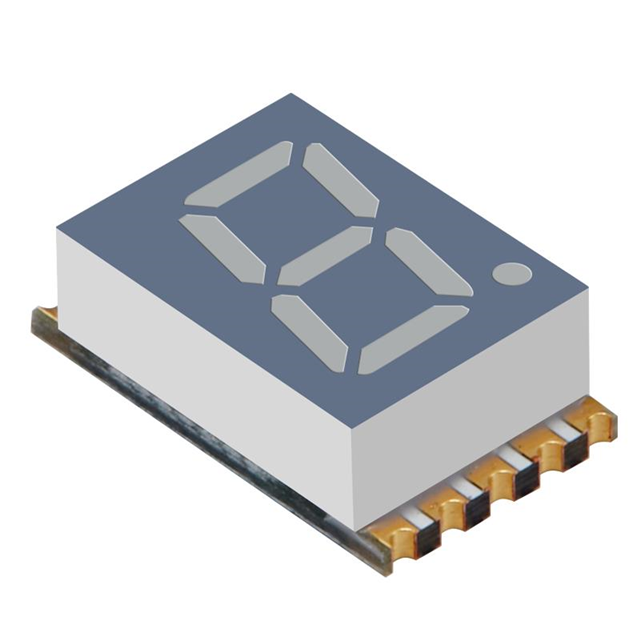

 SunLED | 7.62 mm | 0.3 in | 2 V | Common Cathode | 0.287 in | 7.3 mm | 3.75 mm | 12 mm | 0.148 in | 0.472 in | 3 mcd | 75 mw | Green | 10-SMD No Lead | 7-Segment | 10 mA | 1 | |
SunLED | 7.62 mm | 0.3 in | 2 V | Common Anode | 0.287 in | 7.3 mm | 3.75 mm | 12 mm | 0.148 in | 0.472 in | 12 mcd | 75 mw | Green | 10-SMD No Lead | 7-Segment | 10 mA | 1 |
