CM1621 Series
Manufacturer: ON Semiconductor
Beta
⌘K
EMI/RFI FILTERS (LC, RC NETWORKS) ROHS
| Part | Mounting Type | Resistance - Channel (Ohms) | Operating Temperature [Max] | Operating Temperature [Min] | Technology | Package / Case | Values | Applications | Number of Channels [custom] | Filter Order | Height [z] | Height [z] | Center / Cutoff Frequency | Attenuation Value | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Type | ESD Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

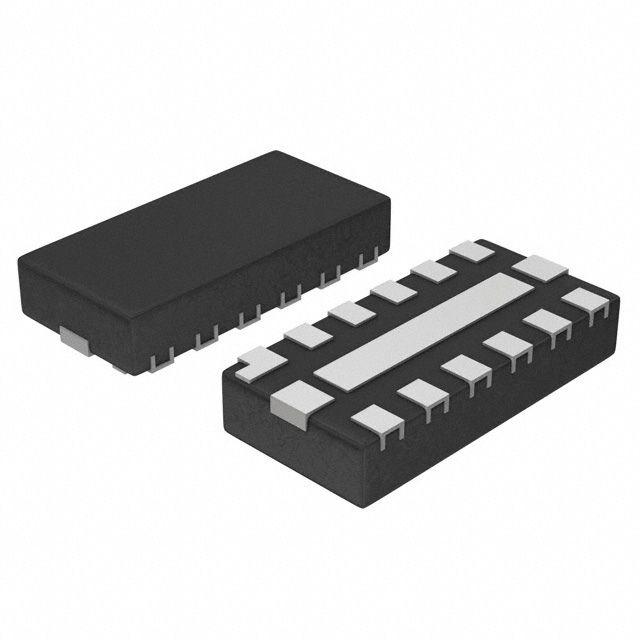

 ON Semiconductor | Surface Mount | 100 Ohms | 85 °C | -40 °C | RC (Pi) | 12-UFDFN Exposed Pad | 17 pF 100 Ohms | Data Lines for Mobile Devices | 6 | 2nd | 0.022 in | 0.55 mm | 90 MHz | -35 dB | 1.2 mm | 2.5 mm | 0.047 in | 0.098 " | Low Pass |
