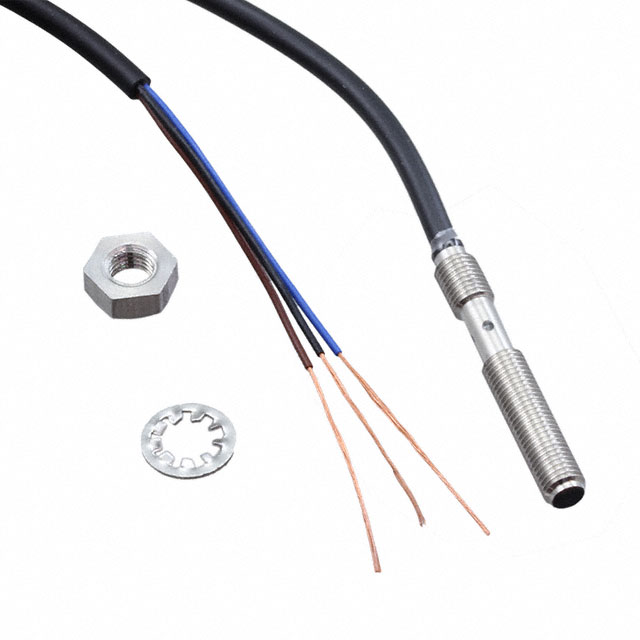

E2E-S04 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
SENSOR PROX INDUCTIVE 2MM CYLIND
| Part | Voltage - Supply [Max] | Voltage - Supply [Min] | Sensor Type | Ingress Protection | Shielding | Output Type | Response Frequency | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Indicator [custom] | Sensing Distance | Sensing Distance | Termination Style | Material - Body |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div | 30 VDC | 10 VDC | Inductive | IP67 | Unshielded | PNP-NC 3-Wire | 3.5 kHz | Cylinder Threaded - M4 | 70 °C | -25 °C | LED | 0.079 in | 2 mm | Cable Leads | Stainless Steel |
Omron Electronics Inc-EMC Div | 30 VDC | 10 VDC | Inductive | IP67 | Shielded | NPN-NO 3-Wire | 5 kHz | Cylinder Threaded - M4 | 70 °C | -25 °C | LED | 0.031 " | 0.8 mm | Cable Leads | Stainless Steel |
 Omron Electronics Inc-EMC Div | 30 VDC | 10 VDC | Inductive | IP67 | Shielded | NPN-NO 3-Wire | 5 kHz | Cylinder Threaded - M4 | 70 °C | -25 °C | LED | 0.031 " | 0.8 mm | Cable Leads | Stainless Steel |
Omron Electronics Inc-EMC Div | 30 VDC | 10 VDC | Inductive | IP67 | Unshielded | PNP-NC 3-Wire | 3.5 kHz | Cylinder Threaded - M4 | 70 °C | -25 °C | LED | 0.079 in | 2 mm | Cable Leads | Stainless Steel |
Omron Electronics Inc-EMC Div | 30 VDC | 10 VDC | Inductive | IP67 | Unshielded | NPN-NC 3-Wire | 3.5 kHz | Cylinder Threaded - M4 | 70 °C | -25 °C | LED | 0.079 in | 2 mm | Cable Leads | Stainless Steel |
Omron Electronics Inc-EMC Div | 30 VDC | 10 VDC | Inductive | IP67 | Shielded | NPN-NC 3-Wire | 5 kHz | Cylinder Threaded - M4 | 70 °C | -25 °C | LED | 0.031 " | 0.8 mm | Cable with Connector | Stainless Steel |
 Omron Electronics Inc-EMC Div | 30 VDC | 10 VDC | Inductive | IP67 | Shielded | PNP-NC 3-Wire | 5 kHz | Cylinder Threaded - M4 | 70 °C | -25 °C | LED | 0.031 " | 0.8 mm | Cable Leads | Stainless Steel |
Omron Electronics Inc-EMC Div | 30 VDC | 10 VDC | Inductive | IP67 | Shielded | PNP-NO 3-Wire | 5 kHz | Cylinder Threaded - M4 | 70 °C | -25 °C | LED | 0.031 " | 0.8 mm | Cable Leads | Stainless Steel |
Omron Electronics Inc-EMC Div | 30 VDC | 10 VDC | Inductive | IP67 | Unshielded | NPN-NO 3-Wire | 3.5 kHz | Cylinder Threaded - M4 | 70 °C | -25 °C | LED | 0.079 in | 2 mm | Cable with Connector | Stainless Steel |
Omron Electronics Inc-EMC Div | 30 VDC | 10 VDC | Inductive | IP67 | Unshielded | NPN-NO 3-Wire | 3.5 kHz | Cylinder Threaded - M4 | 70 °C | -25 °C | LED | 0.079 in | 2 mm | Cable Leads | Stainless Steel |
