GFB1224 Series
Manufacturer: Delta Electronics
Beta
⌘K

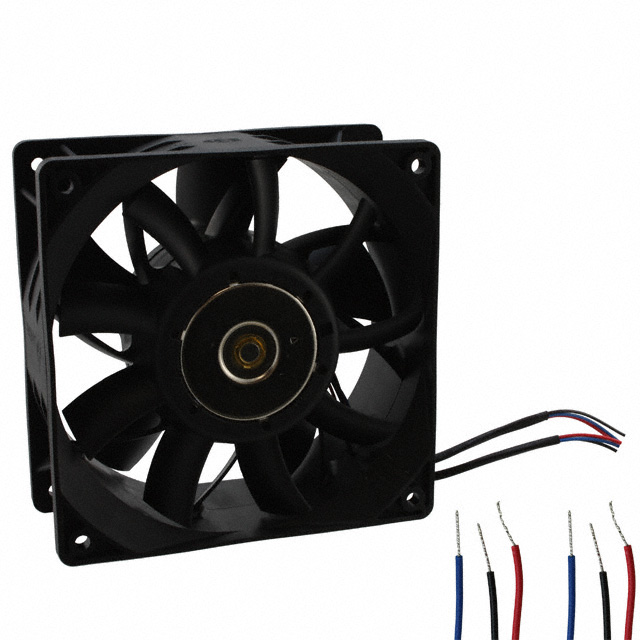

FAN AXIAL DUAL 120X50.8MM 24VDC
| Part | Material - Blade | Material - Frame | Current Rating (Amps) | Voltage Range [Min] | Voltage Range [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Features | Air Flow | Air Flow | Noise | Bearing Type | Size / Dimension [z] | Size / Dimension [x] | Static Pressure | Static Pressure | Weight [custom] | Weight [custom] | Termination | Fan Type | Power (Watts) | Voltage - Rated | RPM [custom] | RPM [custom] | Approval Agency | Width [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | Plastic | Plastic | 1.46 A | 14 VDC | 26.4 VDC | -10 °C | 60 °C | Locked Rotor Protection Speed Sensor (Tach) | 203.9 CFM | 5.71 m³/min | 67.6 dB(A) | Ball | 120 mm | 120 mm | 0.82 in H2O | 204.3 Pa | 1.3 lbs | 589.7 g | 3 | Tubeaxial (Dual) | 35.04 W | 24 VDC | 3400 RPM | 3700 RPM | CE CSA UL VDE | 50.8 mm |
