TPS846 Series
Manufacturer: Texas Instruments
Beta
⌘K

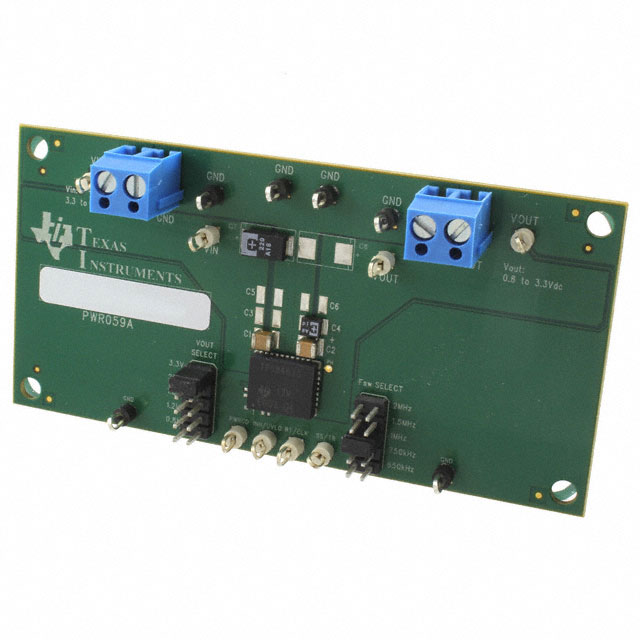

EVAL MODULE FOR TPS84610-003
| Part | Supplied Contents | Board Type | Outputs and Type | Outputs and Type | Utilized IC / Part | Contents | Main Purpose | Voltage - Input | Current - Output | Regulator Topology | Voltage - Output | Frequency - Switching | Voltage - Input [Max] | Voltage - Input [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Board(s) | Fully Populated | 1 | 1 Non-Isolated Output Non-Isolated | TPS84610 | Board(s) | DC/DC Step Down | 3.3 V 5 V | 6 A | Buck | 0.8 V 1.2 V 1.8 V 2.5 V 3.3 V | |||

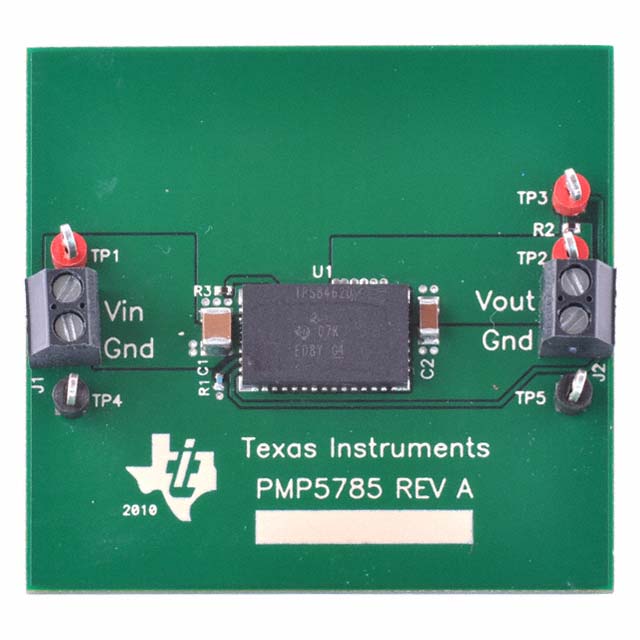

 Texas Instruments | Board(s) | Fully Populated | 1 | 1 Non-Isolated Output Non-Isolated | TPS84620-692 | Board(s) | DC/DC Step Down | 6 A | Buck | 3.3 V | 630 kHz | 14.5 V | 4.5 V | |
 Texas Instruments | Board(s) | Fully Populated | 1 | 1 Non-Isolated Output Non-Isolated | TPS84621 | Board(s) | DC/DC Step Down | 6 A | Buck | 3.3 V | 630 kHz | 14.5 V | 8 V |
