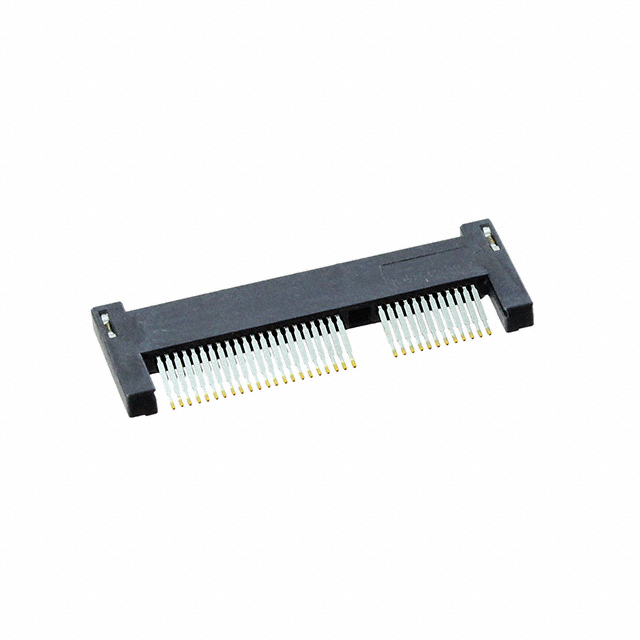

MDT180 Series

Catalog

CONN M.2 FMALE 67POS 0.020 GOLD

Part	Material - Insulation	Features	Contact Finish	Mounting Type	Contact Finish Thickness	Pitch	Pitch	Color	Operating Temperature [Max]	Operating Temperature [Min]	Card Type	Contact Material	Read Out	Gender	Number of Rows [custom]	Termination	Number of Positions	Contact Finish Thickness	Contact Finish Thickness

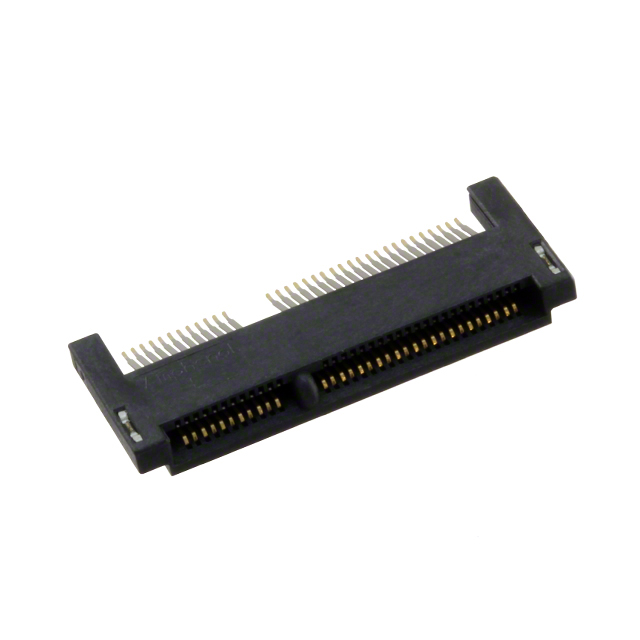

Amphenol ICC (FCI) MDT180B03001	Liquid Crystal Polymer (LCP)	Board Lock Keyed B	Gold	Right Angle Surface Mount	Flash	0.02 "	0.5 mm	Black	80 °C	-40 C	M.2 (NGFF) Mini Card	Copper Alloy	Dual	Female	2	Solder	67
Amphenol ICC (FCI) MDT180E03001	Liquid Crystal Polymer (LCP)	Board Lock Keyed E	Gold	Right Angle Surface Mount	Flash	0.02 "	0.5 mm	Black	80 °C	-40 C	M.2 (NGFF) Mini Card	Copper Alloy	Dual	Female	2	Solder	67
Amphenol ICC (FCI) MDT180M02001	Liquid Crystal Polymer (LCP)	Board Lock Keyed M	Gold	Right Angle Surface Mount		0.02 "	0.5 mm	Black	80 °C	-40 C	M.2 (NGFF) Mini Card	Copper Alloy	Dual	Female	2	Solder	67	0.38 µm	15 µin
Amphenol ICC (FCI) MDT180M01001	Liquid Crystal Polymer (LCP)	Board Lock Keyed M	Gold	Right Angle Surface Mount		0.02 "	0.5 mm	Black	80 °C	-40 C	M.2 (NGFF) Mini Card	Copper Alloy	Dual	Female	2	Solder	67	0.76 Ám	30 Áin

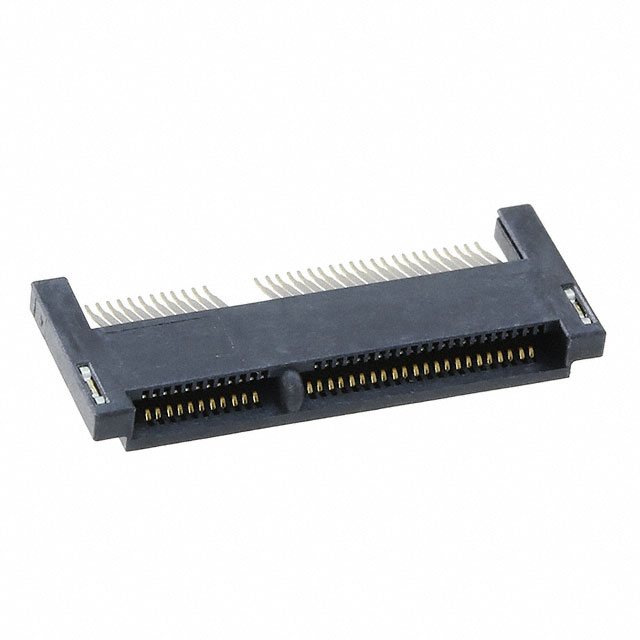

Amphenol ICC (FCI) MDT180E01001	Liquid Crystal Polymer (LCP)	Board Lock Keyed E	Gold	Right Angle Surface Mount		0.02 "	0.5 mm	Black	80 °C	-40 C	M.2 (NGFF) Mini Card	Copper Alloy	Dual	Female	2	Solder	67	0.76 Ám	30 Áin
Amphenol ICC (FCI) MDT180B01001	Liquid Crystal Polymer (LCP)	Board Lock Keyed B	Gold	Right Angle Surface Mount		0.02 "	0.5 mm	Black	80 °C	-40 C	M.2 (NGFF) Mini Card	Copper Alloy	Dual	Female	2	Solder	67	0.76 Ám	30 Áin

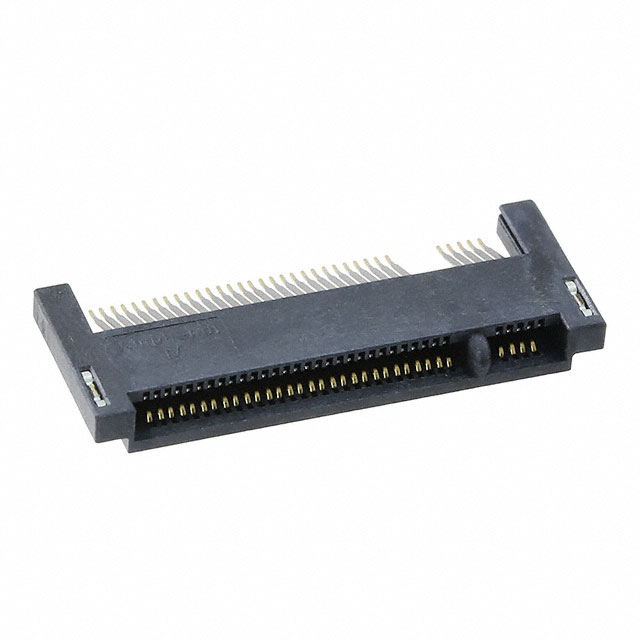

Amphenol ICC (FCI) MDT180M03001	Liquid Crystal Polymer (LCP)	Board Lock Keyed M	Gold	Right Angle Surface Mount	Flash	0.02 "	0.5 mm	Black	80 °C	-40 C	M.2 (NGFF) Mini Card	Copper Alloy	Dual	Female	2	Solder	67
