BLS6 Series

Catalog

RF MOSFET LDMOS 32V SOT502B

Part	Mounting Type	Gain	Voltage - Rated	Frequency [Min]	Frequency [Max]	Current Rating (Amps)	Current - Test	Voltage - Test	Power - Output	Supplier Device Package	Package / Case
Ampleon USA Inc. BLS6G2731S-120,112	Chassis Mount	13.5 dB	60 VDC	2.7 GHz	3.1 GHz	33 A	100 mA	32 V	120 W	SOT502B	SOT-502B
Ampleon USA Inc. BLS6G3135S-120,112	Chassis Mount	11 dB	60 VDC	3.1 GHz	3.5 GHz	7.2 A	100 mA	32 V	120 W	SOT502B	SOT-502B
Ampleon USA Inc. BLS6G3135-20,112	Chassis Mount	15.5 dBi	60 VDC	3.1 GHz	3.5 GHz	2.1 A	50 mA	32 V	20 W	CDFM2	SOT-608A
Ampleon USA Inc. BLS6G3135-120,112	Chassis Mount	11 dB	60 VDC	3.1 GHz	3.5 GHz	7.2 A	100 mA	32 V	120 W	SOT502A	SOT-502A

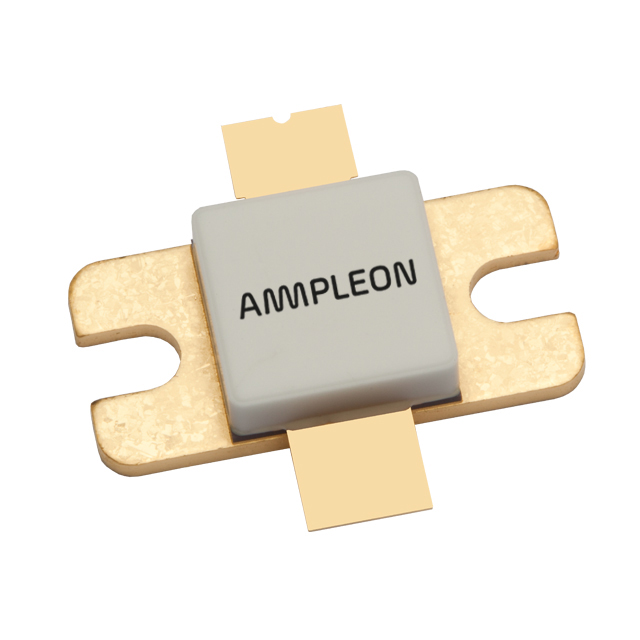

Ampleon USA Inc. BLS6G2735L-30,112	Chassis Mount	13 dBi	60 VDC	3.1 GHz	3.5 GHz		50 mA	32 V	30 W	CDFM2	SOT-1135A
Ampleon USA Inc. BLS6G2731-120,112	Chassis Mount	13.5 dB	60 VDC	2.7 GHz	3.1 GHz	33 A	100 mA	32 V	120 W	SOT502A	SOT-502A

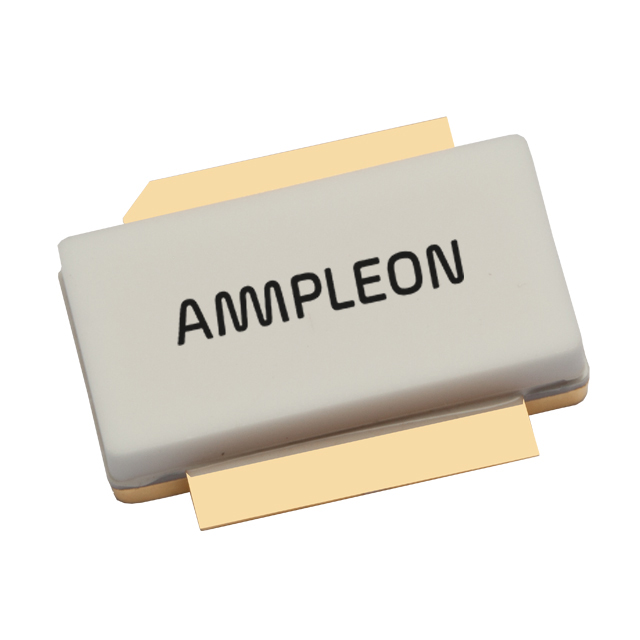

Ampleon USA Inc. BLS6G2933S-130,112	Chassis Mount	12.5 dBi	60 VDC	2.9 GHz	3.3 GHz	33 A	100 mA	32 V	130 W	CDFM2	SOT-922-1
