DLW43SH Series

Catalog

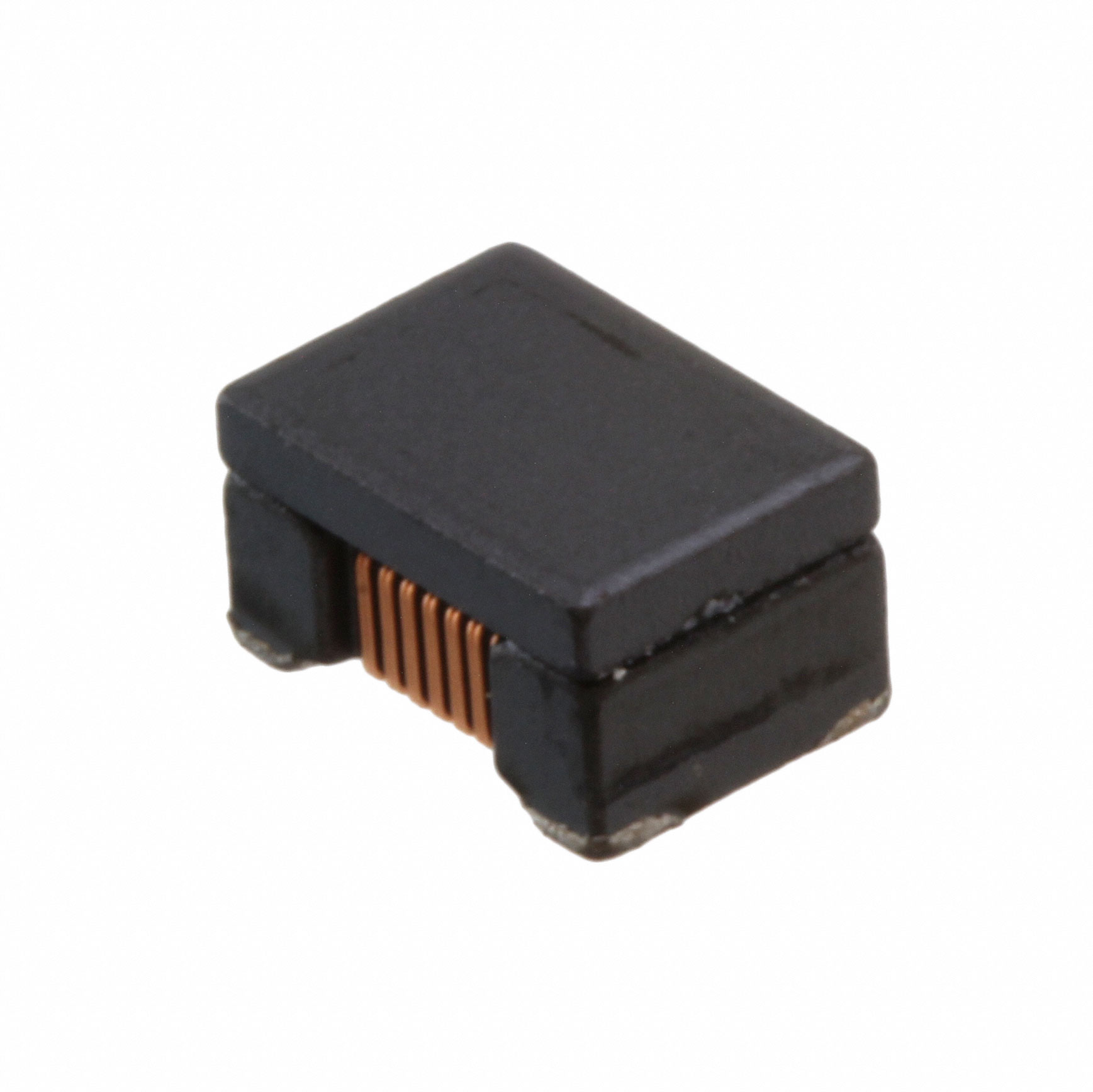

DLW43SH110XK2L ROHS COMPLIANT: YES

Part	Inductance @ Frequency	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR) (Max) [Max]	Filter Type	Current Rating (Max) [Max]	Height (Max)	Height (Max) [Max] [z]	Package / Case	Number of Lines	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Mounting Type	Voltage Rating - DC
Murata Electronics DLW43SH110XK2L	11 çH 100 kHz	125 °C	-40 C	500 mOhm	Signal Line	360 mA	2.8 mm	0.11 in	1812 (4532 Metric)	2	0.177 in	4.5 mm	3.2 mm	0.126 in	Surface Mount	50 VDC
