THS3001 Series

420-MHz Current-Feedback Amplifier

Catalog

420-MHz Current-Feedback Amplifier

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input Offset	Current - Supply	-3db Bandwidth	Current - Input Bias	Number of Circuits	Current - Output / Channel	Mounting Type	Amplifier Type	Package / Case	Package / Case [custom]	Supplier Device Package	Voltage - Supply Span (Max) [Max]	Slew Rate	Gain Bandwidth Product	Package / Case [y]	Package / Case [x]	Utilized IC / Part	Supplied Contents	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply, Single/Dual (±) [Max]	Channels per IC	Board Type	Current - Supply (Main IC)	Output Type
Texas Instruments THS3001IDGNR	85 °C	-40 °C	1 mV	6.6 mA	420 MHz	2 µA	1	120 mA	Surface Mount	Current Feedback	8-MSOP 8-TSSOP Exposed Pad	0.118 in 3 mm	8-HVSSOP	33 V	6500 V/µs	1.75 GHz
Texas Instruments THS3001CDGNR	70 °C	0 °C	1 mV	6.6 mA	420 MHz	2 µA	1	120 mA	Surface Mount	Current Feedback	8-MSOP 8-TSSOP Exposed Pad	0.118 in 3 mm	8-HVSSOP	33 V	6500 V/µs	1.75 GHz
Texas Instruments THS3001TDA2							1		Surface Mount	Current Feedback	Die		Die
Texas Instruments THS3001IDG4	85 °C	-40 °C	1 mV	6.6 mA	420 MHz	2 µA	1	120 mA	Surface Mount	Current Feedback	8-SOIC		8-SOIC	33 V	6500 V/µs	1.75 GHz	3.9 mm	0.154 in
Texas Instruments THS3001CD	70 °C	0 °C	1 mV	6.6 mA	420 MHz	2 µA	1	120 mA	Surface Mount	Current Feedback	8-SOIC		8-SOIC	33 V	6500 V/µs	1.75 GHz	3.9 mm	0.154 in
Texas Instruments THS3001IDR	85 °C	-40 °C	1 mV	6.6 mA	420 MHz	2 µA	1	120 mA	Surface Mount	Current Feedback	8-SOIC		8-SOIC	33 V	6500 V/µs	1.75 GHz	3.9 mm	0.154 in

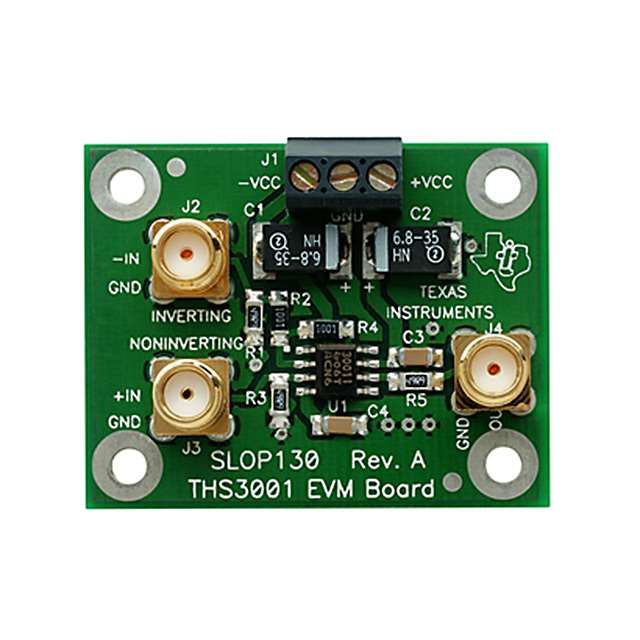

Texas Instruments THS3001EVM					420 MHz			120 mA		Current Feedback					6500 V/µs				THS3001	Board(s)	-4.5 V 9 V	16.5 V 33 V	1 - Single	Fully Populated	6.6 mA	Single-Ended
Texas Instruments THS3001CDRG4	70 °C	0 °C	1 mV	6.6 mA	420 MHz	2 µA	1	120 mA	Surface Mount	Current Feedback	8-SOIC		8-SOIC	33 V	6500 V/µs	1.75 GHz	3.9 mm	0.154 in
Texas Instruments THS3001HVIDGN	85 °C	-40 °C	1 mV	6.9 mA	420 MHz	2 µA	1	120 mA	Surface Mount	Current Feedback	8-MSOP 8-TSSOP Exposed Pad	0.118 in 3 mm	8-HVSSOP	37 V	6500 V/µs	1.75 GHz
Texas Instruments THS3001CDG4	70 °C	0 °C	1 mV	6.6 mA	420 MHz	2 µA	1	120 mA	Surface Mount	Current Feedback	8-SOIC		8-SOIC	33 V	6500 V/µs	1.75 GHz	3.9 mm	0.154 in

Catalog

420-MHz Current-Feedback Amplifier

Key Features

• High speed:420MHz bandwidth (G = 1, –3dB)6500V/µs slew rate40ns settling time (0.1%)High output drive: IO = 100mAExcellent video performance115MHz bandwidth (0.1dB, G = 2)0.01% differential gain0.02° differential phaseLow 3mV (max) input offset voltageVery low distortion:THD = –96dBc at f = 1MHzTHD = –80dBc at f = 10MHzWide range of power supplies:VCC = ±4.5V to ±16VEvaluation module availableHigh speed:420MHz bandwidth (G = 1, –3dB)6500V/µs slew rate40ns settling time (0.1%)High output drive: IO = 100mAExcellent video performance115MHz bandwidth (0.1dB, G = 2)0.01% differential gain0.02° differential phaseLow 3mV (max) input offset voltageVery low distortion:THD = –96dBc at f = 1MHzTHD = –80dBc at f = 10MHzWide range of power supplies:VCC = ±4.5V to ±16VEvaluation module available

Description

The THS3001 is a high-speed, current-feedback operational amplifier, designed for communication, imaging, and high-quality video applications. This device offers a very fast 6500V/µs slew rate, a 420MHz bandwidth, and a 40ns settling time for large-signal applications requiring excellent transient response. In addition, the THS3001 operates with a very low distortion of –96dBc, making this device an excellent choice for applications such as wireless communication base stations or ultra-fast ADC or DAC buffers. The THS3001 is a high-speed, current-feedback operational amplifier, designed for communication, imaging, and high-quality video applications. This device offers a very fast 6500V/µs slew rate, a 420MHz bandwidth, and a 40ns settling time for large-signal applications requiring excellent transient response. In addition, the THS3001 operates with a very low distortion of –96dBc, making this device an excellent choice for applications such as wireless communication base stations or ultra-fast ADC or DAC buffers.
