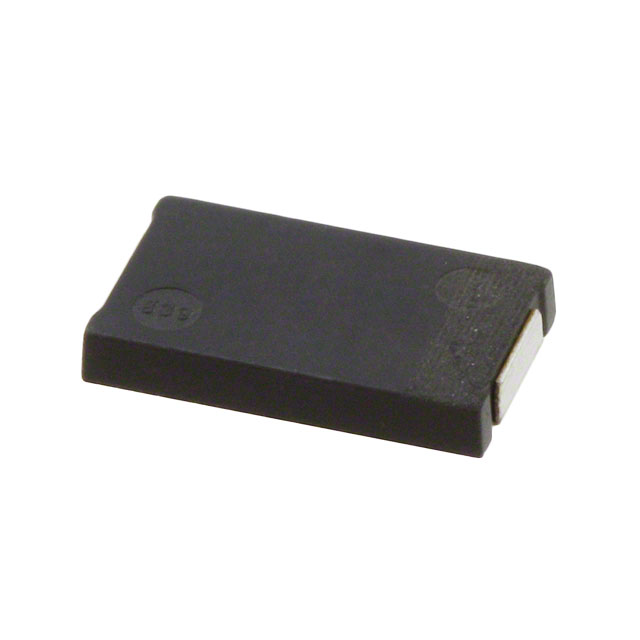

EEF-CS Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

POLYMER ALUMINIUM ELECTROLYTIC CAPACITOR, 47 ΜF, 10 V, 2917 [7343 METRIC], 0.04 OHM

Part	Voltage - Rated	Ripple Current @ High Frequency	ESR (Equivalent Series Resistance)	Tolerance	Mounting Type	Lifetime @ Temp.	Applications	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Package / Case	Capacitance	Operating Temperature [Max]	Operating Temperature [Min]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]
Panasonic Industrial Automation Sales EEF-CS1A470R	10 V	3.2 A	40 mOhm	20 %	Surface Mount	2000 Hrs	General Purpose	4.3 mm	0.287 "	7.3 mm	0.169 "	Polymer	1.2 mm	0.047 in	7343 Metric	2917	47 µF	105 ░C	-55 °C
Panasonic Industrial Automation Sales EEF-CS1D220R	20 V	3.2 A	40 mOhm	20 %	Surface Mount	2000 Hrs	General Purpose	4.3 mm	0.287 "	7.3 mm	0.169 "	Polymer	1.2 mm	0.047 in	7343 Metric	2917	22 µF	105 ░C	-55 °C
Panasonic Industrial Automation Sales EEF-CS1E150R	25 VDC	3.2 A	40 mOhm	20 %	Surface Mount	2000 Hrs	General Purpose	4.3 mm	0.287 "	7.3 mm	0.169 "	Polymer	1.2 mm	0.047 in	7343 Metric	2917	15 µF	105 ░C	-55 °C
Panasonic Industrial Automation Sales EEF-CS1E100R	25 VDC	3.2 A	40 mOhm	20 %	Surface Mount	2000 Hrs	General Purpose	4.3 mm	0.287 "	7.3 mm	0.169 "	Polymer	1.2 mm	0.047 in	7343 Metric	2917	10 µF	105 ░C	-55 °C
Panasonic Industrial Automation Sales EEF-CS1D150R	20 V	3.2 A	40 mOhm	20 %	Surface Mount	2000 Hrs	General Purpose	4.3 mm	0.287 "	7.3 mm	0.169 "	Polymer	1.2 mm	0.047 in	7343 Metric	2917	15 µF	105 ░C	-55 °C
Panasonic Industrial Automation Sales EEF-CS1C330R	16 V	3.2 A	40 mOhm	20 %	Surface Mount	2000 Hrs	General Purpose	4.3 mm	0.287 "	7.3 mm	0.169 "	Polymer	1.2 mm	0.047 in	7343 Metric	2917	33 ÁF	105 ░C	-55 °C
Panasonic Industrial Automation Sales EEF-CS1C220R	16 V	3.2 A	40 mOhm	20 %	Surface Mount	2000 Hrs	General Purpose	4.3 mm	0.287 "	7.3 mm	0.169 "	Polymer	1.2 mm	0.047 in	7343 Metric	2917	22 µF	105 ░C	-55 °C
Panasonic Industrial Automation Sales EEF-CS0G121R	4 V	5.1 A	15 mOhm	20 %	Surface Mount	2000 Hrs	General Purpose	4.3 mm	0.287 "	7.3 mm	0.169 "	Polymer	1.2 mm	0.047 in	7343 Metric	2917	120 µF	105 ░C	-55 °C	0.287 "	4.3 mm	0.169 "	7.3 mm
