TDU03 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

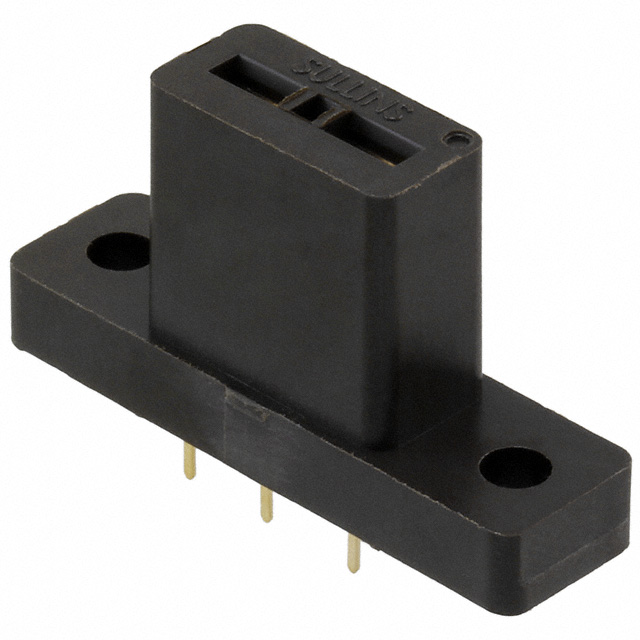

CONN SOCKET TRANSIST 3POS GOLD
| Part | Termination Post Length | Termination Post Length | Current Rating (Amps) | Contact Resistance | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Material - Post | Contact Material - Mating | Contact Finish - Mating | Contact Finish - Post | Features | Termination | Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Mounting Type | Number of Positions or Pins (Grid) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | 3.3 mm | 0.13 in | 5 A | 30 mOhm | 175 °C | -55 C | 30 µin | 0.76 µm | Beryllium Copper | Beryllium Copper | Gold | Gold | Board Guide Flange | Solder | Transistor | 0.76 Ám | 30 Áin | Through Hole | 3 |
