L777TSAH15 Series

Catalog

CONN D-SUB PLUG 15POS VERT SLDR

Part	Contact Form	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Contact Material	Connector Style	Termination	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Number of Rows [custom]	Connector Type	Flange Feature	Current Rating (Amps)	Material Flammability Rating	Contact Finish	Contact Type	Features	Mounting Type	Shell Size, Connector Layout
Amphenol ICC (Commercial Products) L777TSAH15POL2RM5	Stamped	Thermoplastic Glass Filled	-55 C	125 °C	600 V	Copper Alloy	D-Sub	Solder	0.38 µm	15 µin	15	2	Plug Male Pins	Board Side (4-40)	5 A	UL94 V-0	Gold	Signal	Board Lock Grounding Indents	Through Hole	2

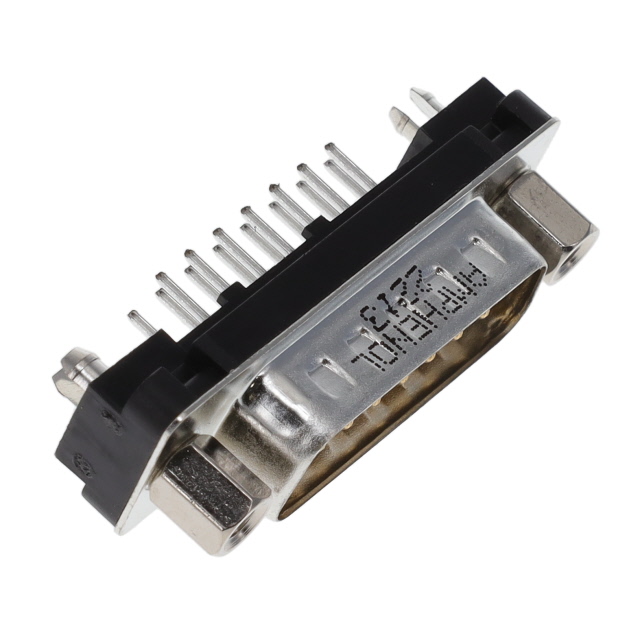

Amphenol ICC (Commercial Products) L777TSAH15POL2RM8	Stamped	Thermoplastic Glass Filled	-55 C	125 °C	600 V	Copper Alloy	D-Sub	Solder	0.38 µm	15 µin	15	2	Plug Male Pins	4-40 Mating Side Female Screwlock	5 A	UL94 V-0	Gold	Signal	Board Lock Grounding Indents	Through Hole	2
Amphenol ICC (Commercial Products) L777TSAH15POL2	Stamped	Thermoplastic Glass Filled	-55 C	125 °C	600 V	Copper Alloy	D-Sub	Solder	0.38 µm	15 µin	15	2	Plug Male Pins	Board Side (4-40)	5 A	UL94 V-0	Gold	Signal	Grounding Indents	Through Hole	2
