SWI6-5 Series

Manufacturer: CUI Inc.

Catalog

PLUG-IN ADAPTER SINGLE-OUT 5V 1.5A 7.5W

Part	Applications	Form	Standard Number	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Output Connector	Output Connector [diameter]	Output Connector [x]	Weight	Weight	Input Type	Cord Length	Cord Length	Power (Watts)	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output	No Load Power Consumption	Polarization	Region Utilized	Input Connector	Approval Agency	Efficiency	Current - Output (Max) [Max]	Output Connector [custom]	Output Connector [custom]	Output Connector [custom]	Output Connector [z]

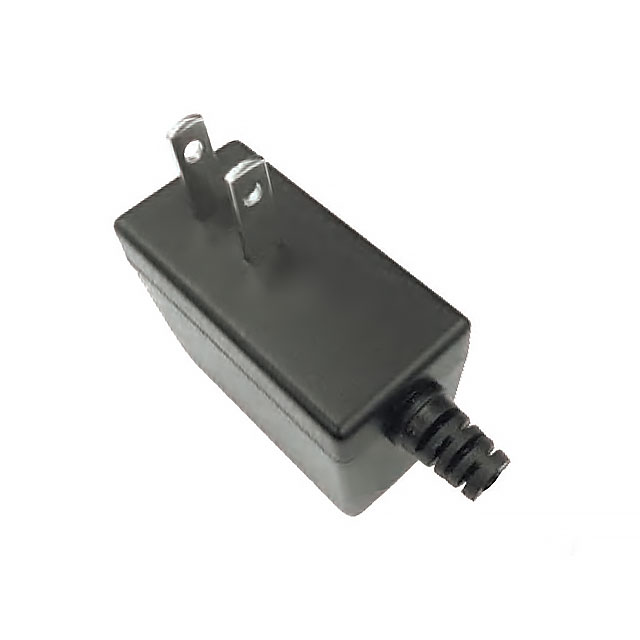

CUI Inc. SWI6-5-N-P5	ITE (Commercial)	Wall Mount	60950-1 62368-1 C22.2 No. 60950-1	42 mm	1.65 "	28 mm	56 mm	2.2 in	1.1 in	40 °C	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	0.172 lb	78.02 g	Fixed Blade	1.5 m	59 in	7.5 W	264 VAC	90 VAC	5 V	100 mW	Positive Center	North America	NEMA 1-15P	CB Scheme CSA FCC IEC PSE UL	Level VI	1.5 A

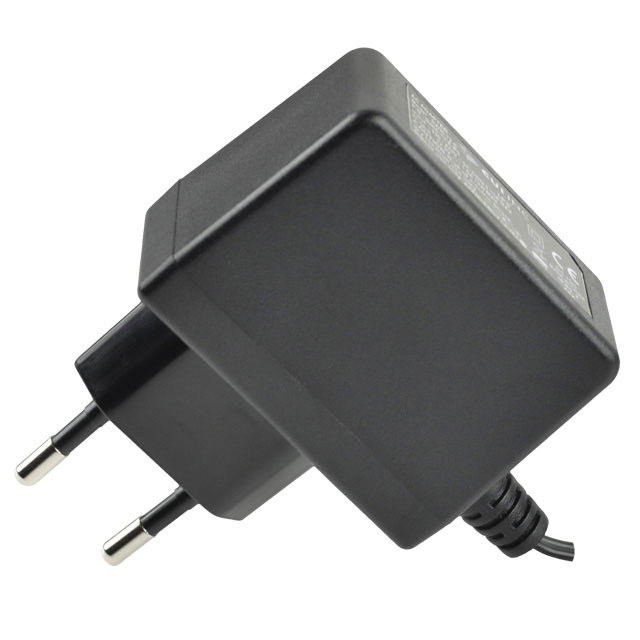

CUI Inc. SWI6-5-E-P5R	ITE (Commercial)	Wall Mount	55024 55032 Class B 60950-1 61000-3-2 61000-3-3							40 °C	Barrel Plug R/A			0.212 lb	96.16 g	Fixed Blade	1.5 m	59 in	7.5 W	264 VAC	90 VAC	5 V	100 mW	Positive Center	Europe	CEE 7/16	CB Scheme EN IEC	Level VI	1.5 A	9.5 mm	5.5 mm	2.1 mm
CUI Inc. SWI6-5-N-P5R	ITE (Commercial)	Wall Mount	60950-1 62368-1 C22.2 No. 60950-1	42 mm	1.65 "	28 mm	56 mm	2.2 in	1.1 in	40 °C	Barrel Plug R/A			0.172 lb	78.02 g	Fixed Blade	1.5 m	59 in	7.5 W	264 VAC	90 VAC	5 V	100 mW	Positive Center	North America	NEMA 1-15P	CB Scheme CSA FCC IEC PSE UL	Level VI	1.5 A	9.5 mm	5.5 mm	2.1 mm
CUI Inc. SWI6-5-N-P6R	ITE (Commercial)	Wall Mount	60950-1 62368-1 C22.2 No. 60950-1	42 mm	1.65 "	28 mm	56 mm	2.2 in	1.1 in	40 °C	Barrel Plug R/A	2.5 mm 5.5 mm		0.172 lb	78.02 g	Fixed Blade	1.5 m	59 in	7.5 W	264 VAC	90 VAC	5 V	100 mW	Positive Center	North America	NEMA 1-15P	CB Scheme CSA FCC IEC PSE UL	Level VI	1.5 A				9.5 mm
CUI Inc. SWI6-5-E-P6	ITE (Commercial)	Wall Mount	55024 55032 Class B 60950-1 61000-3-2 61000-3-3							40 °C	Barrel Plug	2.5 mm 5.5 mm	9.5 mm	0.212 lb	96.16 g	Fixed Blade	1.5 m	59 in	7.5 W	264 VAC	90 VAC	5 V	100 mW	Positive Center	Europe	CEE 7/16	CB Scheme EN IEC	Level VI	1.5 A
CUI Inc. SWI6-5-E-P6R	ITE (Commercial)	Wall Mount	55024 55032 Class B 60950-1 61000-3-2 61000-3-3							40 °C	Barrel Plug R/A	2.5 mm 5.5 mm		0.212 lb	96.16 g	Fixed Blade	1.5 m	59 in	7.5 W	264 VAC	90 VAC	5 V	100 mW	Positive Center	Europe	CEE 7/16	CB Scheme EN IEC	Level VI	1.5 A				9.5 mm
CUI Inc. SWI6-5-N-P6	ITE (Commercial)	Wall Mount	60950-1 62368-1 C22.2 No. 60950-1	42 mm	1.65 "	28 mm	56 mm	2.2 in	1.1 in	40 °C	Barrel Plug	2.5 mm 5.5 mm	9.5 mm	0.172 lb	78.02 g	Fixed Blade	1.5 m	59 in	7.5 W	264 VAC	90 VAC	5 V	100 mW	Positive Center	North America	NEMA 1-15P	CB Scheme CSA FCC IEC PSE UL	Level VI	1.5 A
CUI Inc. SWI6-5-E-P7	ITE (Commercial)	Wall Mount	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	59.9 mm	2.36 in	27.9 mm	55.9 mm	2.2 in	1.1 in	40 °C	Barrel Plug	1.35 mm 3.5 mm	9.5 mm			Fixed Blade	1.5 m	59 in	7.5 W	264 VAC	90 VAC	5 V	100 mW	Positive Center	Europe	CEE 7/16	CB Scheme EN IEC	Level VI	1.5 A
