0132-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN RECEPT PIN

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Length - Overall [x]	Length - Overall [x]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Socket Depth [z]	Socket Depth [z]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Tail Diameter [diameter]	Tail Diameter [diameter]	Tail Type	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Contact Material
Mill-Max Manufacturing Corp. 0132-0-15-01-30-02-04-0	-55 C	125 °C	Press-Fit	11.33 mm	0.446 in	0.64 mm	0.015 "	0.025 in	0.38 mm	3.81 mm	0.15 in	1.45 mm	0.057 in	0.51 mm	0.02 in	Standard Tail	0.072 "	1.83 mm	2.54 µm	100 µin	Tin-Lead	Beryllium Copper
Mill-Max Manufacturing Corp. 0132-0-15-01-30-14-04-0	-55 C	125 °C	Press-Fit	11.33 mm	0.446 in	0.64 mm	0.015 "	0.025 in	0.38 mm	3.81 mm	0.15 in	1.45 mm	0.057 in	0.51 mm	0.02 in	Standard Tail	0.072 "	1.83 mm	0.25 Ám	10 Áin	Gold	Beryllium Copper

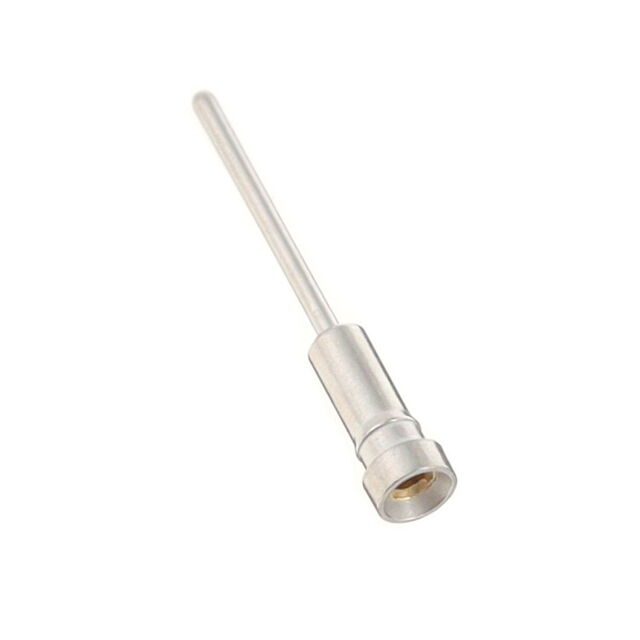

Mill-Max Manufacturing Corp. 0132-0-15-80-30-27-04-0	-55 C	125 °C	Press-Fit	11.33 mm	0.446 in	0.64 mm	0.015 "	0.025 in	0.38 mm	3.81 mm	0.15 in	1.45 mm	0.057 in	0.51 mm	0.02 in	Standard Tail	0.072 "	1.83 mm	0.76 Ám	30 Áin	Gold	Beryllium Copper

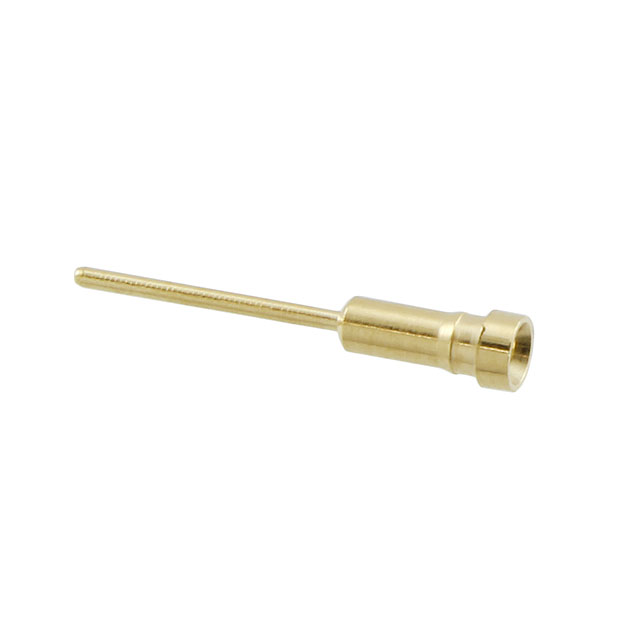

Mill-Max Manufacturing Corp. 0132-0-15-15-30-27-04-0	-55 C	125 °C	Press-Fit	11.33 mm	0.446 in	0.64 mm	0.015 "	0.025 in	0.38 mm	3.81 mm	0.15 in	1.45 mm	0.057 in	0.51 mm	0.02 in	Standard Tail	0.072 "	1.83 mm	0.76 Ám	30 Áin	Gold	Beryllium Copper
Mill-Max Manufacturing Corp. 0132-0-15-15-30-14-04-0	-55 C	125 °C	Press-Fit	11.33 mm	0.446 in	0.64 mm	0.015 "	0.025 in	0.38 mm	3.81 mm	0.15 in	1.45 mm	0.057 in	0.51 mm	0.02 in	Standard Tail	0.072 "	1.83 mm	0.25 Ám	10 Áin	Gold	Beryllium Copper
Mill-Max Manufacturing Corp. 0132-0-15-80-30-14-04-0	-55 C	125 °C	Press-Fit	11.33 mm	0.446 in	0.64 mm	0.015 "	0.025 in	0.38 mm	3.81 mm	0.15 in	1.45 mm	0.057 in	0.51 mm	0.02 in	Standard Tail	0.072 "	1.83 mm	0.25 Ám	10 Áin	Gold	Beryllium Copper
