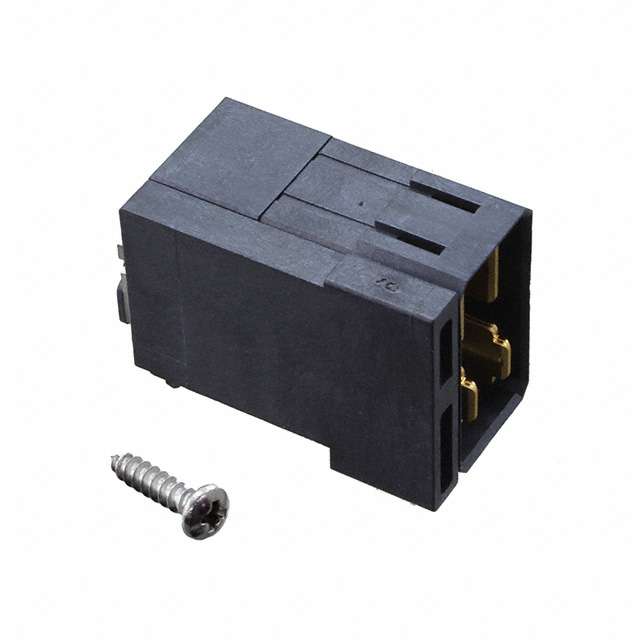

078349 Series

Manufacturer: Molex

Catalog

HIGH SPEED / MODULAR CONNECTORS IMPACT PWR 4PR RA HDRHDDWN PF.76AULF4CKT

Part	Termination	Connector Type	Number of Positions Loaded	Color	Number of Positions	Number of Rows	Material Flammability Rating	Contact Layout, Typical	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Connector Style

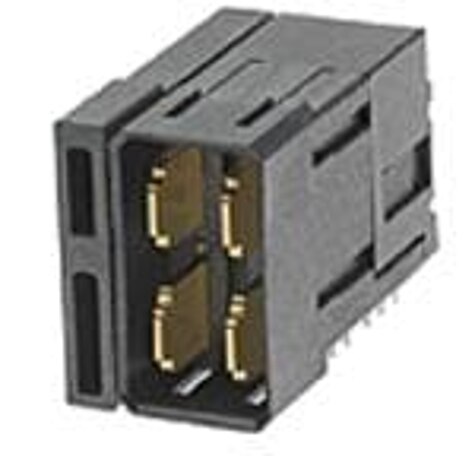

Molex 0783491002	Press-Fit	Header Male Blades	All	Black	4	2	UL94 V-0	4 Power	Gold	0.76 Ám	30 Áin	Board Edge Right Angle Through Hole	250 VDC	85 °C	-20 C	Hold Down Left Impact
Molex 0783492021	Press-Fit	Header Male Blades	All	Black	8	2	UL94 V-0	8 Power	Gold	0.76 Ám	30 Áin	Board Edge Right Angle Through Hole	250 VDC	85 °C	-55 °C	Hold Down Left Impact
Molex 0783491001	Press-Fit	Header Male Blades	All	Black	4	2	UL94 V-0	4 Power	Gold	0.76 Ám	30 Áin	Board Edge Right Angle Through Hole	250 VDC	85 °C	-20 C	Hold Down Left Impact
Molex 0783491044	Press-Fit	Header Male Blades	All	Black	8	2	UL94 V-0	8 Power	Gold	0.76 Ám	30 Áin	Board Edge Right Angle Through Hole	250 VDC	85 °C	-55 °C	Hold Down Left Impact

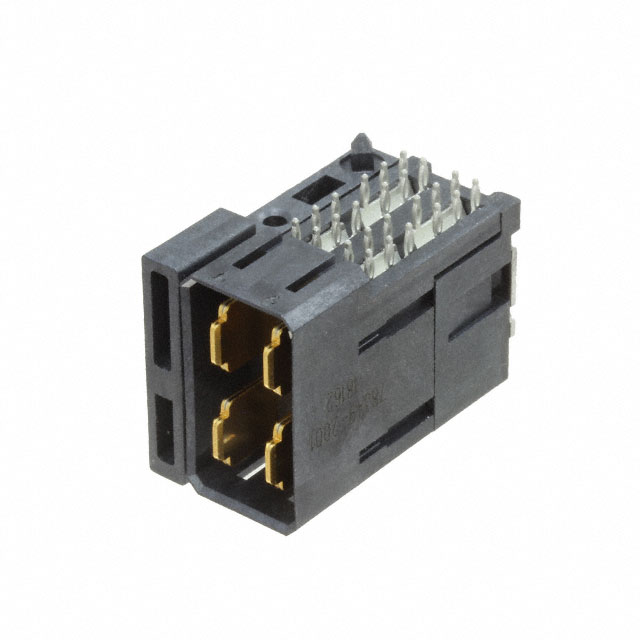

Molex 0783492001	Press-Fit	Header Male Blades	All	Black	4	2	UL94 V-0	4 Power	Gold	0.76 Ám	30 Áin	Board Edge Right Angle Through Hole	250 VDC	85 °C	-55 °C	Hold Down Left Impact
Molex 0783491004	Press-Fit	Header Male Blades	All	Black	4	2	UL94 V-0	4 Power	Gold	0.76 Ám	30 Áin	Board Edge Right Angle Through Hole	250 VDC	85 °C	-55 °C	Hold Down Left Impact
