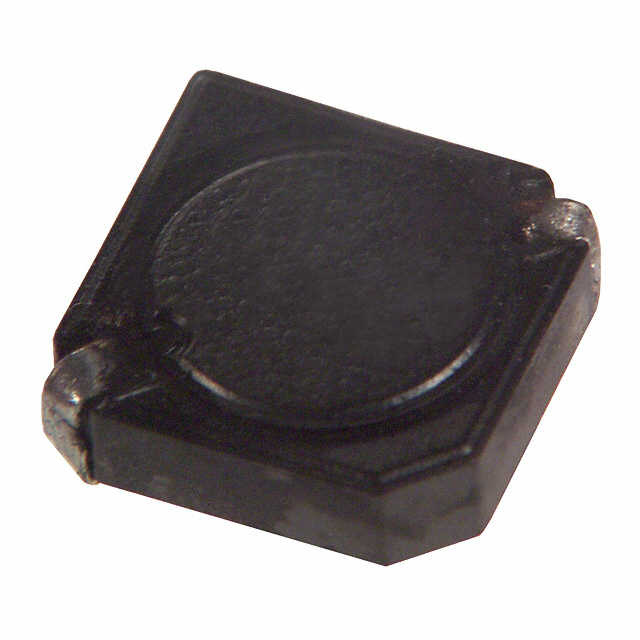

ELL-6PV Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
±20% SMD,6X6MM POWER INDUCTORS ROHS
| Part | Package / Case | Inductance Frequency - Test | Current Rating (Amps) | Material - Core | Mounting Type | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Type | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Shielding | Inductance | DC Resistance (DCR) | Tolerance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | Nonstandard | 100 kHz | 0.34 A | Ferrite | Surface Mount | 0.236 in | 6 mm | 0.236 in | 6 mm | Drum Core Wirewound | 2 mm | 0.079 in | Shielded | 100 µH | 750 mOhm | 20 % |
