AO34 Series
Manufacturer: Alpha & Omega Semiconductor Inc.
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

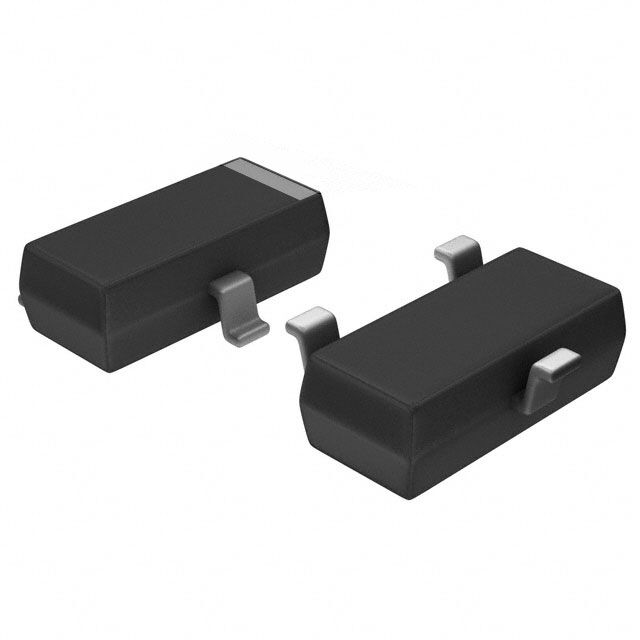

MOSFET P-CH 30V 2.6A SOT23-3
| Part | Operating Temperature (Min) | Operating Temperature (Max) | Vgs (Max) | Technology | Package / Case | Input Capacitance (Ciss) (Max) | Power Dissipation (Max) | Drive Voltage (Min Rds On) | Drive Voltage (Max Rds On) | Current - Continuous Drain (Id) (Ta) | Gate Charge (Max) | Rds On (Max) | Package Name | Drain to Source Voltage (Vdss) | Mounting Type | Vgs(th) (Max) | FET Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Alpha & Omega Semiconductor Inc. | -55 °C | 150 °C | 12 V | MOSFET (Metal Oxide) | 3-SMD SOT-23-3 Variant | 260 pF 260 pF | 1.4 W | 10 V | 2.5 V | 2.6 A | 15 nC | 115 mOhm | SOT-23-3 | 30 V | Surface Mount | 1.4 V | P-Channel |
Alpha & Omega Semiconductor Inc. | -55 °C | 150 °C | 8 V | MOSFET (Metal Oxide) | 3-SMD SOT-23-3 Variant | 260 pF | 1.4 W | 4.5 V | 1.8 V | 3 A | 10 nC | 62 mOhm | SOT-23-3 | 20 V | Surface Mount | 1 V | N-Channel |
Alpha & Omega Semiconductor Inc. | -55 °C | 150 °C | 20 V | MOSFET (Metal Oxide) | 3-SMD SOT-23-3 Variant | 340 pF | 1 W | 10 V | 4.5 V | 3.5 A | 7.2 nC 7.2 nC | 52 mOhm | SOT-23-3 | 30 V | Surface Mount | 1.8 V | N-Channel |
 Alpha & Omega Semiconductor Inc. | |||||||||||||||||
Alpha & Omega Semiconductor Inc. | -55 °C | 150 °C | 12 V | MOSFET (Metal Oxide) | 3-SMD SOT-23-3 Variant | 235 pF | 1.4 W | 10 V | 2.5 V | 4 A | 20 nC | 52 mOhm | SOT-23-3 | 30 V | Surface Mount | 1.5 V | N-Channel |
 Alpha & Omega Semiconductor Inc. | -55 °C | 150 °C | 12 V | MOSFET (Metal Oxide) | 3-SMD SOT-23-3 Variant | 270 pF | 1.4 W | 10 V | 2.5 V | 3.8 A | 3.2 nC | 80 mOhm | SOT-23-3 | 30 V | Surface Mount | 1.8 V | N-Channel |
Alpha & Omega Semiconductor Inc. | -55 °C | 150 °C | 20 V | MOSFET (Metal Oxide) | 3-SMD SOT-23-3 Variant | 820 pF | 1.4 W | 10 V | 4.5 V | 5.8 A | 17 nC | 28 mOhm | SOT-23-3 | 30 V | Surface Mount | 3 V | N-Channel |
Alpha & Omega Semiconductor Inc. | -55 °C | 150 °C | 20 V | MOSFET (Metal Oxide) | 3-SMD SOT-23-3 Variant | 520 pF | 1.4 W | 10 V | 4.5 V | 4.3 A | 15 nC | 48 mOhm | SOT-23-3 | 30 V | Surface Mount | 2.4 V | P-Channel |
Alpha & Omega Semiconductor Inc. | -55 °C | 150 °C | 20 V | MOSFET (Metal Oxide) | 3-SMD SOT-23-3 Variant | 370 pF | 1.4 W | 10 V | 4.5 V | 2.6 A | 9 nC | 130 mOhm | SOT-23-3 | 30 V | Surface Mount | 3 V | P-Channel |
Alpha & Omega Semiconductor Inc. | -55 °C | 150 °C | 20 V | MOSFET (Metal Oxide) | 3-SMD SOT-23-3 Variant | 210 pF | 1.4 W | 10 V | 4.5 V | 3.6 A | 5 nC 5 nC | 50 mOhm | SOT-23-3 | 30 V | Surface Mount | 2.5 V | N-Channel |
