64PR Series

Catalog

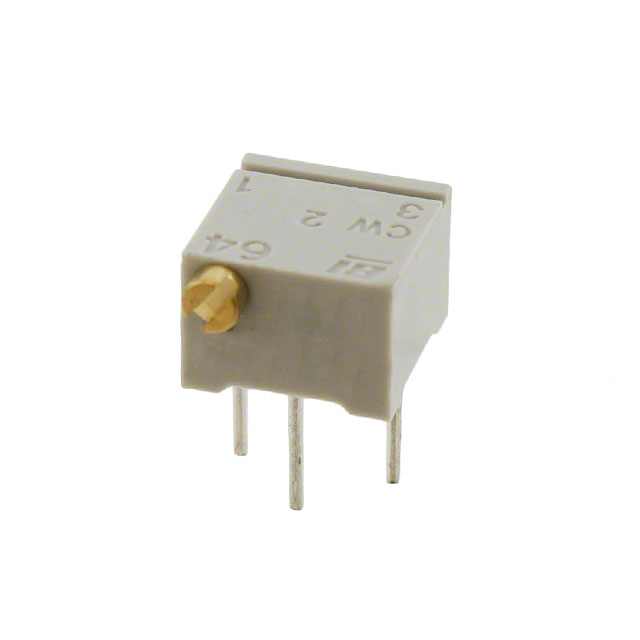

TRIMMER 100 OHM 0.25W PC PIN TOP

Part	Adjustment Type	Termination Style	Power (Watts)	Power (Watts)	Temperature Coefficient	Resistance	Resistive Material	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Number of Turns	Tolerance	Mounting Type
TT Electronics/BI 64PR100LF	Top Adjustment	PC Pins	0.25 W	0.25 W	100 ppm/°C	100 Ohms	Cermet	0.25 in	6.35 mm	0.25 in	6.35 mm	12	10 %	Through Hole
TT Electronics/BI 64PR50LF	Top Adjustment	PC Pins	0.25 W	0.25 W	100 ppm/°C	50 Ohms	Cermet	0.25 in	6.35 mm	0.25 in	6.35 mm	12	10 %	Through Hole
TT Electronics/BI 64PR250KLF	Top Adjustment	PC Pins	0.25 W	0.25 W	100 ppm/°C	250000 Ohms	Cermet	0.25 in	6.35 mm	0.25 in	6.35 mm	12	10 %	Through Hole
TT Electronics/BI 64PR50KLF	Top Adjustment	PC Pins	0.25 W	0.25 W	100 ppm/°C	50000 Ohms	Cermet	0.25 in	6.35 mm	0.25 in	6.35 mm	12	10 %	Through Hole
TT Electronics/BI 64PR200LF	Top Adjustment	PC Pins	0.25 W	0.25 W	100 ppm/°C	200 Ohms	Cermet	0.25 in	6.35 mm	0.25 in	6.35 mm	12	10 %	Through Hole
TT Electronics/BI 64PR10KLF	Side Adjustment	PC Pins	0.25 W	0.25 W	100 ppm/°C	10000 Ohms	Cermet	0.25 in	6.35 mm	0.25 in	6.35 mm	12	10 %	Through Hole
TT Electronics/BI 64PR20LF	Top Adjustment	PC Pins	0.25 W	0.25 W	100 ppm/°C	20 Ohms	Cermet	0.25 in	6.35 mm	0.25 in	6.35 mm	12	10 %	Through Hole
TT Electronics/BI 64PR500LF	Top Adjustment	PC Pins	0.25 W	0.25 W	100 ppm/°C	0.5 kOhms	Cermet	0.25 in	6.35 mm	0.25 in	6.35 mm	12	10 %	Through Hole
TT Electronics/BI 64PR200KLF	Top Adjustment	PC Pins	0.25 W	0.25 W	100 ppm/°C	200000 Ohms	Cermet	0.25 in	6.35 mm	0.25 in	6.35 mm	12	10 %	Through Hole
TT Electronics/BI 64PR1KLF	Side Adjustment	PC Pins	0.25 W	0.25 W	100 ppm/°C	1000 Ohms	Cermet	0.25 in	6.35 mm	0.25 in	6.35 mm	12	10 %	Through Hole
