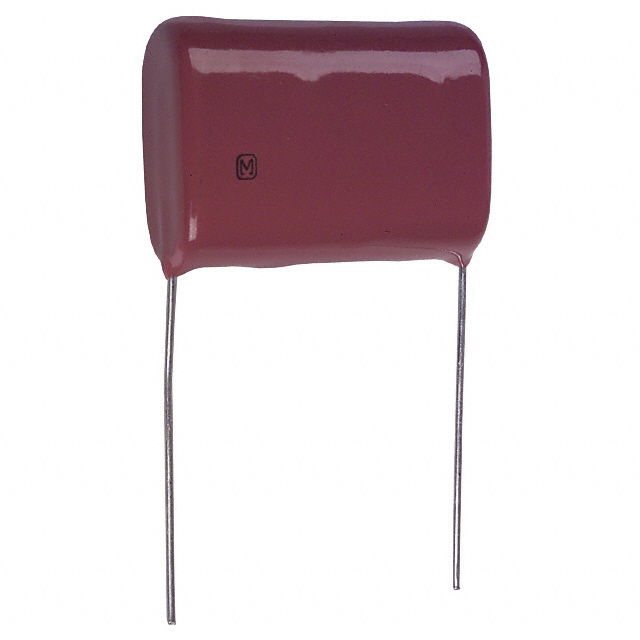

ECQ-E2825 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
CAP FILM 8.2UF 10% 250VDC RADIAL
| Part | Voltage Rating - DC | Mounting Type | Capacitance | Termination | Lead Spacing | Lead Spacing | Tolerance | Dielectric Material | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 250 V | Through Hole | 8.2 µF | PC Pins | 0.886 in | 22.5 mm | 10 % | Polyester Metallized | General Purpose | -40 C | 105 ░C | Radial | 31 mm | 0.563 " | 1.22 in | 14.3 mm |
Panasonic Electronic Components | 250 V | Through Hole | 8.2 µF | PC Pins | 0.886 in | 22.5 mm | 10 % | Polyester Metallized | General Purpose | -40 C | 105 ░C | Radial | 31 mm | 0.563 " | 1.22 in | 14.3 mm |
Panasonic Electronic Components | 250 V | Through Hole | 8.2 µF | PC Pins | 0.886 in | 22.5 mm | 5 % | Polyester Metallized | General Purpose | -40 C | 105 ░C | Radial | 31 mm | 0.563 " | 1.22 in | 14.3 mm |
