306-036 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 72POS 0.156
| Part | Termination Rows | Material - Insulation | Pitch | Pitch | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Color | Number of Rows [custom] | Card Thickness [Max] | Card Thickness [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Card Type | Number of Positions | Gender | Read Out | Contact Finish | Mounting Type | Contact Type | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

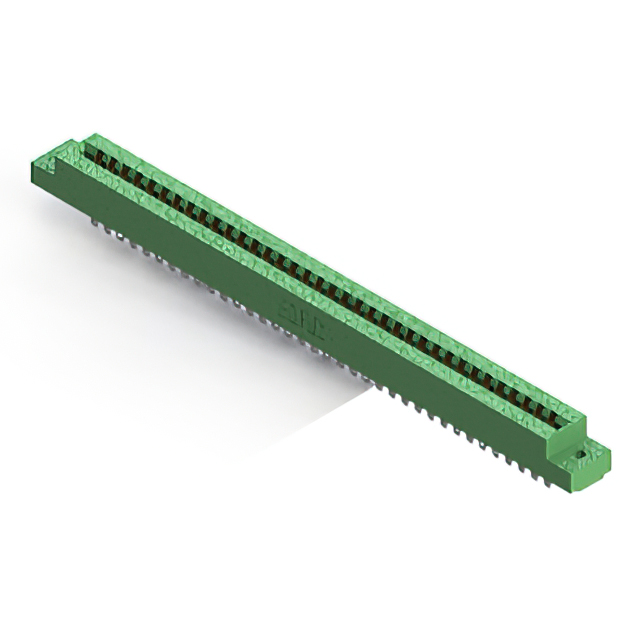

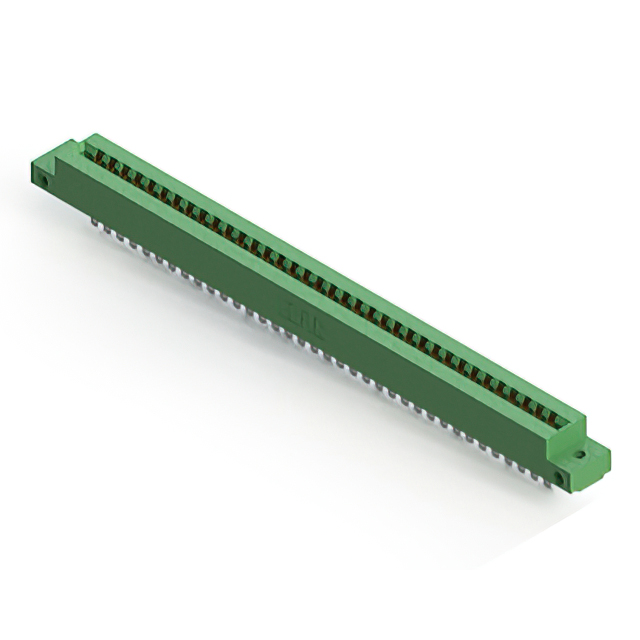

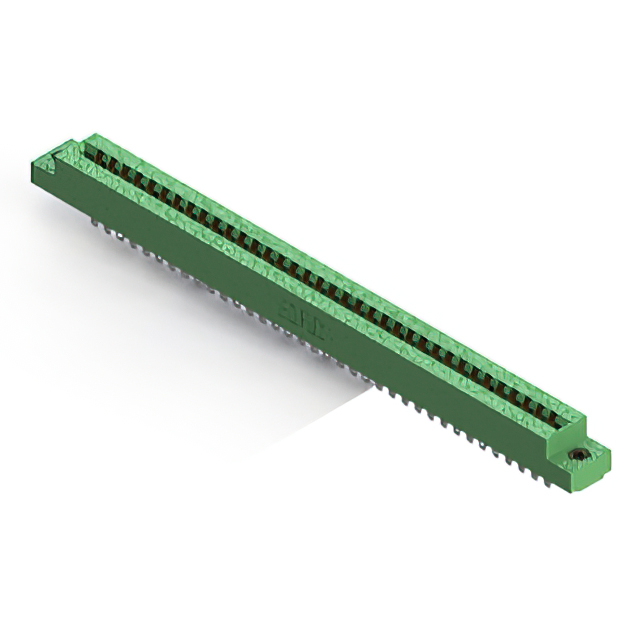

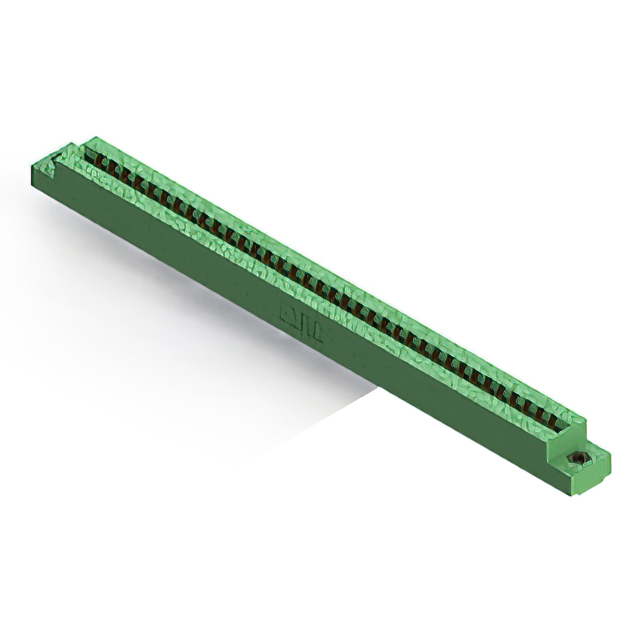

 EDAC Inc. | 1 | Polyester Thermoplastic | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Green | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | Solder Eyelet(s) | Non Specified - Dual Edge | 72 | Female | Dual | Gold | Panel Mount | Cantilever | Copper Alloy | 0.25 Ám | 10 Áin | 36 | |

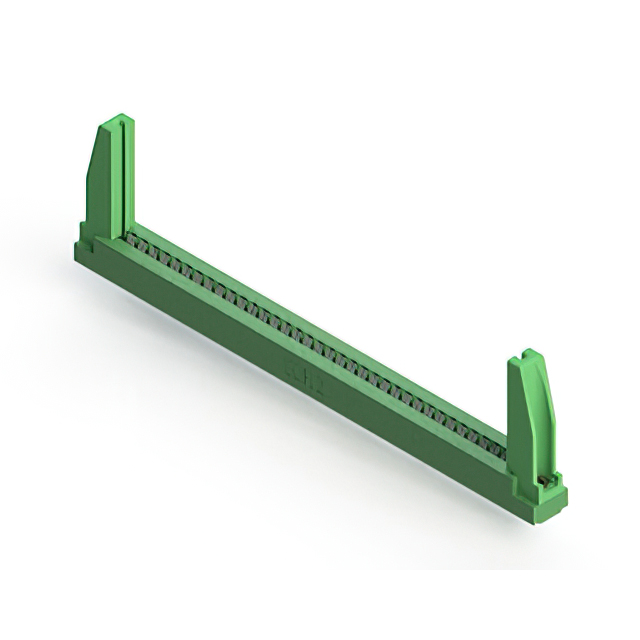

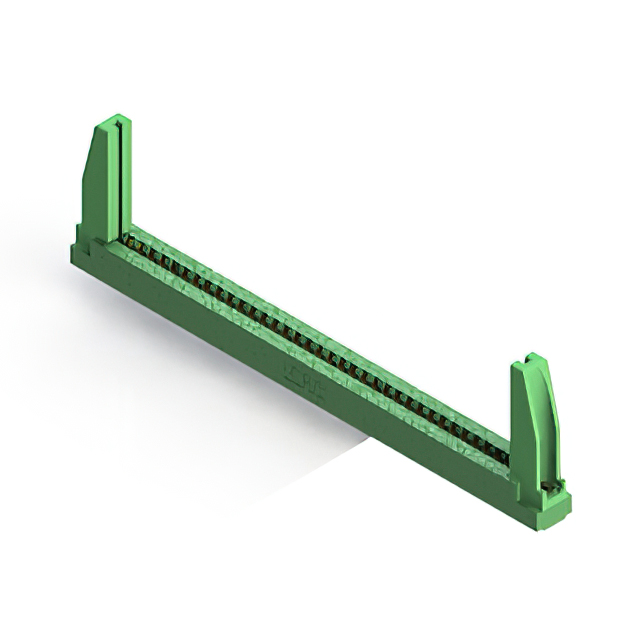

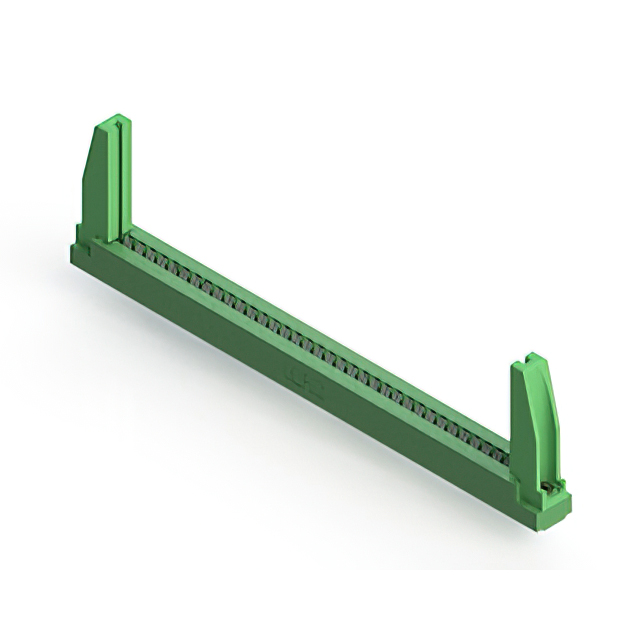

 EDAC Inc. | 1 | Polyester Thermoplastic | 3.96 mm | 0.156 in | 4-40 Flush Mount Threaded Insert Top Opening | Green | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | Solder | Non Specified - Dual Edge | 72 | Female | Dual | Tin | Panel Mount Through Hole | Cantilever | Copper Alloy | 36 | Card Guides | ||||
 EDAC Inc. | 1 | Polyester Thermoplastic | 3.96 mm | 0.156 in | 4-40 Flush Mount Threaded Insert Top Opening | Green | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | Solder Eyelet(s) | Non Specified - Dual Edge | 72 | Female | Dual | Gold | Panel Mount | Cantilever | Copper Alloy | 0.25 Ám | 10 Áin | 36 | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 " | Green | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | Solder | Non Specified - Dual Edge | 72 | Female | Dual | Tin | Panel Mount Through Hole | Cantilever | Copper Alloy | 36 | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | 3.96 mm | 0.156 in | 4-40 Flush Mount Threaded Insert Top Opening | Green | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | Solder | Non Specified - Dual Edge | 72 | Female | Dual | Tin | Panel Mount Through Hole | Cantilever | Copper Alloy | 36 | Card Guides | ||||
 EDAC Inc. | 1 | Polyester Thermoplastic | 3.96 mm | 0.156 in | 4-40 Flush Mount Threaded Insert Top Opening | Green | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | Solder | Non Specified - Dual Edge | 72 | Female | Dual | Gold | Panel Mount Through Hole | Cantilever | Copper Alloy | 0.25 Ám | 10 Áin | 36 | Card Guides | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 " | Green | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | Solder Eyelet(s) | Non Specified - Dual Edge | 72 | Female | Dual | Gold | Panel Mount | Cantilever | Copper Alloy | 0.25 Ám | 10 Áin | 36 | |
 EDAC Inc. | 1 | Polyester Thermoplastic | 3.96 mm | 0.156 in | Flush Mount M3 Threaded Insert Top Opening | Green | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | Solder | Non Specified - Dual Edge | 72 | Female | Dual | Gold | Panel Mount Through Hole | Cantilever | Copper Alloy | 0.25 Ám | 10 Áin | 36 | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | 3.96 mm | 0.156 in | Flush Mount Side Opening Unthreaded | 3.25 mm | 0.128 " | Green | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | Solder Eyelet(s) | Non Specified - Dual Edge | 72 | Female | Dual | Gold | Panel Mount | Cantilever | Copper Alloy | 0.25 Ám | 10 Áin | 36 | |
 EDAC Inc. | 1 | Polyester Thermoplastic | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Green | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | Solder | Non Specified - Dual Edge | 72 | Female | Dual | Gold | Through Hole | Cantilever | Copper Alloy | 36 |
