56000001019 Series

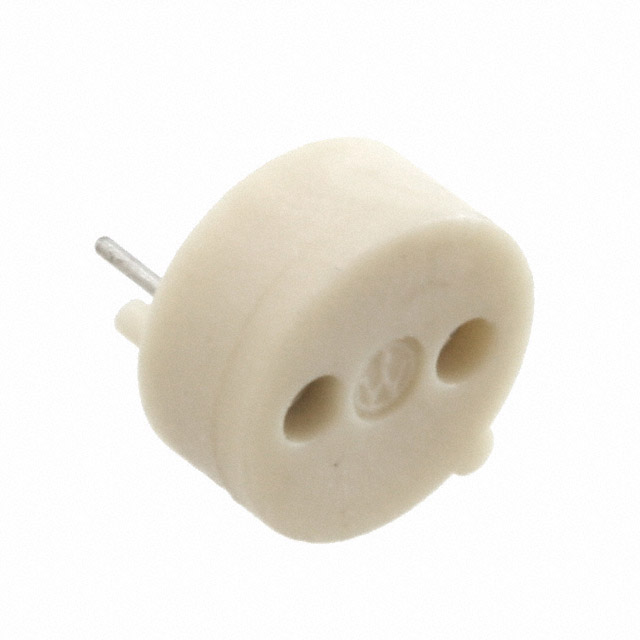

ACS TR5/TE5 FUSEHLDR 6.3A/1.6W/4.3mm

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

ACS TR5/TE5 FUSEHLDR 6.3A/1.6W/4.3mm

Part	Voltage	Contact Finish	Mounting Type	Current Rating (Amps)	Contact Material	Termination Style	Orientation	Fuse Type	Fuseholder Type	For Use With/Related Products	Number of Circuits	Fuse Size	Fuse Size
Littelfuse/Commercial Vehicle Products 56000001019	250 V	Tin	Through Hole	6.3 A	Copper Alloy	PC Pin	Vertical	Radial	Holder	Can Radial Box	1	0.2 in	5.08 mm

Catalog

ACS TR5/TE5 FUSEHLDR 6.3A/1.6W/4.3mm

Description

Mounting PC Board, 5.08 mm pin spacing Materials Holder: Thermoplastic, UL 94 V-0 Polyester PCT Metal Parts: Copper alloy; solderable tinned Electrical Data (23oC) Rated Voltage: 250 V Max. Current/Power: 6.3 A/1.6 W Soldering Heat Resistance max. 280oC, 10 s (Wave) Minimum Cross Section Conducting path - 0.1 mm2 Unit Weight 0,4 g
