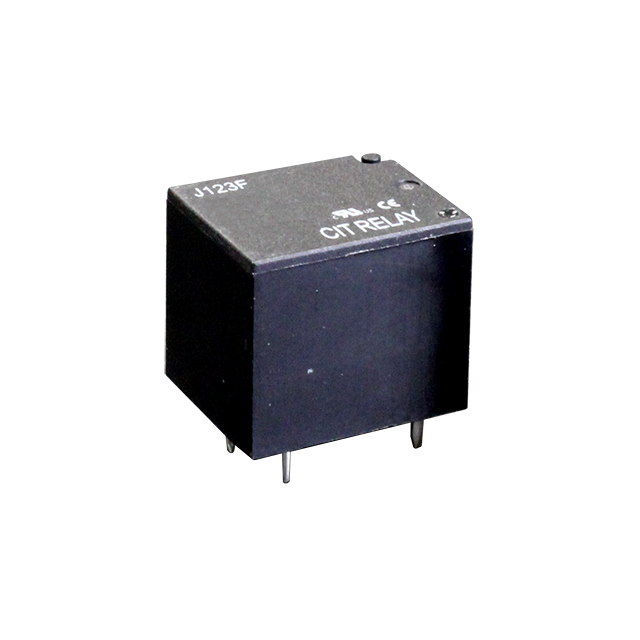

J123F1C Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
RELAY GEN PURPOSE SPDT 20A 12V
| Part | Coil Resistance | Seal Rating | Switching Voltage [Max] | Contact Form | Termination Style | Approval Agency | Coil Current | Coil Type | Load - Max Switching | Release Time | Contact Material | Coil Voltage | Coil Insulation | Contact Rating (Current) | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Must Operate Voltage | Relay Type | Must Release Voltage | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 400 Ohms | Sealed - Fully | 110 VDC 380 VAC | SPDT (1 Form C) | PC Pin | cURus TUV | 0.03 A | Non Latching | 2200 W 7600 VA | 5 ms | Silver Tin Oxide Indium Oxide (AgSnOInO) | 12 VDC | Class F | 20 A | Through Hole | -55 C | 125 °C | 9 VDC | General Purpose | 1.2 VDC | 10 ms |
CIT Relay and Switch | 1280 Ohms | Sealed - Fully | 110 VDC 380 VAC | SPDT (1 Form C) | PC Pin | cURus TUV | 18.8 mA | Non Latching | 2200 W 7600 VA | 5 ms | Silver Tin Oxide Indium Oxide (AgSnOInO) | 24 VDC | Class F | 20 A | Through Hole | -55 C | 125 °C | 18 VDC | General Purpose | 2.4 VDC | 10 ms |
CIT Relay and Switch | 56 Ohms | Sealed - Fully | 110 VDC 380 VAC | SPDT (1 Form C) | PC Pin | cURus TUV | 89.3 mA | Non Latching | 2200 W 7600 VA | 5 ms | Silver Tin Oxide Indium Oxide (AgSnOInO) | 5 VDC | Class F | 20 A | Through Hole | -55 C | 125 °C | 3.75 VDC | General Purpose | 0.5 VDC | 10 ms |
CIT Relay and Switch | 1.6 kOhms | Sealed - Fully | 110 VDC 380 VAC | SPDT (1 Form C) | PC Pin | cURus TUV | 0.015 A | Non Latching | 2200 W 7600 VA | 5 ms | Silver Tin Oxide Indium Oxide (AgSnOInO) | 24 VDC | Class F | 20 A | Through Hole | -55 C | 125 °C | 18 VDC | General Purpose | 2.4 VDC | 10 ms |
CIT Relay and Switch | 70 Ohms | Sealed - Fully | 110 VDC 380 VAC | SPDT (1 Form C) | PC Pin | cURus TUV | 71.4 mA | Non Latching | 2200 W 7600 VA | 5 ms | Silver Tin Oxide Indium Oxide (AgSnOInO) | 5 VDC | Class F | 20 A | Through Hole | -55 C | 125 °C | 3.75 VDC | General Purpose | 0.5 VDC | 10 ms |
CIT Relay and Switch | 320 Ohms | Sealed - Fully | 110 VDC 380 VAC | SPDT (1 Form C) | PC Pin | cURus TUV | 0.0375 A | Non Latching | 2200 W 7600 VA | 5 ms | Silver Tin Oxide Indium Oxide (AgSnOInO) | 12 VDC | Class F | 20 A | Through Hole | -55 C | 125 °C | 9 VDC | General Purpose | 1.2 VDC | 10 ms |
CIT Relay and Switch | 5.12 kOhms | Sealed - Fully | 110 VDC 380 VAC | SPDT (1 Form C) | PC Pin | cURus TUV | 9.4 mA | Non Latching | 2200 W 7600 VA | 5 ms | Silver Tin Oxide Indium Oxide (AgSnOInO) | 48 VDC | Class F | 20 A | Through Hole | -55 C | 125 °C | 36 VDC | General Purpose | 4.8 VDC | 10 ms |
CIT Relay and Switch | 6.4 kOhms | Sealed - Fully | 110 VDC 380 VAC | SPDT (1 Form C) | PC Pin | cURus TUV | 7.5 mA | Non Latching | 2200 W 7600 VA | 5 ms | Silver Tin Oxide Indium Oxide (AgSnOInO) | 48 VDC | Class F | 20 A | Through Hole | -55 C | 125 °C | 36 VDC | General Purpose | 4.8 VDC | 10 ms |
