cr Series

Manufacturer: Ohmite

Catalog

HEATSINK: EXTRUDED; GRILLED; TO247,TO264; BLACK; L: 50MM; W: 34MM

Part	Attachment Method	Width [x]	Width [x]	Material Finish	Thermal Resistance @ Natural	Shape [custom]	Shape [custom]	Length [x]	Length [x]	Type	Package Cooled	Material	Width [y]	Width [y]	Fin Height [custom]	Fin Height [custom]	Length	Length

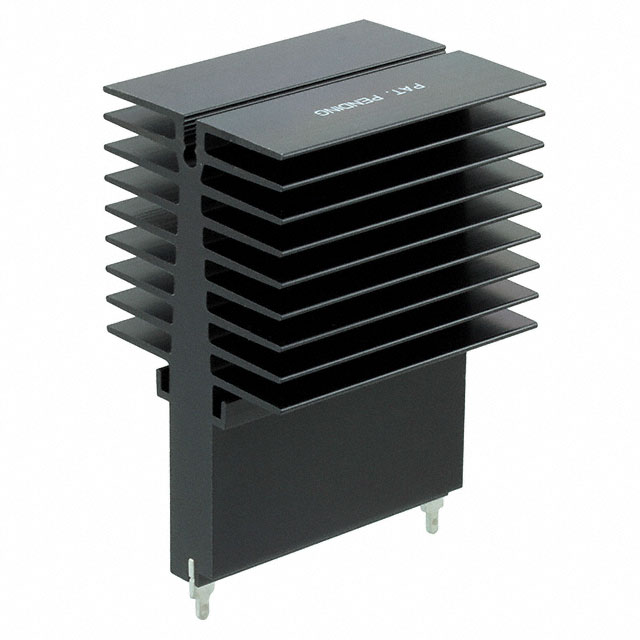

Ohmite CR201-50AE	3 Clips and PC Pin	75 mm	2.953 in	Black Anodized	3.3 °C/W	Rectangular	Fins	50 mm	1.969 in	Board Level Vertical	TO-201	Aluminum Alloy
Ohmite CR401-50VE	2 Clips and PC Pin	75 mm	2.953 in	Degreased	3.8 °C/W	Rectangular	Fins	50 mm	1.969 in	Board Level Vertical	TO-401	Aluminum Alloy
Ohmite CR301-50VE	2 Clips and PC Pin			Degreased	5.7 °C/W	Rectangular	Fins	50 mm	1.969 in	Board Level Vertical	TO-301	Aluminum Alloy	2.362 in	60 mm

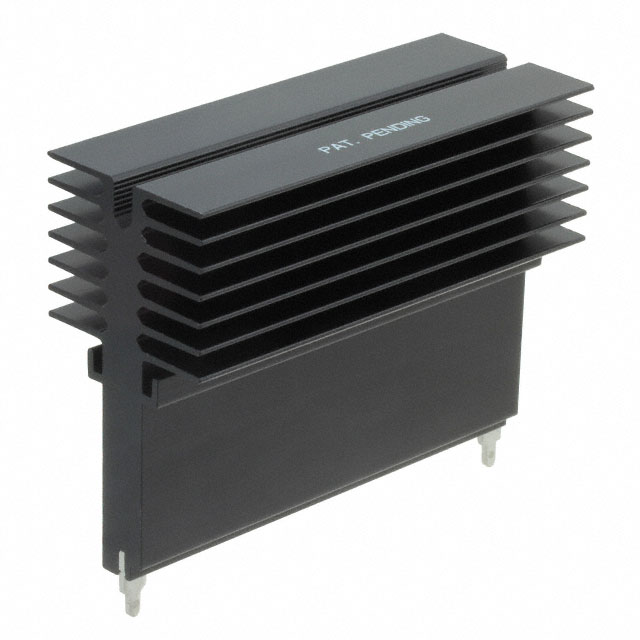

Ohmite CR301-75AE	2 Clips and PC Pin			Black Anodized	4.5 °C/W	Rectangular	Fins			Board Level Vertical	TO-247 TO-264 TO-301	Aluminum Alloy	2.362 in	60 mm	2.36 "	59.94 mm	75 mm	2.953 in
Ohmite CR201-50VE	3 Clips and PC Pin	75 mm	2.953 in	Degreased	3.3 °C/W	Rectangular	Fins	50 mm	1.969 in	Board Level Vertical	TO-201	Aluminum Alloy
Ohmite CR201-25AE	3 Clips and PC Pin	75 mm	2.953 in	Black Anodized	4.7 °C/W	Rectangular	Fins		0.984 in	Board Level Vertical	TO-201	Aluminum Alloy					25 mm

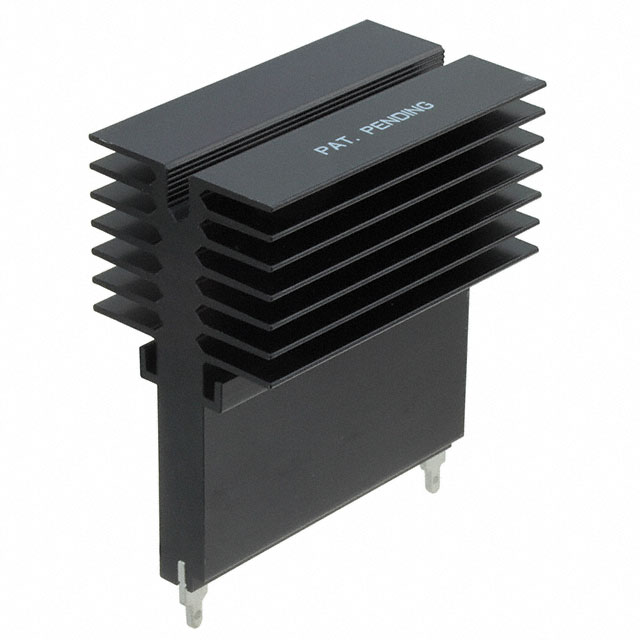

Ohmite CR301-50AE	2 Clips and PC Pin			Black Anodized	5.7 °C/W	Rectangular	Fins	50 mm	1.969 in	Board Level Vertical	TO-301	Aluminum Alloy	2.362 in	60 mm

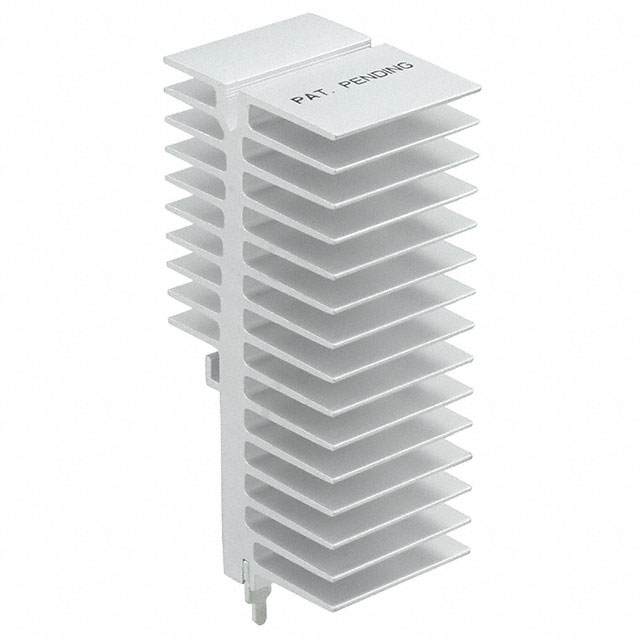

Ohmite CR201-25VE	3 Clips and PC Pin	75 mm	2.953 in	Degreased	4.7 °C/W	Rectangular	Fins		0.984 in	Board Level Vertical	TO-201	Aluminum Alloy					25 mm

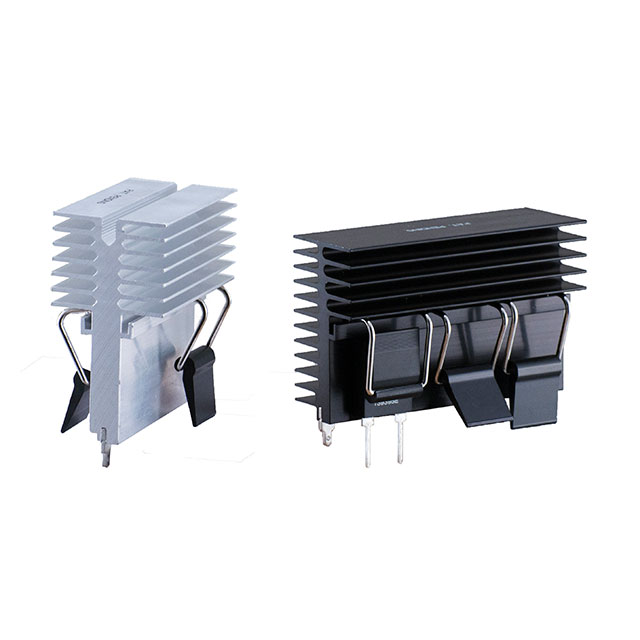

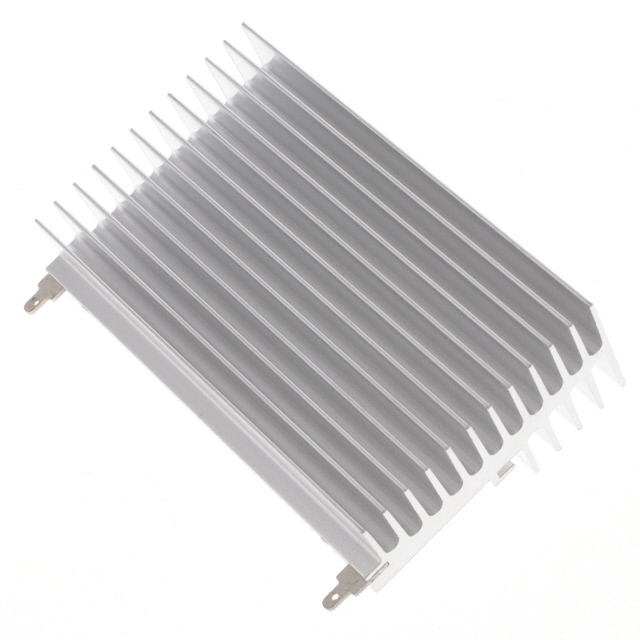

Ohmite CR101-75VE	3 Clips and PC Pin	50 mm	1.969 in	Degreased	4.2 °C/W	Rectangular	Fins			Board Level Vertical	TO-101	Aluminum Alloy					75 mm	2.953 in
