65805 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

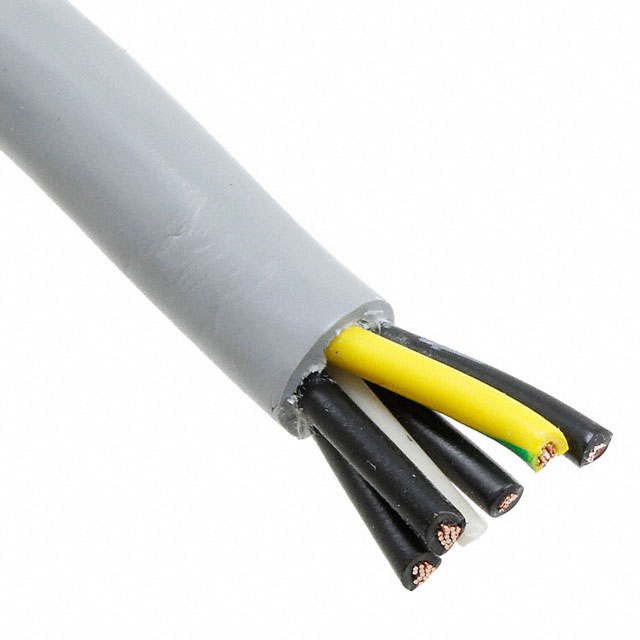

CABLE 5COND 18AWG SLATE 100'
| Part | Jacket Color | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Cable Type | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length [x] | Length [x] | Conductor Material | Features | Voltage | Ratings | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Slate | Poly-Vinyl Chloride (PVC) | 0.035 in | 0.889 mm | 18 AWG | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 16 | 30 AWG | 5 | 8.28 mm | 0.326 " | 100 ft | 30.5 m | Copper Bare | Biological Compatibility | 600 V | ISO 10993 UL Style 2587 | ||
ALPHA WIRE | Slate | Poly-Vinyl Chloride (PVC) | 0.035 in | 0.889 mm | 18 AWG | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 16 | 30 AWG | 5 | 8.28 mm | 0.326 " | Copper Bare | Biological Compatibility | 600 V | ISO 10993 UL Style 2587 | 304.8 m | 1000 ft | ||
ALPHA WIRE | Slate | Poly-Vinyl Chloride (PVC) | 0.035 in | 0.889 mm | 18 AWG | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 16 | 30 AWG | 5 | 8.28 mm | 0.326 " | Copper Bare | Biological Compatibility | 600 V | ISO 10993 UL Style 2587 | 304.8 m | 1000 ft | ||
ALPHA WIRE | Slate | Poly-Vinyl Chloride (PVC) | 0.035 in | 0.889 mm | 18 AWG | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 16 | 30 AWG | 5 | 8.28 mm | 0.326 " | Copper Bare | Biological Compatibility | 600 V | ISO 10993 UL Style 2587 | 152.4 m | 500 ft |
