861-83 Series

Manufacturer: Preci-Dip

Catalog

Catalog

CONN SOCKET 31POS 0.039 GOLD PCB

...

Part	Contact Shape	Contact Material	Insulation Material	Material Flammability Rating	Number of Rows	Pitch - Mating	Pitch - Mating	Termination	Contact Type	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Contact Length - Post	Contact Length - Post	Insulation Color	Connector Type	Contact Finish - Post	Fastening Type	Mounting Type	Number of Positions [custom]	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Contact Finish - Mating	Number of Positions	Number of Positions

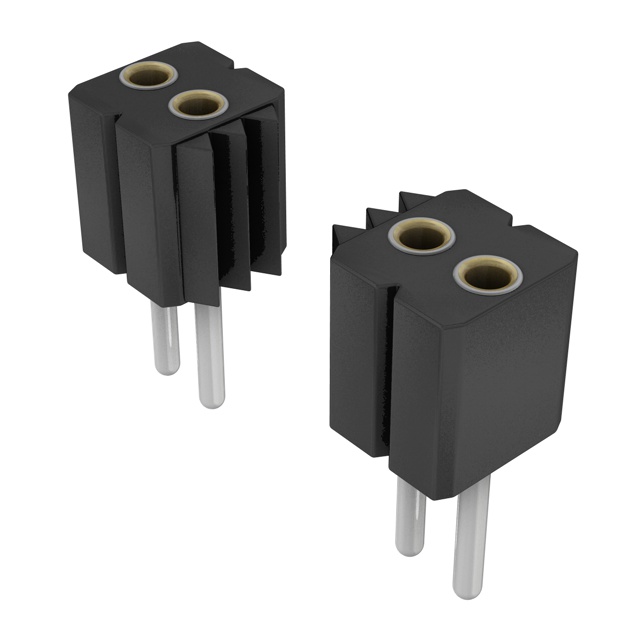

Preci-Dip 861-83-031-10-001101	Circular	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	UL94 V-0	1	1 mm	0.039 in	Solder	Female Socket	29.5 µin	0.75 µm	2.5 mm	0.098 in	Black	Socket	Tin	Push-Pull	Through Hole	31	All	-55 C	125 °C	0.098 "	2.5 mm	Gold

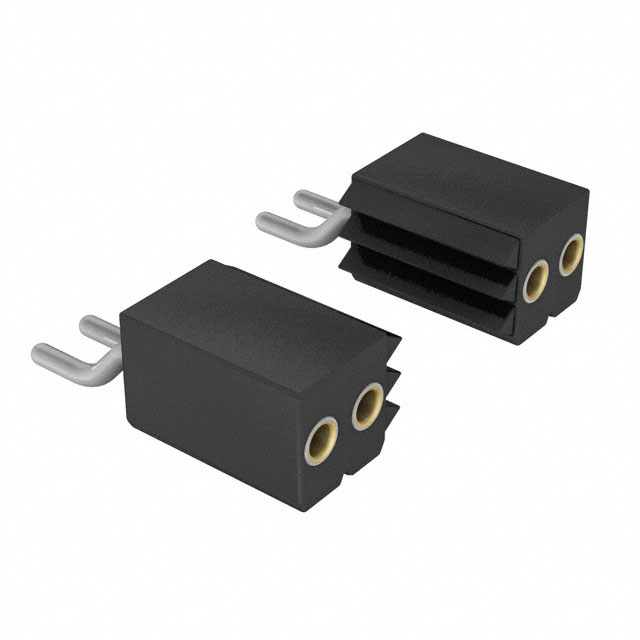

Preci-Dip 861-83-046-40-001101	Circular	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	UL94 V-0	1	1 mm	0.039 in	Solder	Female Socket	29.5 µin	0.75 µm			Black	Socket	Tin	Push-Pull	Right Angle Surface Mount		All	-55 C	125 °C	0.087 "	2.2 mm	Gold	46

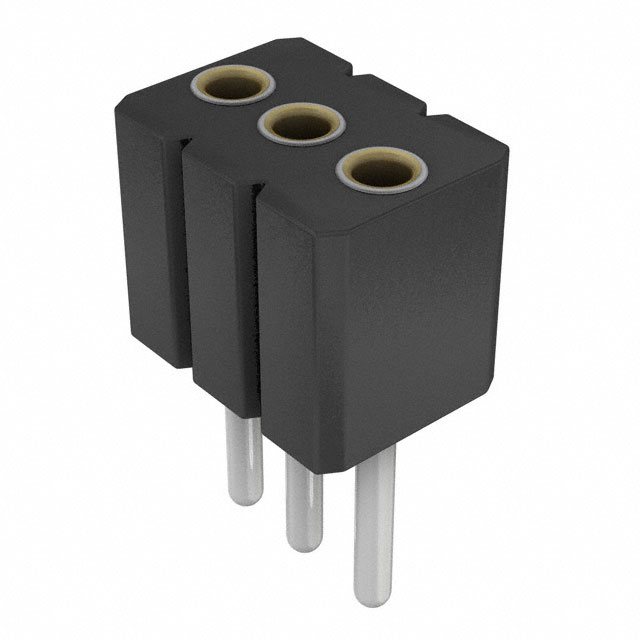

Preci-Dip 861-83-003-10-001101	Circular	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	UL94 V-0	1	1 mm	0.039 in	Solder	Female Socket	29.5 µin	0.75 µm	2.5 mm	0.098 in	Black	Socket	Tin	Push-Pull	Through Hole		All	-55 C	125 °C	0.098 "	2.5 mm	Gold
Preci-Dip 861-83-041-10-001101	Circular	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	UL94 V-0	1	1 mm	0.039 in	Solder	Female Socket	29.5 µin	0.75 µm	2.5 mm	0.098 in	Black	Socket	Tin	Push-Pull	Through Hole		All	-55 C	125 °C	0.098 "	2.5 mm	Gold	41
Preci-Dip 861-83-010-40-001101	Circular	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	UL94 V-0	1	1 mm	0.039 in	Solder	Female Socket	29.5 µin	0.75 µm			Black	Socket	Tin	Push-Pull	Right Angle Surface Mount		All	-55 C	125 °C	0.087 "	2.2 mm	Gold	10
Preci-Dip 861-83-031-40-001101	Circular	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	UL94 V-0	1	1 mm	0.039 in	Solder	Female Socket	29.5 µin	0.75 µm			Black	Socket	Tin	Push-Pull	Right Angle Surface Mount	31	All	-55 C	125 °C	0.087 "	2.2 mm	Gold
Preci-Dip 861-83-023-10-001101	Circular	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	UL94 V-0	1	1 mm	0.039 in	Solder	Female Socket	29.5 µin	0.75 µm	2.5 mm	0.098 in	Black	Socket	Tin	Push-Pull	Through Hole		All	-55 C	125 °C	0.098 "	2.5 mm	Gold	23
Preci-Dip 861-83-032-40-001101	Circular	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	UL94 V-0	1	1 mm	0.039 in	Solder	Female Socket	29.5 µin	0.75 µm			Black	Socket	Tin	Push-Pull	Right Angle Surface Mount		All	-55 C	125 °C	0.087 "	2.2 mm	Gold
Preci-Dip 861-83-012-10-001101	Circular	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	UL94 V-0	1	1 mm	0.039 in	Solder	Female Socket	29.5 µin	0.75 µm	2.5 mm	0.098 in	Black	Socket	Tin	Push-Pull	Through Hole		All	-55 C	125 °C	0.098 "	2.5 mm	Gold	12
Preci-Dip 861-83-047-10-001101	Circular	Beryllium Copper	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	UL94 V-0	1	1 mm	0.039 in	Solder	Female Socket	29.5 µin	0.75 µm	2.5 mm	0.098 in	Black	Socket	Tin	Push-Pull	Through Hole		All	-55 C	125 °C	0.098 "	2.5 mm	Gold		47
