392-049 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 49POS 0.100

Part	Termination Rows	Material - Insulation	Mounting Type	Number of Positions	Number of Positions/Bay/Row	Gender	Termination	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Card Thickness [Max]	Card Thickness [Min]	Read Out	Color	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Card Type	Contact Type	Number of Rows	Contact Finish	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 392-049-523-101	1	Polyester Thermoplastic	Through Hole	49	49	Female	Solder	0.25 Ám	10 Áin	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	Black	Copper Alloy	-40 C	105 ░C	Non Specified - Single Edge	Cantilever	1	Gold
EDAC Inc. 392-049-542-104	1	Polyester Thermoplastic	Through Hole	49	49	Female	Wire Wrap	0.25 Ám	10 Áin	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	Black	Copper Alloy	-40 C	105 ░C	Non Specified - Single Edge	Cantilever	1	Gold	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm
EDAC Inc. 392-049-523-102	1	Polyester Thermoplastic	Through Hole	49	49	Female	Solder	0.25 Ám	10 Áin	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	Black	Copper Alloy	-40 C	105 ░C	Non Specified - Single Edge	Cantilever	1	Gold	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm
EDAC Inc. 392-049-521-101	1	Polyester Thermoplastic	Through Hole	49	49	Female	Solder	0.25 Ám	10 Áin	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	Black	Copper Alloy	-40 C	105 ░C	Non Specified - Single Edge	Cantilever	1	Gold
EDAC Inc. 392-049-540-102	1	Polyester Thermoplastic	Through Hole	49	49	Female	Wire Wrap	0.25 Ám	10 Áin	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	Black	Copper Alloy	-40 C	105 ░C	Non Specified - Single Edge	Cantilever	1	Gold	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm
EDAC Inc. 392-049-520-101	1	Polyester Thermoplastic	Through Hole	49	49	Female	Solder	0.25 Ám	10 Áin	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	Black	Copper Alloy	-40 C	105 ░C	Non Specified - Single Edge	Cantilever	1	Gold
EDAC Inc. 392-049-524-101	1	Polyester Thermoplastic	Through Hole	49	49	Female	Solder	0.25 Ám	10 Áin	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	Black	Copper Alloy	-40 C	105 ░C	Non Specified - Single Edge	Cantilever	1	Gold

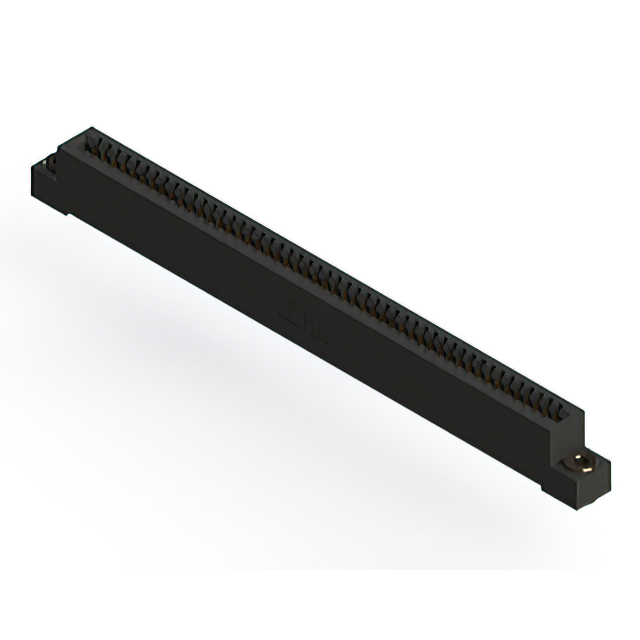

EDAC Inc. 392-049-524-103	1	Polyester Thermoplastic	Through Hole	49	49	Female	Solder	0.25 Ám	10 Áin	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	Black	Copper Alloy	-40 C	105 ░C	Non Specified - Single Edge	Cantilever	1	Gold	Floating Bobbin Flush Mount	0.116 "	2.95 mm
EDAC Inc. 392-049-540-103	1	Polyester Thermoplastic	Through Hole	49	49	Female	Wire Wrap	0.25 Ám	10 Áin	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	Black	Copper Alloy	-40 C	105 ░C	Non Specified - Single Edge	Cantilever	1	Gold	Floating Bobbin Flush Mount	0.116 "	2.95 mm
EDAC Inc. 392-049-540-104	1	Polyester Thermoplastic	Through Hole	49	49	Female	Wire Wrap	0.25 Ám	10 Áin	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	Black	Copper Alloy	-40 C	105 ░C	Non Specified - Single Edge	Cantilever	1	Gold	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm
