3410.0022 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

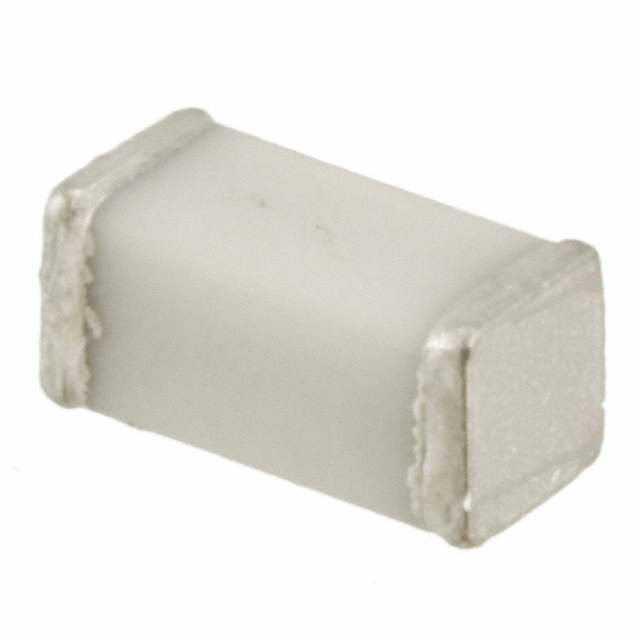

FUSE BRD MT 250MA 125VAC/VDC SMD
| Part | DC Cold Resistance | Response Time | Voltage Rating - DC | Voltage Rating - AC | Melting I²t | Fuse Type | Current Rating (Amps) | Mounting Type | Package / Case | Breaking Capacity @ Rated Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Melting I˛t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 0.8 Ohms | Fast Blow | 125 VDC | 125 V | 0.0009 I²t | Board Mount (Cartridge Style Excluded) | 0.25 A | Surface Mount | 2-SMD Square End Block | 50 A 300 A | -55 C | 150 °C | 0.061 in | 0.126 " | 1.55 mm | 1.55 mm | 0.061 in | 3.2 mm | |
 SCHURTER Inc. | 0.8 Ohms | Fast Blow | 125 VDC | 125 V | 0.0009 I²t | Board Mount (Cartridge Style Excluded) | 0.25 A | Surface Mount | 2-SMD Square End Block | 50 A 300 A | -55 C | 150 °C | 0.061 in | 0.126 " | 1.55 mm | 1.55 mm | 0.061 in | 3.2 mm | 0.0009 |
