MEC1-110 Series

Catalog

CONN EDGE DUAL FMALE 20POS 0.039

Part	Contact Finish Thickness	Contact Finish Thickness	Read Out	Number of Rows	Mounting Type	Material - Insulation	Gender	Card Thickness	Card Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Termination	Contact Finish	Number of Positions	Card Type	Contact Type	Color	Features	Pitch [x]	Pitch [x]

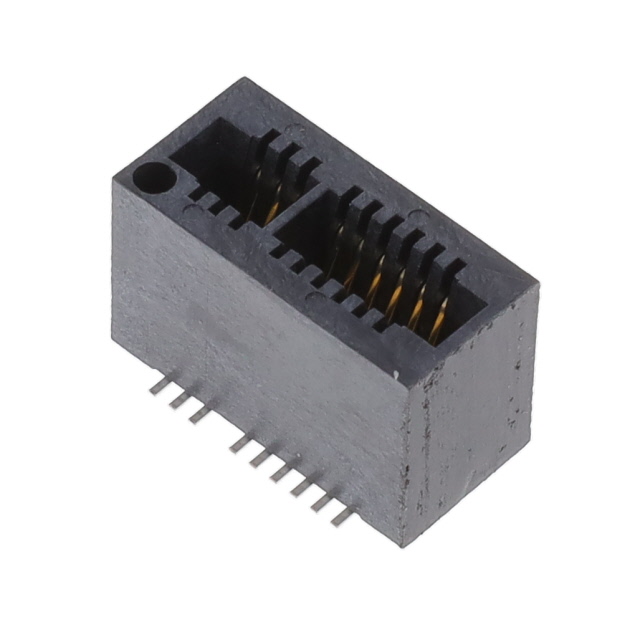

Samtec Inc. MEC1-110-02-F-D-K-TR	3 Áin	0.076 Ám	Dual	2	Surface Mount	Liquid Crystal Polymer (LCP)	Female	0.062 in	1.57 mm	-55 °C	125 °C	Beryllium Copper	Solder	Gold	20	Non Specified - Dual Edge	Loop Bellows	Black	Pick and Place	0.039 in	1 mm
Samtec Inc. MEC1-110-02-S-D-A-K-TR	30 Áin	0.76 Ám	Dual	2	Surface Mount	Liquid Crystal Polymer (LCP)	Female	0.062 in	1.57 mm	-55 °C	125 °C	Beryllium Copper	Solder	Gold	20	Non Specified - Dual Edge	Loop Bellows	Black	Board Guide Pick and Place	0.039 in	1 mm
Samtec Inc. MEC1-110-02-L-D-NP-A-K-TR	10 Áin	0.25 Ám	Dual	2	Surface Mount	Liquid Crystal Polymer (LCP)	Female	0.062 in	1.57 mm	-55 °C	125 °C	Beryllium Copper	Solder	Gold	20	Non Specified - Dual Edge	Loop Bellows	Black	Board Guide Pick and Place	0.039 in	1 mm
Samtec Inc. MEC1-110-02-L-D-A	10 Áin	0.25 Ám	Dual	2	Surface Mount	Liquid Crystal Polymer (LCP)	Female	0.062 in	1.57 mm	-55 °C	125 °C	Beryllium Copper	Solder	Gold	20	Non Specified - Dual Edge	Loop Bellows	Black	Board Guide	0.039 in	1 mm
Samtec Inc. MEC1-110-02-F-D-A-K-TR	3 Áin	0.076 Ám	Dual	2	Surface Mount	Liquid Crystal Polymer (LCP)	Female	0.062 in	1.57 mm	-55 °C	125 °C	Beryllium Copper	Solder	Gold	20	Non Specified - Dual Edge	Loop Bellows	Black	Board Guide Pick and Place	0.039 in	1 mm
Samtec Inc. MEC1-110-02-L-D-NP	10 Áin	0.25 Ám	Dual	2	Surface Mount	Liquid Crystal Polymer (LCP)	Female	0.062 in	1.57 mm	-55 °C	125 °C	Beryllium Copper	Solder	Gold	20	Non Specified - Dual Edge	Loop Bellows	Black		0.039 in	1 mm
Samtec Inc. MEC1-110-02-F-D-NP-A-K-TR	3 Áin	0.076 Ám	Dual	2	Surface Mount	Liquid Crystal Polymer (LCP)	Female	0.062 in	1.57 mm	-55 °C	125 °C	Beryllium Copper	Solder	Gold	20	Non Specified - Dual Edge	Loop Bellows	Black	Board Guide Pick and Place	0.039 in	1 mm
Samtec Inc. MEC1-110-02-F-D-LC	3 Áin	0.076 Ám	Dual	2	Surface Mount	Liquid Crystal Polymer (LCP)	Female	0.062 in	1.57 mm	-55 °C	125 °C	Beryllium Copper	Solder	Gold	20	Non Specified - Dual Edge	Loop Bellows	Black		0.039 in	1 mm
Samtec Inc. MEC1-110-02-F-D-A-K	3 Áin	0.076 Ám	Dual	2	Surface Mount	Liquid Crystal Polymer (LCP)	Female	0.062 in	1.57 mm	-55 °C	125 °C	Beryllium Copper	Solder	Gold	20	Non Specified - Dual Edge	Loop Bellows	Black	Board Guide Pick and Place	0.039 in	1 mm

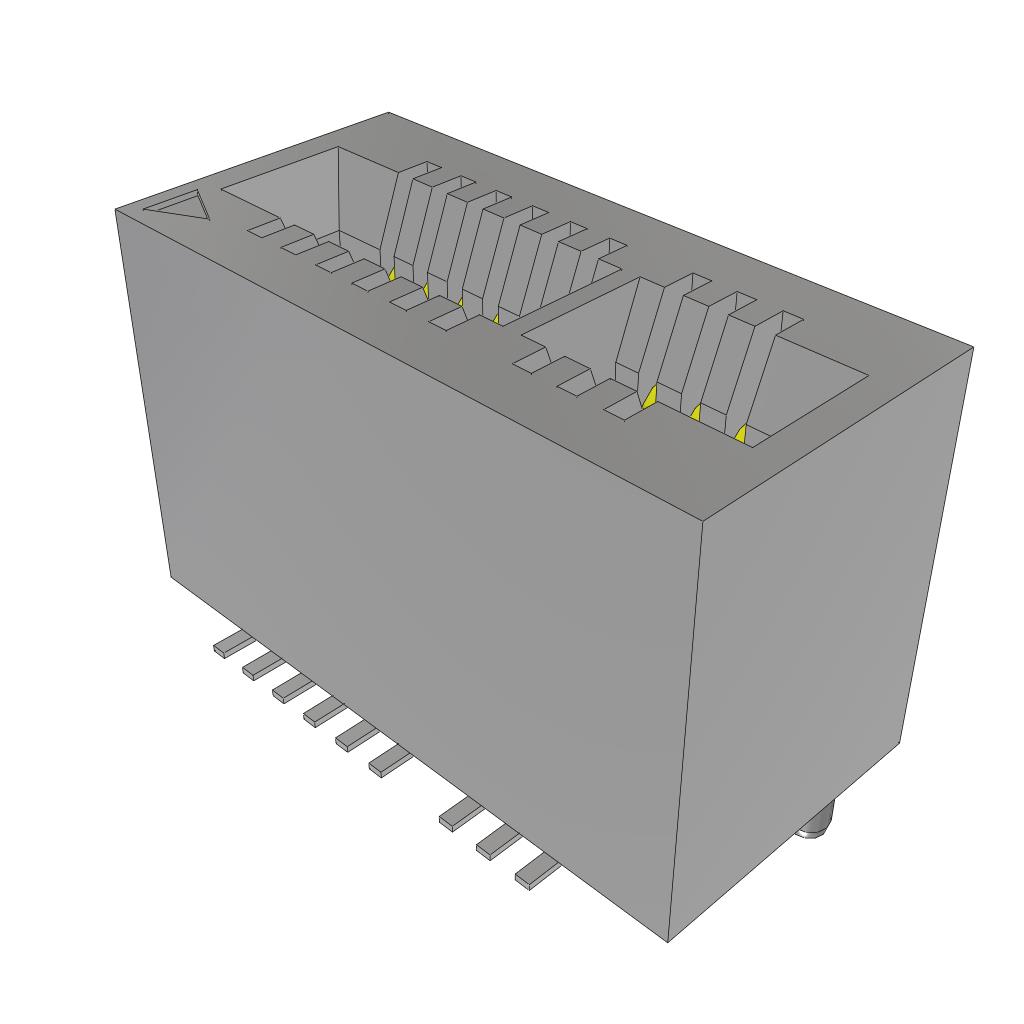

Samtec Inc. MEC1-110-02-F-D-A	3 Áin	0.076 Ám	Dual	2	Surface Mount	Liquid Crystal Polymer (LCP)	Female	0.062 in	1.57 mm	-55 °C	125 °C	Beryllium Copper	Solder	Gold	20	Non Specified - Dual Edge	Loop Bellows	Black	Board Guide	0.039 in	1 mm
