177-009 Series
Manufacturer: NorComp Inc.
Beta
⌘K

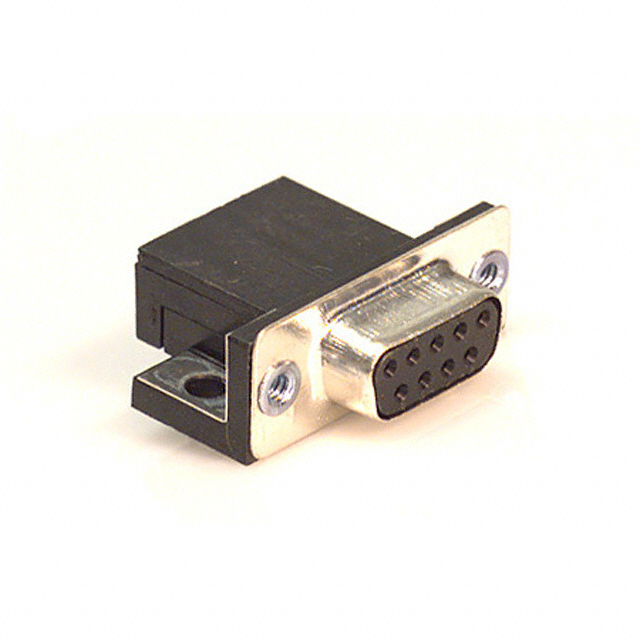

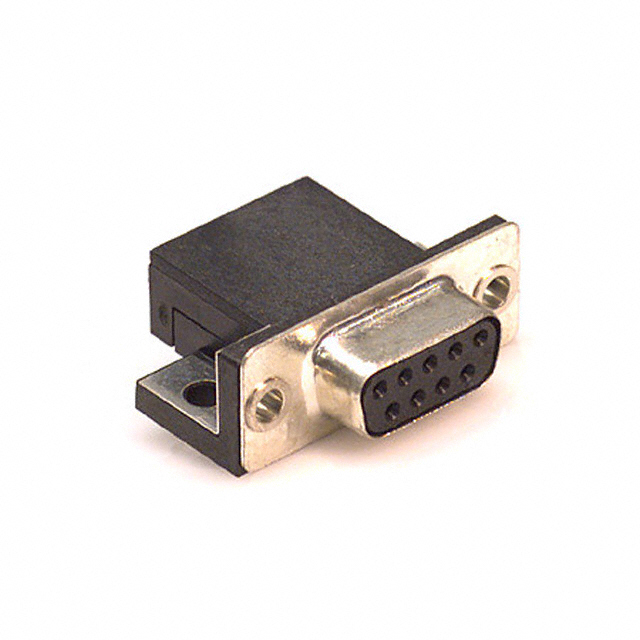

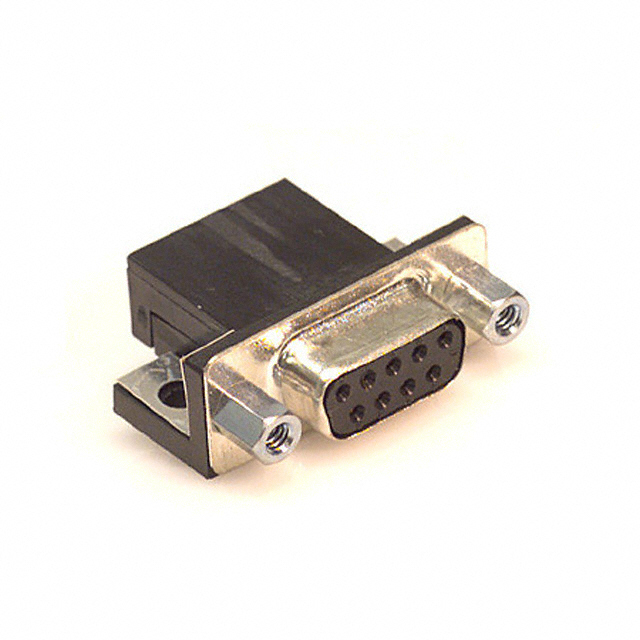

CONN D-SUB RCPT 9POS R/A SLDR
| Part | Dielectric Material | Contact Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Flange Feature | Contact Finish | Features | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Backset Spacing | Backset Spacing | Connector Type | Material Flammability Rating | Contact Type | Current Rating (Amps) | Termination | Number of Positions | Number of Rows [custom] | Shell Material, Finish | Contact Finish Thickness | Connector Style | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Polyester Glass Filled | Phosphor Bronze | Black | -55 C | 105 ░C | Panel Mount Right Angle Through Hole | 4-40 Mating Side Female Screwlock | Gold | Ground Strap | 1 | DE E | 0.59 in | 14.99 mm | Receptacle Female Sockets | UL94 V-0 | Signal | 5 A | Solder | 9 | 2 | Metal Tin Plated | Flash | D-Sub | |
 NorComp Inc. | Polyester Glass Filled | Phosphor Bronze | Black | -55 C | 105 ░C | Panel Mount Right Angle Through Hole | Housing/Shell (Unthreaded) | Gold | Ground Strap | 1 | DE E | 0.59 in | 14.99 mm | Receptacle Female Sockets | UL94 V-0 | Signal | 5 A | Solder | 9 | 2 | Metal Tin Plated | Flash | D-Sub | |
 NorComp Inc. | Polyester Glass Filled | Phosphor Bronze | Black | -55 C | 105 ░C | Panel Mount Right Angle Through Hole | 4-40 Mating Side Female Screwlock | Gold | Ground Strap Grounding Indents | 1 | DE E | 0.59 in | 14.99 mm | Plug Male Pins | UL94 V-0 | Signal | 5 A | Solder | 9 | 2 | Metal Tin Plated | Flash | D-Sub | |
 NorComp Inc. | Polyester Glass Filled | Phosphor Bronze | Black | -55 C | 105 ░C | Panel Mount Right Angle Through Hole | Housing/Shell | Gold | Ground Strap | 1 | DE E | 0.59 in | 14.99 mm | Receptacle Female Sockets | UL94 V-0 | Signal | 5 A | Solder | 9 | 2 | Metal Tin Plated | Flash | D-Sub | 4-40 |
 NorComp Inc. | Polyester Glass Filled | Phosphor Bronze | Black | -55 C | 105 ░C | Panel Mount Right Angle Through Hole | Housing/Shell | Gold | Ground Strap Grounding Indents | 1 | DE E | 0.59 in | 14.99 mm | Plug Male Pins | UL94 V-0 | Signal | 5 A | Solder | 9 | 2 | Metal Tin Plated | Flash | D-Sub | 4-40 |
 NorComp Inc. | Polyester Glass Filled | Phosphor Bronze | Black | -55 C | 105 ░C | Panel Mount Right Angle Through Hole | 4-40 Mating Side Female Screwlock | Gold | Board Lock Ground Strap Grounding Indents | 1 | DE E | 0.59 in | 14.99 mm | Plug Male Pins | UL94 V-0 | Signal | 5 A | Solder | 9 | 2 | Metal Tin Plated | Flash | D-Sub | |
NorComp Inc. | Polyester Glass Filled | Phosphor Bronze | Black | -55 C | 105 ░C | Panel Mount Right Angle Through Hole | 4-40 Mating Side Female Screwlock | Gold | Board Lock Ground Strap | 1 | DE E | 0.59 in | 14.99 mm | Receptacle Female Sockets | UL94 V-0 | Signal | 5 A | Solder | 9 | 2 | Metal Tin Plated | Flash | D-Sub |
