ICM-6 Series
Manufacturer: Adam Tech
Beta
⌘K

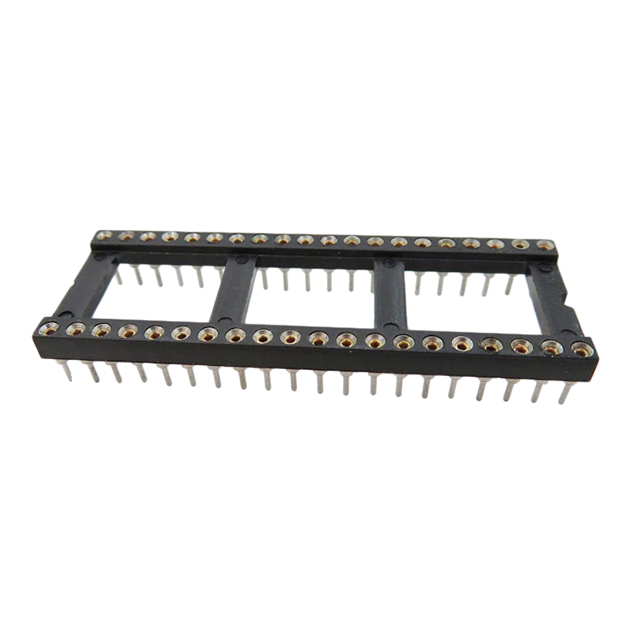

MACHINE PIN SOCKET, IC, DIP, 40P
| Part | Termination Post Length | Termination Post Length | Current Rating (Amps) | Contact Resistance | Material Flammability Rating | Number of Positions or Pins (Grid) | Type [custom] | Type [custom] | Type | Pitch - Post | Pitch - Post | Mounting Type | Contact Finish Thickness - Mating | Pitch - Mating | Pitch - Mating | Termination | Features | Contact Finish - Post | Contact Material - Mating | Contact Finish - Mating | Contact Material - Post | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | 0.11 in | 2.78 mm | 3 A | 4 mOhm | UL94 V-0 | 40 | 15.24 mm | 0.6 in | DIP | 0.1 in | 2.54 mm | Through Hole | Flash | 0.1 " | 2.54 mm | Solder | Open Frame | Tin | Beryllium Copper | Gold | Beryllium Copper | -40 C | 105 ░C |
