053015 Series

Manufacturer: Molex

Catalog

CONN SHROUDED HEADER (4 SIDES) HDR 12 POS 2MM SOLDER RA SIDE ENTRY THRU-HOLE MICROBLADE BAG

Part	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Connector Type	Pitch - Mating [x]	Pitch - Mating [x]	Fastening Type	Number of Positions	Material Flammability Rating	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Material	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Shrouding	Number of Positions Loaded	Insulation Material	Contact Shape	Termination	Applications	Contact Type	Insulation Color	Number of Rows	Style
Molex 0530151210	Through Hole Right Angle	35.4 µin	0.9 µm	Tin	Header	0.079 in	2 mm	Detent Lock	12	UL94 V-0	0.122 in	3.1 mm	Phosphor Bronze	4.65 mm	0.183 in	3.5 mm	0.138 in	Shrouded - 4 Wall	All	Polyamide (PA66) Nylon 6/6 Glass Filled	Rectangular	Kinked Pin Solder	General Purpose Telecommunications	Male Blade	White	1	Board to Cable/Wire

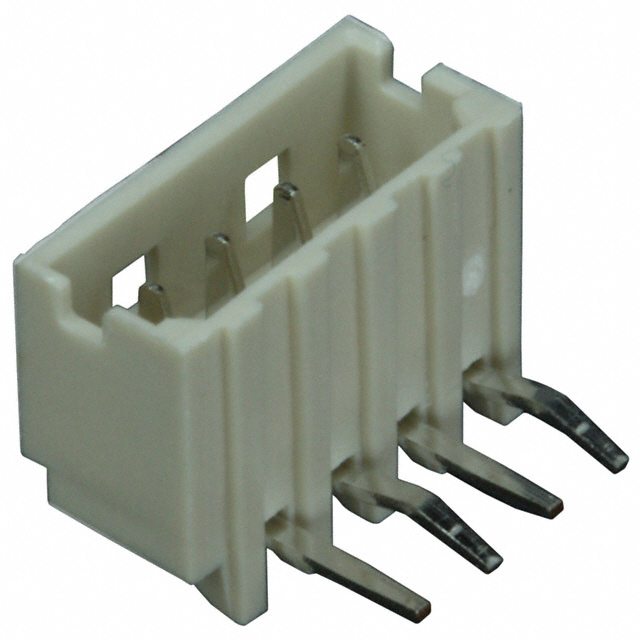

Molex 0530150410	Through Hole Right Angle	35.4 µin	0.9 µm	Tin	Header	0.079 in	2 mm	Detent Lock	4	UL94 V-0	0.122 in	3.1 mm	Phosphor Bronze	4.65 mm	0.183 in	3.5 mm	0.138 in	Shrouded - 4 Wall	All	Polyamide (PA66) Nylon 6/6 Glass Filled	Rectangular	Kinked Pin Solder	General Purpose Telecommunications	Male Blade	White	1	Board to Cable/Wire

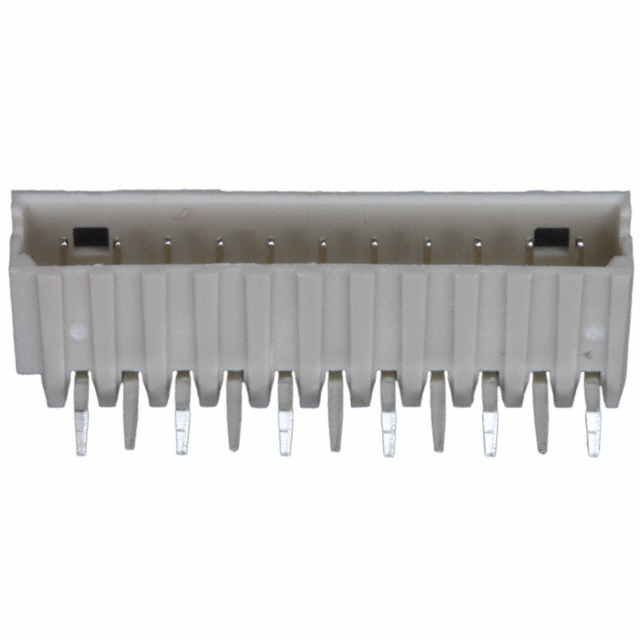

Molex 0530151110	Through Hole Right Angle	35.4 µin	0.9 µm	Tin	Header	0.079 in	2 mm	Detent Lock	11	UL94 V-0	0.122 in	3.1 mm	Phosphor Bronze	4.65 mm	0.183 in	3.5 mm	0.138 in	Shrouded - 4 Wall	All	Polyamide (PA66) Nylon 6/6 Glass Filled	Rectangular	Press-Fit Solder	General Purpose Telecommunications	Male Blade	White	1	Board to Cable/Wire

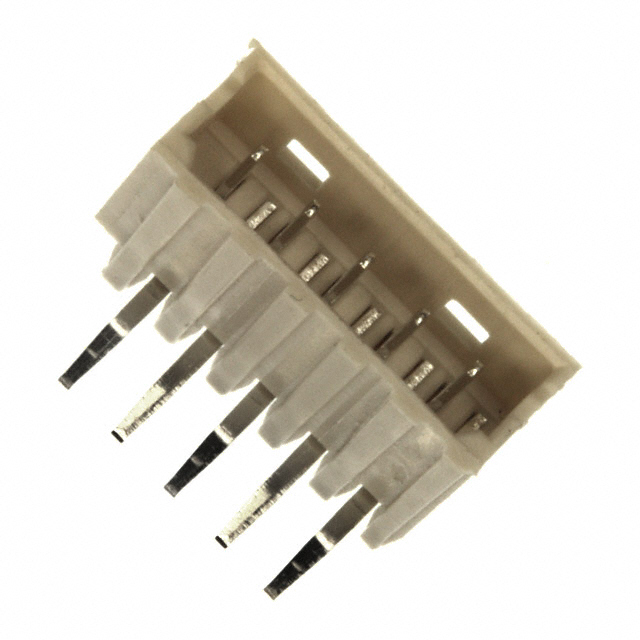

Molex 0530150510	Through Hole Right Angle	35.4 µin	0.9 µm	Tin	Header	0.079 in	2 mm	Detent Lock		UL94 V-0	0.122 in	3.1 mm	Phosphor Bronze	4.65 mm	0.183 in	3.5 mm	0.138 in	Shrouded - 4 Wall	All	Polyamide (PA66) Nylon 6/6 Glass Filled	Rectangular	Kinked Pin Solder	General Purpose Telecommunications	Male Blade	White	1	Board to Cable/Wire

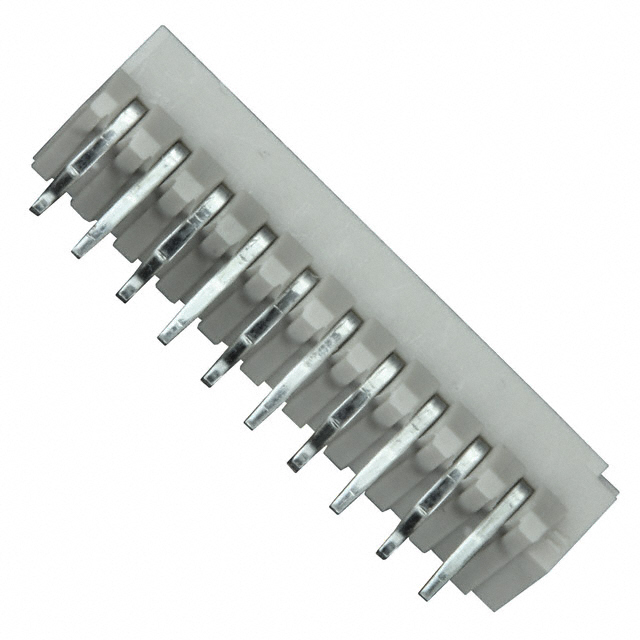

Molex 0530151010	Through Hole Right Angle	35.4 µin	0.9 µm	Tin	Header	0.079 in	2 mm	Detent Lock	10	UL94 V-0	0.122 in	3.1 mm	Phosphor Bronze	4.65 mm	0.183 in	3.5 mm	0.138 in	Shrouded - 4 Wall	All	Polyamide (PA66) Nylon 6/6 Glass Filled	Rectangular	Kinked Pin Solder	General Purpose Telecommunications	Male Blade	White	1	Board to Cable/Wire

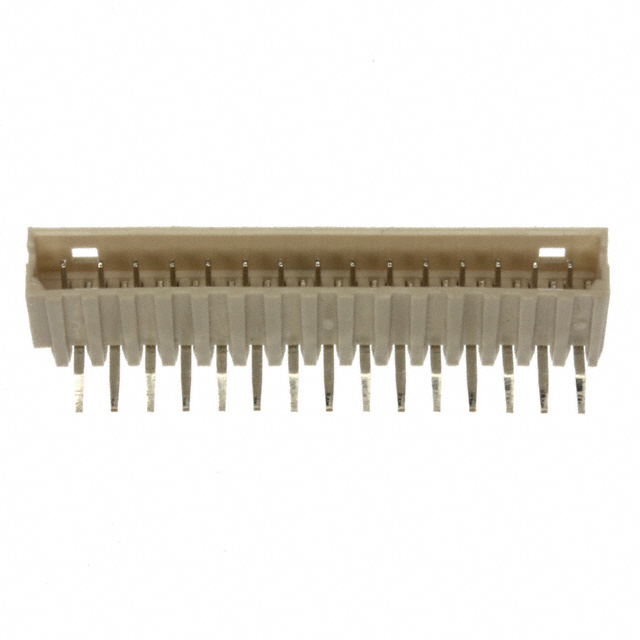

Molex 0530151510	Through Hole Right Angle	35.4 µin	0.9 µm	Tin	Header	0.079 in	2 mm	Detent Lock	15	UL94 V-0	0.122 in	3.1 mm	Phosphor Bronze	4.65 mm	0.183 in	3.5 mm	0.138 in	Shrouded - 4 Wall	All	Polyamide (PA66) Nylon 6/6 Glass Filled	Rectangular	Press-Fit Solder	General Purpose Telecommunications	Male Blade	White	1	Board to Cable/Wire

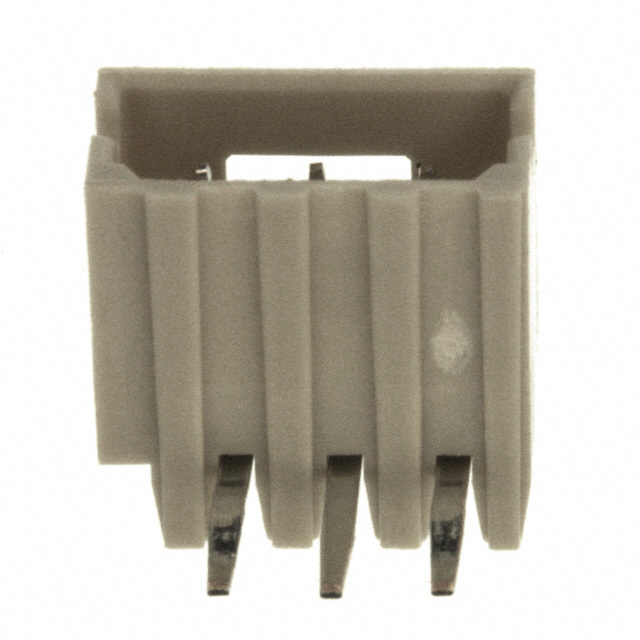

Molex 0530150310	Through Hole Right Angle	35.4 µin	0.9 µm	Tin	Header	0.079 in	2 mm	Detent Lock		UL94 V-0	0.122 in	3.1 mm	Phosphor Bronze	4.65 mm	0.183 in	3.5 mm	0.138 in	Shrouded - 4 Wall	All	Polyamide (PA66) Nylon 6/6 Glass Filled	Rectangular	Kinked Pin Solder	General Purpose Telecommunications	Male Blade	White	1	Board to Cable/Wire

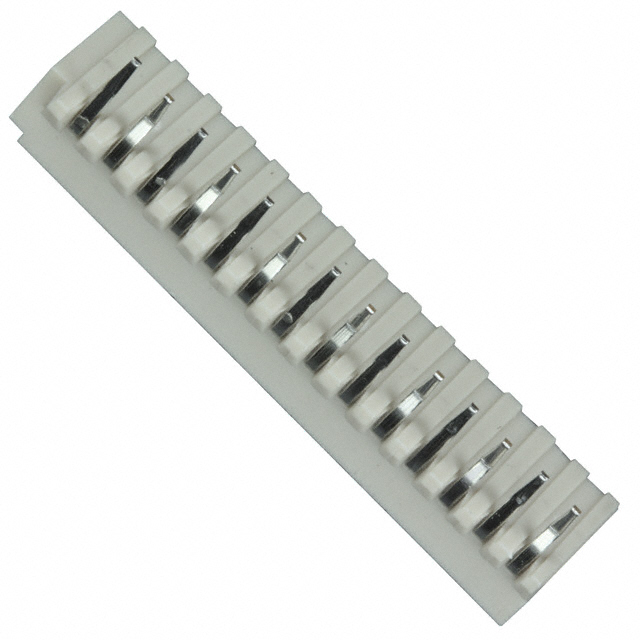

Molex 0530151410	Through Hole Right Angle	35.4 µin	0.9 µm	Tin	Header	0.079 in	2 mm	Detent Lock	14	UL94 V-0	0.122 in	3.1 mm	Phosphor Bronze	4.65 mm	0.183 in	3.5 mm	0.138 in	Shrouded - 4 Wall	All	Polyamide (PA66) Nylon 6/6 Glass Filled	Rectangular	Kinked Pin Solder	General Purpose Telecommunications	Male Blade	White	1	Board to Cable/Wire
Molex 0530150910	Through Hole Right Angle	35.4 µin	0.9 µm	Tin	Header	0.079 in	2 mm	Detent Lock	9	UL94 V-0	0.122 in	3.1 mm	Phosphor Bronze	4.65 mm	0.183 in	3.5 mm	0.138 in	Shrouded - 4 Wall	All	Polyamide (PA66) Nylon 6/6 Glass Filled	Rectangular	Kinked Pin Solder	General Purpose Telecommunications	Male Blade	White	1	Board to Cable/Wire
Molex 0530150610	Through Hole Right Angle	35.4 µin	0.9 µm	Tin	Header	0.079 in	2 mm	Detent Lock	6	UL94 V-0	0.122 in	3.1 mm	Phosphor Bronze	4.65 mm	0.183 in	3.5 mm	0.138 in	Shrouded - 4 Wall	All	Polyamide (PA66) Nylon 6/6 Glass Filled	Rectangular	Kinked Pin Solder	General Purpose Telecommunications	Male Blade	White	1	Board to Cable/Wire
