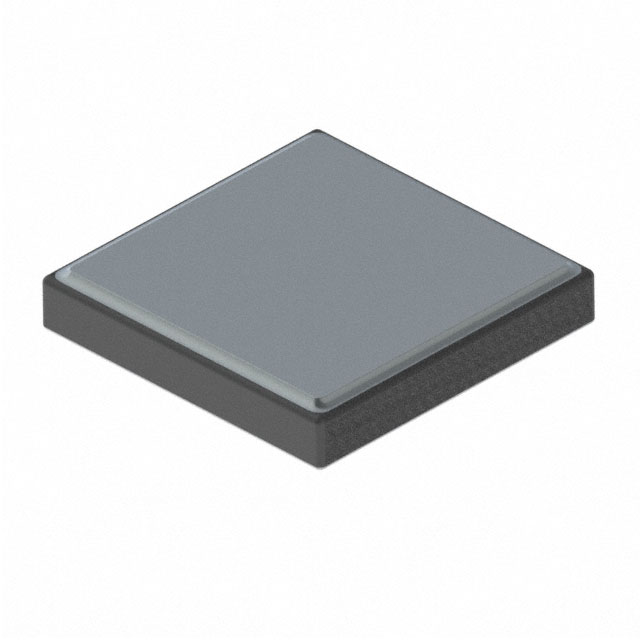

SD060 Series

Catalog

DIODE SCHOTTKY 45V 3A DIE

Part	Mounting Type	Speed	Current - Reverse Leakage @ Vr	Package / Case	Technology	Supplier Device Package	Capacitance @ Vr, F	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Voltage - Forward (Vf) (Max) @ If [Max]
SMC Diode Solutions SD060SE45B.T1	Surface Mount	200 mA 500 ns	300 µA	Die	Schottky	Die	180 pF	3 A	510 mV	45 V	-55 °C	125 °C
SMC Diode Solutions SD060SC200A.T	Surface Mount	200 mA 500 ns	70 µA	Die	Schottky	Die	60 pF	3 A		200 V		200 C	920 mV
SMC Diode Solutions SD060SA30A.T1	Surface Mount	200 mA 500 ns	400 µA	Die	Schottky	Die	220 pF	3 A		30 V	-55 °C	150 °C	490 mV
SMC Diode Solutions SD060SE45B.T	Surface Mount	200 mA 500 ns	300 µA	Die	Schottky	Die	180 pF	3 A	510 mV	45 V	-55 °C	125 °C
SMC Diode Solutions SD060SA30A.T	Surface Mount	200 mA 500 ns	400 µA	Die	Schottky	Die	220 pF	3 A		30 V		150 °C	490 mV
SMC Diode Solutions SD060SC200A.T1	Surface Mount	200 mA 500 ns	70 µA	Die	Schottky	Die	60 pF	3 A		200 V	-55 °C	200 C	920 mV
SMC Diode Solutions SD060SE45B.T2	Surface Mount	200 mA 500 ns	300 µA	Die	Schottky	Die	180 pF	3 A	510 mV	45 V	-55 °C	125 °C
SMC Diode Solutions SD060SA30A.T2	Surface Mount	200 mA 500 ns	400 µA	Die	Schottky	Die	220 pF	3 A		30 V	-55 °C	150 °C	490 mV
SMC Diode Solutions SD060SC200A.T2	Surface Mount	200 mA 500 ns	70 µA	Die	Schottky	Die	60 pF	3 A		200 V	-55 °C	200 C	920 mV
