1445095 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER SMD 2POS 3MM

Part	Shrouding	Contact Finish - Mating	Termination	Number of Positions Loaded	Insulation Color	Style	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Fastening Type	Insulation Material	Contact Finish - Post	Applications	Number of Rows	Features	Number of Positions	Contact Material	Connector Type	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Insulation Height [z]	Insulation Height [z]	Contact Type	Voltage Rating	Material Flammability Rating
TE Connectivity AMP Connectors 1445095-2	Shrouded - 4 Wall	Gold	Solder	All	Black	Board to Cable/Wire	Square	0.76 Ám	30 Áin	3 mm	0.118 in	Locking Ramp	Nylon Polyamide (PA)	Tin-Lead	General Purpose	1	Board Lock Pick and Place	2	Brass	Header	Varies by Wire Gauge	-40 C	105 ░C	2.54 µm	100 µin	Surface Mount	9.25 mm	0.364 in	Male Pin	250 V	UL94 V-0

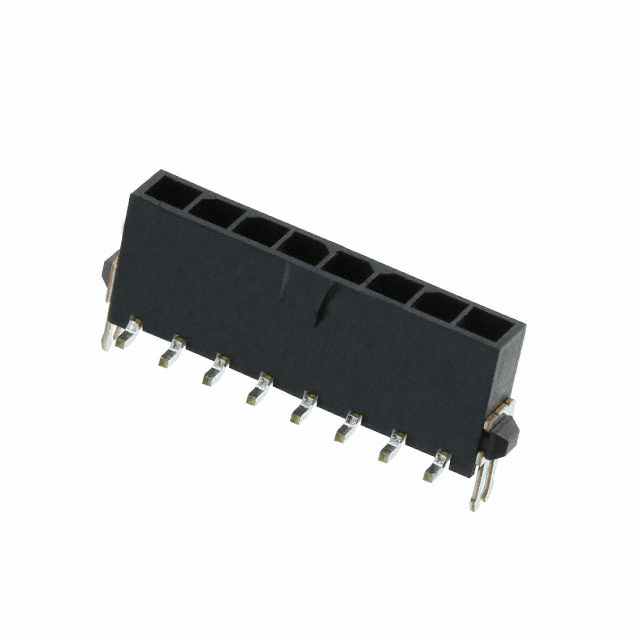

TE Connectivity AMP Connectors 1445095-8	Shrouded - 4 Wall	Gold	Solder	All	Black	Board to Cable/Wire	Square	0.76 Ám	30 Áin	3 mm	0.118 in	Locking Ramp	Nylon Polyamide (PA)	Tin-Lead	General Purpose	1	Board Lock Pick and Place	8	Brass	Header	Varies by Wire Gauge	-40 C	105 ░C	2.54 µm	100 µin	Surface Mount	9.25 mm	0.364 in	Male Pin	250 V	UL94 V-0

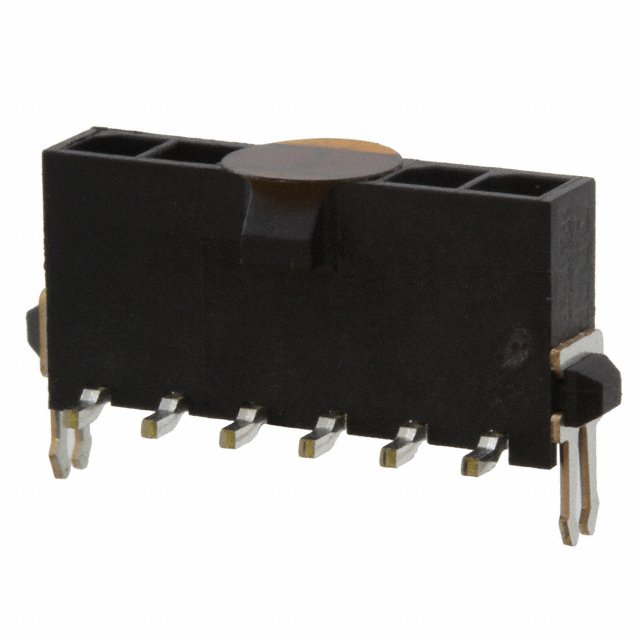

TE Connectivity AMP Connectors 2-1445095-6	Shrouded - 4 Wall	Gold	Solder	All	Black	Board to Cable/Wire	Square	0.76 Ám	30 Áin	3 mm	0.118 in	Locking Ramp	Nylon Polyamide (PA)	Tin	General Purpose	1	Board Lock Pick and Place	6	Brass	Header	Varies by Wire Gauge	-40 C	105 ░C	2.54 µm	100 µin	Surface Mount	9.25 mm	0.364 in	Male Pin	250 V	UL94 V-0
TE Connectivity AMP Connectors 1-1445095-2	Shrouded - 4 Wall	Gold	Solder	All	Black	Board to Cable/Wire	Square	0.76 Ám	30 Áin	3 mm	0.118 in	Locking Ramp	Nylon Polyamide (PA)	Tin-Lead	General Purpose	1	Board Lock Pick and Place	12	Brass	Header	Varies by Wire Gauge	-40 C	105 ░C	2.54 µm	100 µin	Surface Mount	9.25 mm	0.364 in	Male Pin	250 V	UL94 V-0

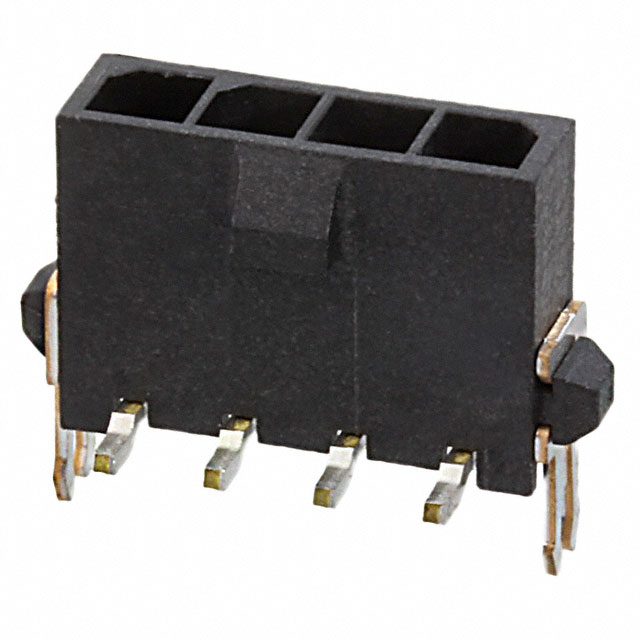

TE Connectivity AMP Connectors 2-1445095-4	Shrouded - 4 Wall	Gold	Solder	All	Black	Board to Cable/Wire	Square	0.76 Ám	30 Áin	3 mm	0.118 in	Locking Ramp	Nylon Polyamide (PA)	Tin	General Purpose	1	Board Lock Pick and Place	4	Brass	Header	Varies by Wire Gauge	-40 C	105 ░C	2.54 µm	100 µin	Surface Mount	9.25 mm	0.364 in	Male Pin	250 V	UL94 V-0
