SML-LX15 Series

Manufacturer: Lumex Opto/Components Inc.

Catalog

LED RED/YLW CLEAR SOT23 SMD

Part	Configuration	Size / Dimension [x]	Size / Dimension [y]	Lens Style	Lens Color	Millicandela Rating	Height (Max) [z]	Supplier Device Package	Viewing Angle	Color	Voltage - Forward (Vf) (Typ)	Lens Size [y]	Lens Size [x]	Lens Transparency	Mounting Type	Current - Test	Package / Case	Wavelength - Peak	Current - Test [custom]	Current - Test [custom]
Lumex Opto/Components Inc. SML-LX15IYC-TR	Common Anode	3 mm	3 mm	Rectangle with Flat Top	Colorless	10 mcd 10 mcd	1 mm	SOT-23	140 °	Red Yellow	2 V 2.1 V	3 mm	2 mm	Clear	Surface Mount	20 mA 20 mA	3-SMD SC-59 SOT-23-3 variant TO-236	585 nm 635 nm
Lumex Opto/Components Inc. SML-LX15SUGC-RP-TR	Standard	3 mm	3 mm	Rectangle with Flat Top	Colorless	45 mcd	1 mm	SOT-23	140 °	Green	2.2 V	3 mm	2 mm	Clear	Surface Mount	20 mA	3-SMD SC-59 SOT-23-3 variant TO-236
Lumex Opto/Components Inc. SML-LX15IGC-TR	Common Anode	3 mm	3 mm	Rectangle with Flat Top	Colorless	10 mcd 10 mcd	1 mm	SOT-23	140 °	Green Red	2 V 2.1 V	3 mm	2 mm	Clear	Surface Mount		3-SMD SC-59 SOT-23-3 variant TO-236	565 nm 635 nm	20 mA	20 mA
Lumex Opto/Components Inc. SML-LX15GGC-RP-TR	Standard	3 mm	3 mm	Rectangle with Flat Top	Colorless	10 mcd	1 mm	SOT-23	140 °	Green	2.2 V	3 mm	2 mm	Clear	Surface Mount	20 mA	3-SMD SC-59 SOT-23-3 variant TO-236	565 nm
Lumex Opto/Components Inc. SML-LX15SIC-RP-TR	Standard	3 mm	3 mm	Rectangle with Flat Top	Colorless	60 mcd	1 mm	SOT-23	140 °	Red	2 V	3 mm	2 mm	Clear	Surface Mount	20 mA	3-SMD SC-59 SOT-23-3 variant TO-236	636 nm
Lumex Opto/Components Inc. SML-LX15IC-TR	Standard	3 mm	3 mm	Rectangle with Flat Top	Colorless	10 mcd	1 mm	SOT-23	140 °	Red	2 V	3 mm	2 mm	Clear	Surface Mount	20 mA	3-SMD SC-59 SOT-23-3 variant TO-236	635 nm
Lumex Opto/Components Inc. SML-LX15YGC-TR	Common Anode	3 mm	3 mm	Rectangle with Flat Top	Colorless	10 mcd 10 mcd	1 mm	SOT-23	140 °	Green Yellow	2.1 V 2.2 V	3 mm	2 mm	Clear	Surface Mount	20 mA 20 mA	3-SMD SC-59 SOT-23-3 variant TO-236	565 nm 585 nm
Lumex Opto/Components Inc. SML-LX15GC-TR	Standard	3 mm	3 mm	Rectangle with Flat Top	Colorless	10 mcd	1 mm	SOT-23	140 °	Green	2.2 V	3 mm	2 mm	Clear	Surface Mount	20 mA	3-SMD SC-59 SOT-23-3 variant TO-236	565 nm

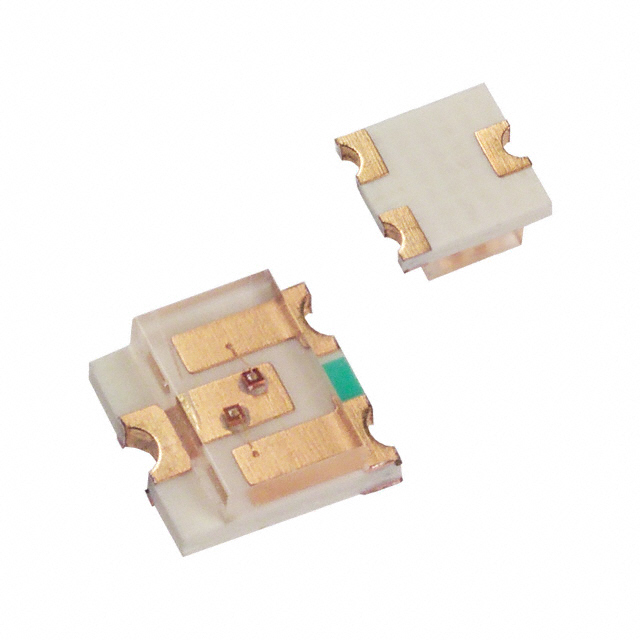

Lumex Opto/Components Inc. SML-LX15YGC-RP-TR	Common Cathode	3 mm	3 mm	Rectangle with Flat Top	Colorless	10 mcd 10 mcd	1 mm	SOT-23	140 °	Green Yellow	2.1 V 2.2 V	3 mm	2 mm	Clear	Surface Mount	20 mA 20 mA	3-SMD SC-59 SOT-23-3 variant TO-236	565 nm 585 nm
Lumex Opto/Components Inc. SML-LX15YC-TR	Standard	3 mm	3 mm	Rectangle with Flat Top	Colorless	10 mcd	1 mm	SOT-23	140 °	Yellow	2.1 V	3 mm	2 mm	Clear	Surface Mount	20 mA	3-SMD SC-59 SOT-23-3 variant TO-236	585 nm
